Product Description:

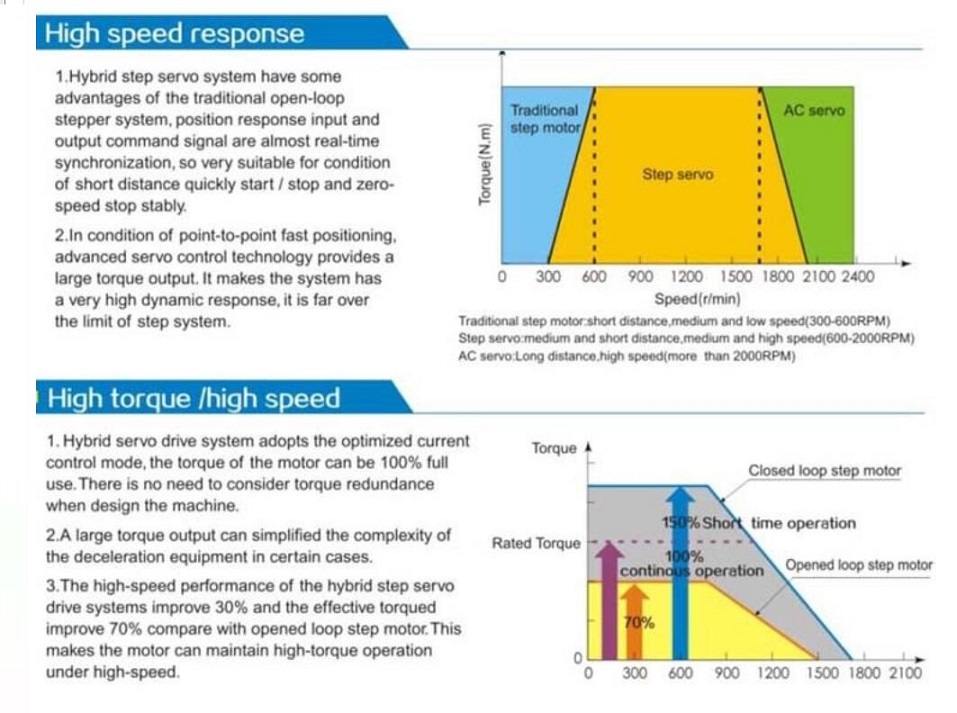

- 2HBS Hybrid stepper servo drive system integrated servo control technology into the digital step driver.It adopts typical trricyclic control method which include current loop,speed loop and position loop.
- This product has the advantage of both step and servo system,is a highly cost-effective motion control products.

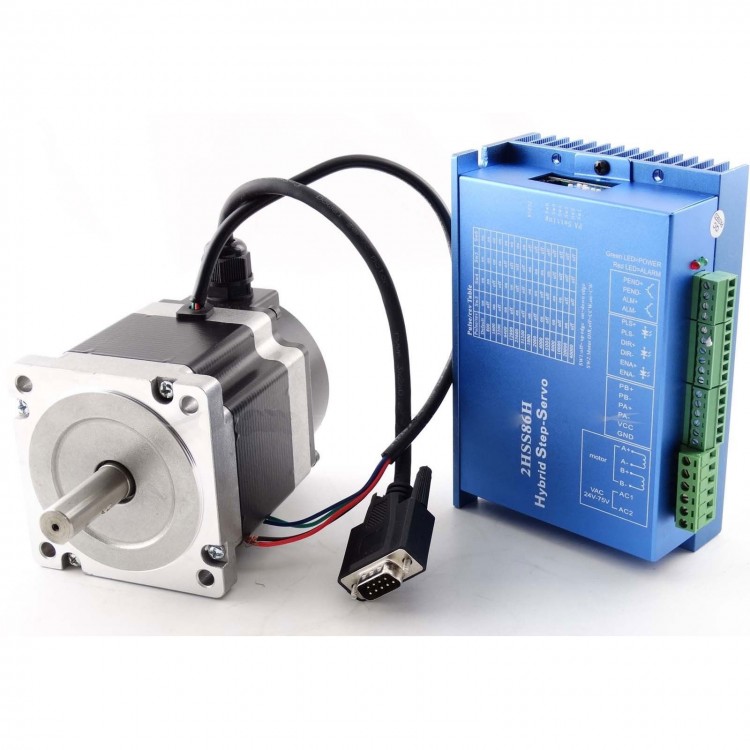

Step Servo Driver:
- Model: 2HSS86H
- Current(A): 0-7A
- Voltage(V): DC(24-110V),AC(60-75V)
- Matched motor: NEMA 23,34,43
- Weight(KG): 0.6
- Demension(mm): 150x97x48
- Control signal: differential

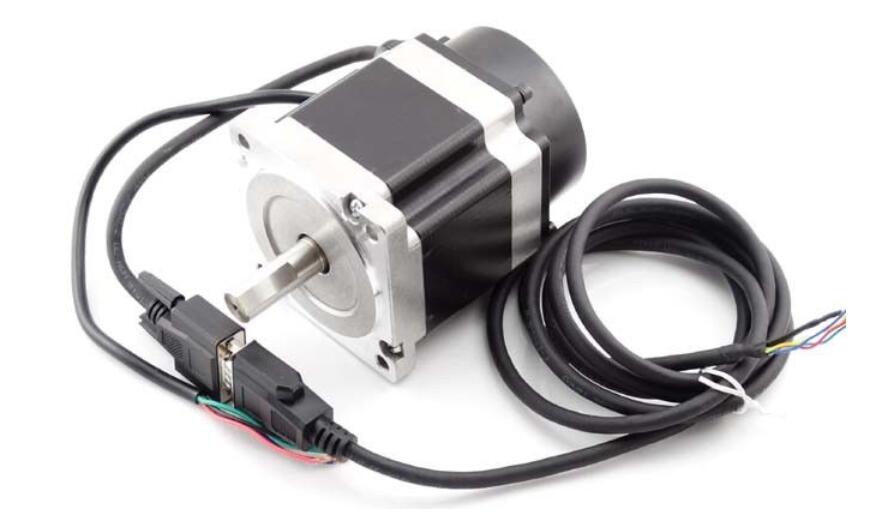

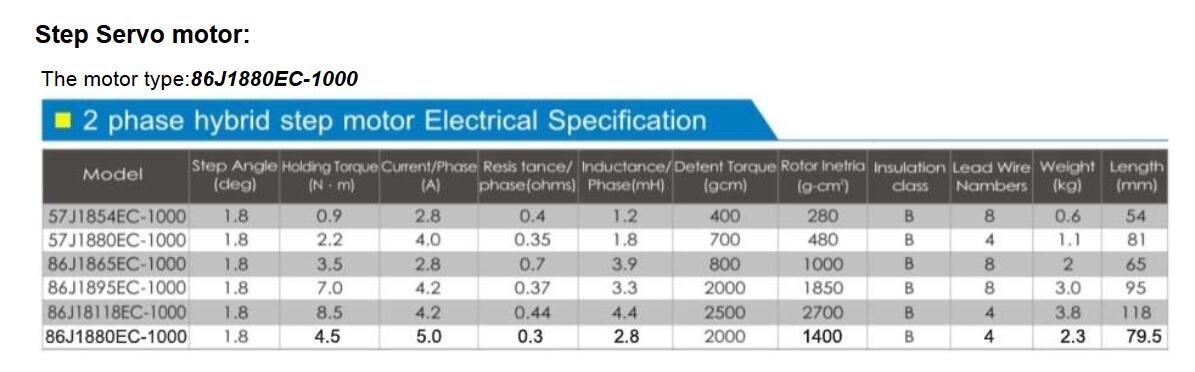

Step Servo motor:
- The motor type:86J1880EC-1000
- Step angle(deg):1.8
- Holding torque(N.m):4.5
- Current/Phase(A):5.0
- Resistance/phase(ohms):0.3
- Inductance/phase(mH):2.8
- Detent Torque(gcm):2000
- Rotor inetria(g.cm):1400
- Insulation class:B
- Lead wire nambers:4
- Weight(kg):2.3
- Length(mm):79.5
Package List:
- 1 x Step Servo Driver
- 1 x Step Servo motor 4.5N.M
- 1 x Connect cable
- 1 x RS232 cable
