CNC Plasma Torch Holder Lifter 2400mm/min Stroke 100mm For CNC Plasma Cutting Machine

CNC Plasma Torch Holder Lifter 2400mm/min Stroke 100mm For CNC Plasma Cutting Machine

Description:

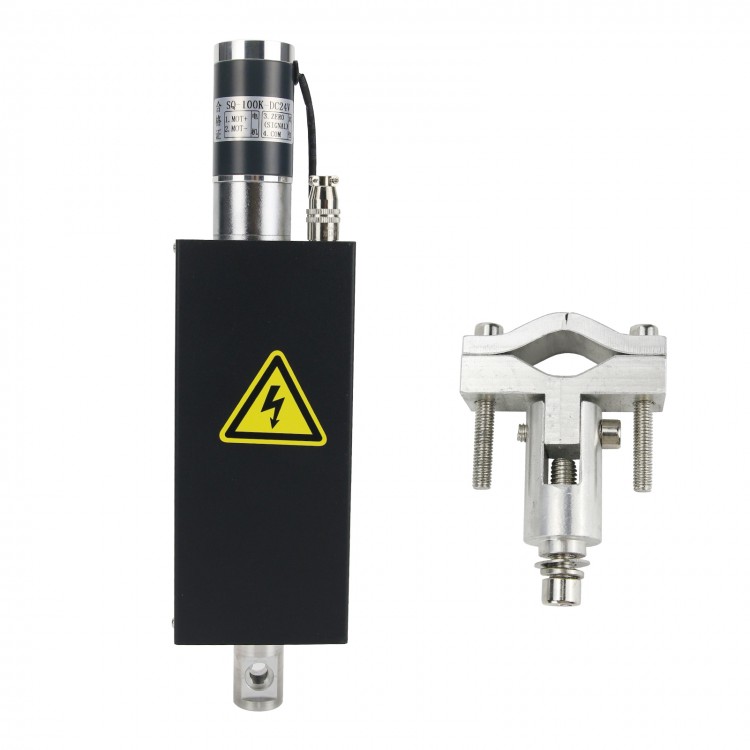

The lifting device of cutting machine equipment is of top quality in the industry. The lifting body uses a decelerating DC motor to drive the cutting torch up and down. Among them, the key parts that affect the cutting accuracy of the whole machine support the positioning function of CNC plasma cutting machine.

The internal lifting drive of the elevator adopts 304 stainless steel T-shaped screw, and the optical axis and linear slider are used at both ends to ensure smooth and reliable verticality in the up and down direction. It is used for ascending and descending transmission mechanism during plasma cutting. Made of aluminum with fine treatment, it features very high accuracy. The positioning switch and limit switch are made in Taiwan and have passed 3C certification and CE certification.

Definition of Aviation Plug:
- Pin 1: MOT + (motor)
- Pin 2: MOT- (Motor)
- Pin 3: Zero (SIGNAL) (positioning normally open signal output)
- Pin 4: COM (positioning normally open signal output)

Attention: The built-in limit is designed with reverse diode. No more troublesome wiring again and again.

Specifications:
- 304 stainless steel T screw
- With fixture (cutting torch range 12mm-38mm)
- CNC flame and plasma anti-collision function (optional)
- Plasma arc positioning function inside the lifting body
- The thickness of the main body aluminum plate and the upper and lower aluminum plates is 8mm.
- Four-core aviation plug
- Color: Black sprayed shell
- Working Stroke: 100mm
- Working Voltage: DC24V
- Weight: about 1.7 kg
- Load Capacity: 3 kg
- Size: 320 x 80 x 60mm (LxWxH)
- Installation Hole Spacing: 40mm

Package Included:
- 1 x Plasma Torch Holder with Fixture
