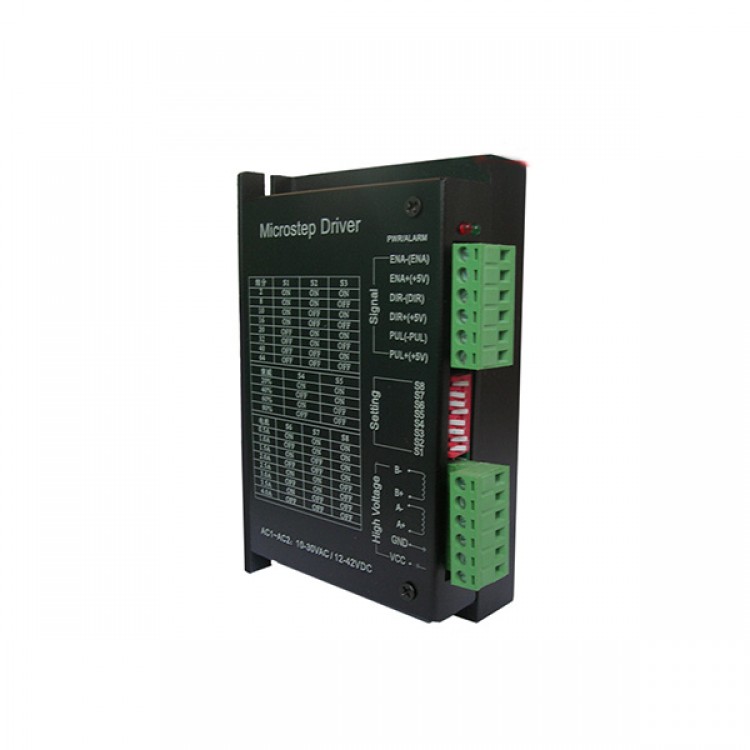

CNC Stepper Motor Driver 4A 42VDC 64 Microstep 2 Phase for 57 Stepping Motor
Description:
- HYQD30 - H0057 is a professional two-phase stepper motor drive, can achieve more accurate segmentation model and reversing control. With over temperature protection, over-current protection function. 8 through three dial the code switch selection control gear (2, 8, 10, 16, 20, 32, 40, 64), through the selection of three dial the code switch six-speed current control (0.5 A, 1 A, 1.5 A, 2 A, 2.5 A, 3 A, 3.5 A, 4 A). Suitable for driving 42, 57, 86 two phase, small four phase hybrid stepping motors
Features:
- Power supply :AC DC compatible
- Current chosen by dial the code switch
- Interface using high-speed optical coupling isolation
- 8 microstep adjustment
- Automatic Semi- flow
- High frequency interference resistance ability
- Max voltage:DC 50V
- Voltage:AC12-30V,DC15-42V
