CNC Stepper Motor Kit Nema42 42HS6480 Stepper Motor + Stepper Motor Driver DM2722A + Breakout Board
Package Included:
- 1 x Nema 42 Stepper Motor 4120 oz.in , 8.0A, 4 Leads, Bipolar
- 1 x Stepper Motor Driver DM2722A, Peak 9.8A, 200 Micsteps
- 1 x Breakout Board
Note: It requires no power supply for its input voltage of stepper motor driver is 110-220V AC.

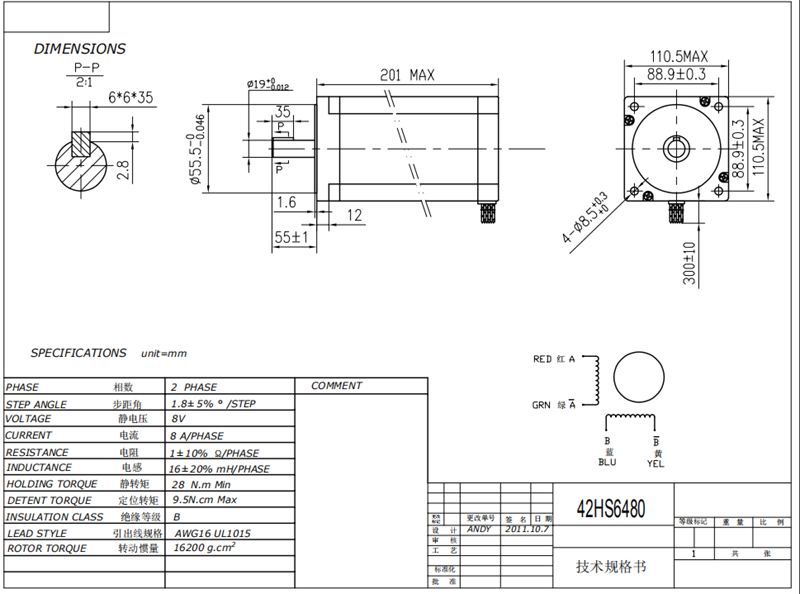

1. Nema 42 Stepper Motor
2. Stepper Motor Driver DM2722A
Features:
- High performance, low price
- 16 channels constant angle, constant torque micro steps, highest micro step: 60000ppr
- Highest response frequency: 200Kpps
- Current of winding will be reduced by approximately 50% when no step pulse command is received for 0.1 second
- Opto-isolated signal I/O
- Drive current is adjustable in 16 channels from 1.2A/phase to 7.0A/phase
- Single power supply from 110V to 220VAC
- Phase terminal memory function (motor phase terminal is memorized after input pulse train stopping 5s and it is recovered when stepper driver power on or signal MF changes from low level to high level)

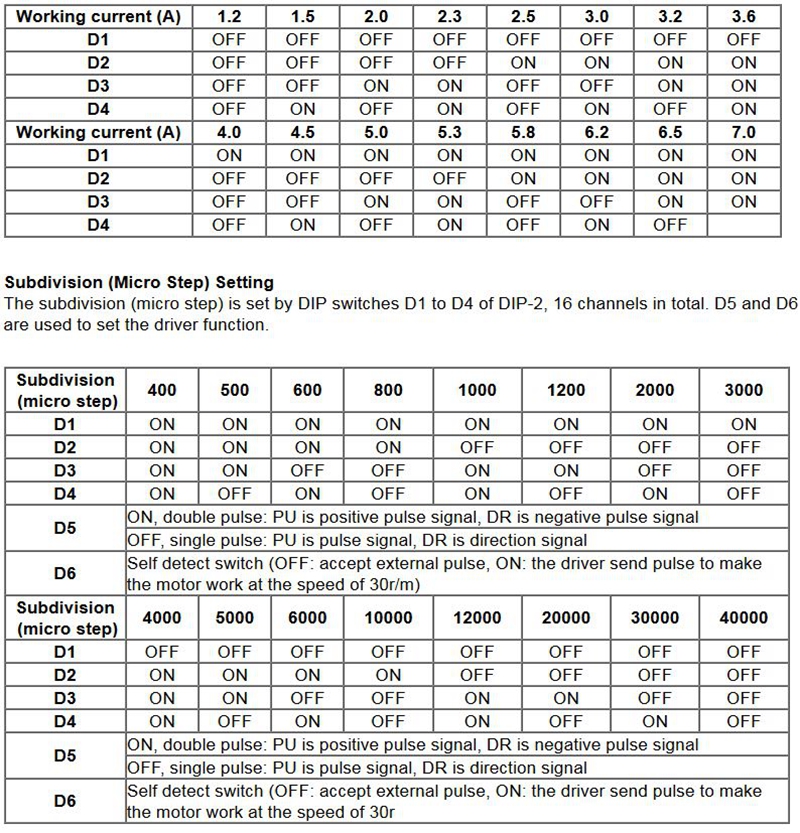

Current Setting:
Stepper driver working current is set by DIP-1 switches.

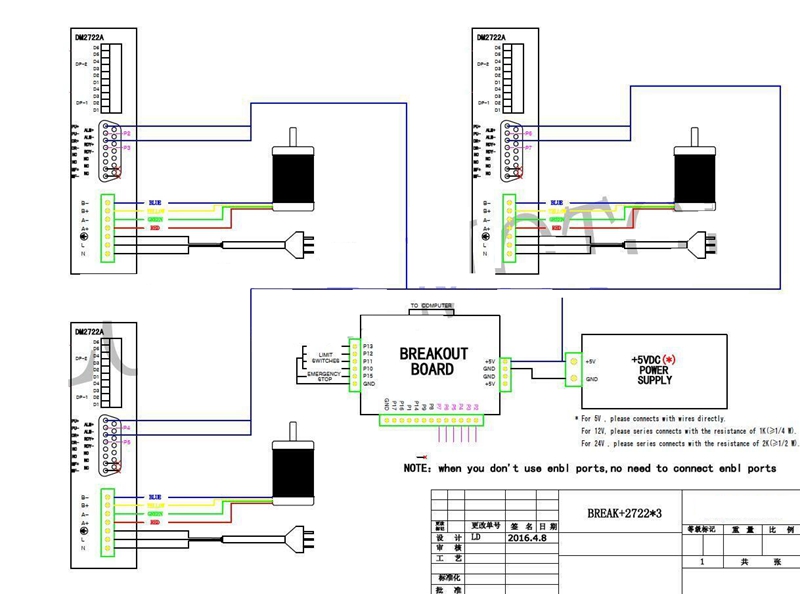

3. Breakout Board
Features:
- Built in DB25 male connector.
- DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
- DB25 Input Pin: P10,P11,P12,P13,P15.
- DB25 GND Pin: P18-P25.
- Power supply: +5V DC.
- Built in C-class Optical-coupler.
- High quality with Surface-mount Tech.
