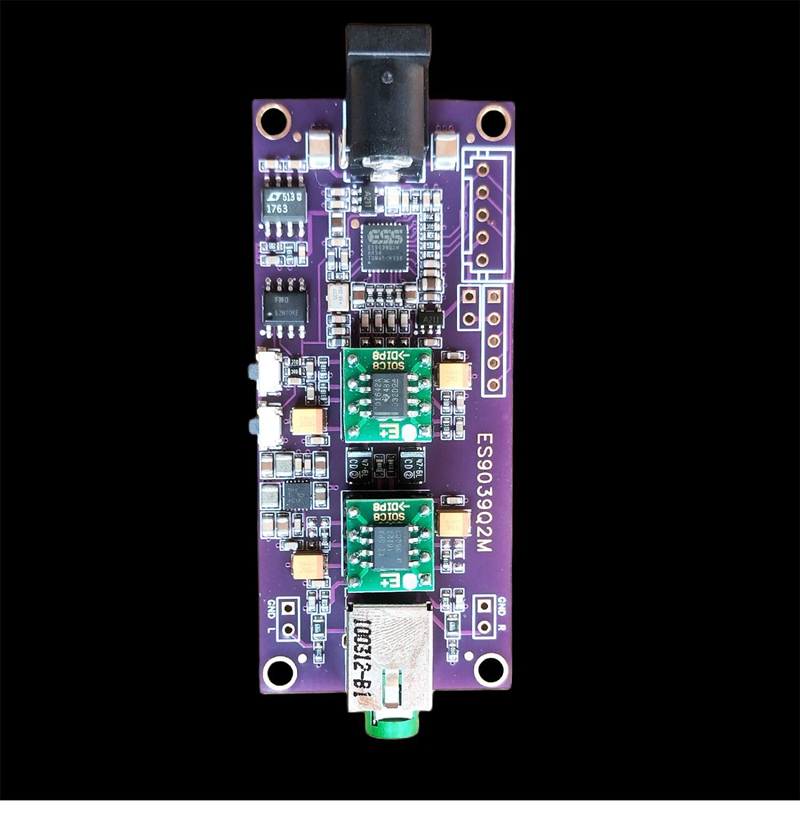

ES9039Q2M Decoder Board DC5V I2S Input Asynchronous USB Module (OPA1642+OPA1612 Operational Amplifiers)

$28.58
$28.58
Tax included. Shipping calculated at checkout.
Availability: 2000 in stock
SKU: 101769
Tags:
Collections:

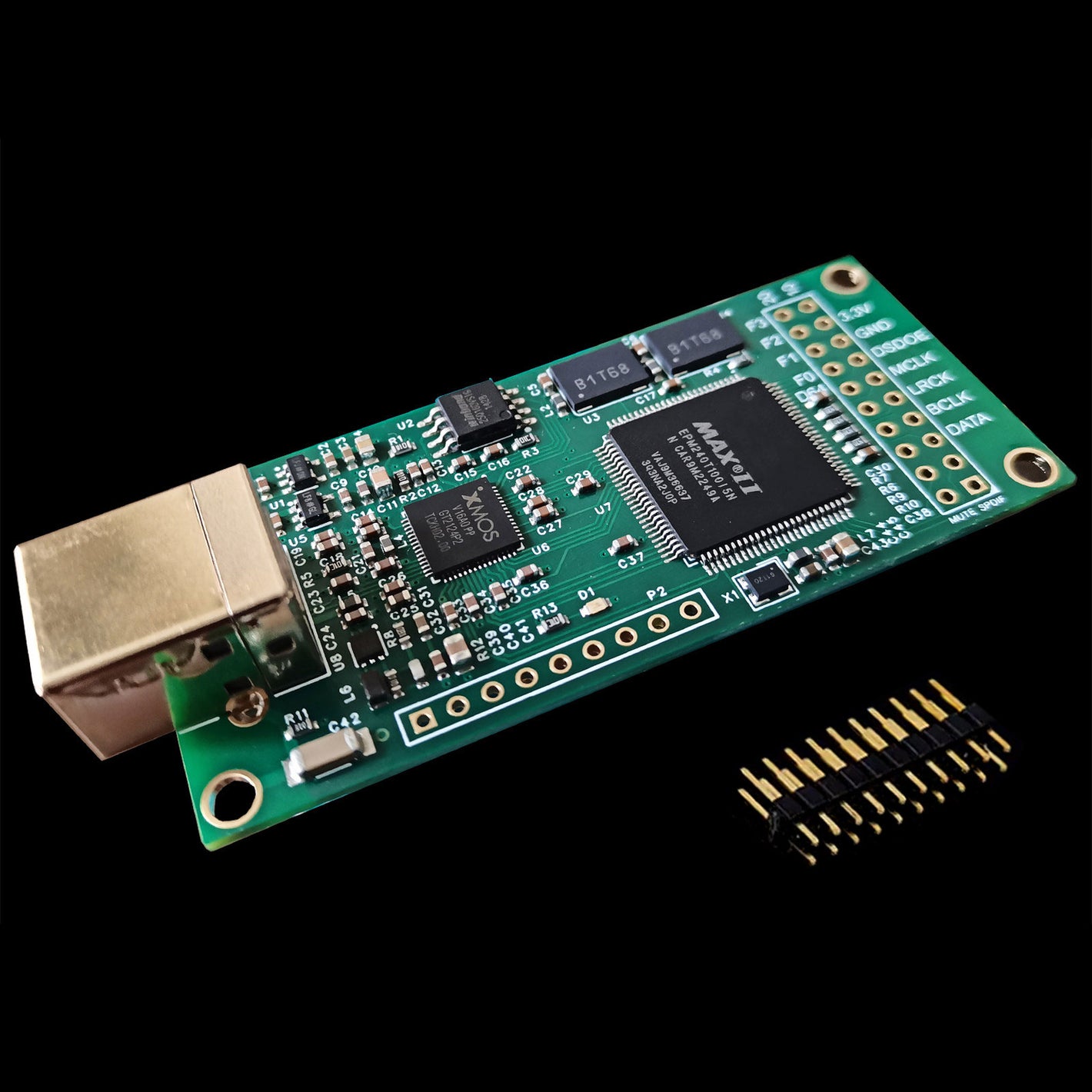

ThanksbuyerUSB Digital Interface Module XU316 + CPLD Logic Chip DSD512/PCM768 Support for WIN7/8/10 Compatible with Amanero
USB Digital Interface Module XU316 + CPLD Logic Chip DSD512/PCM768 Support for WIN7/8/10 Compatible with Amanero

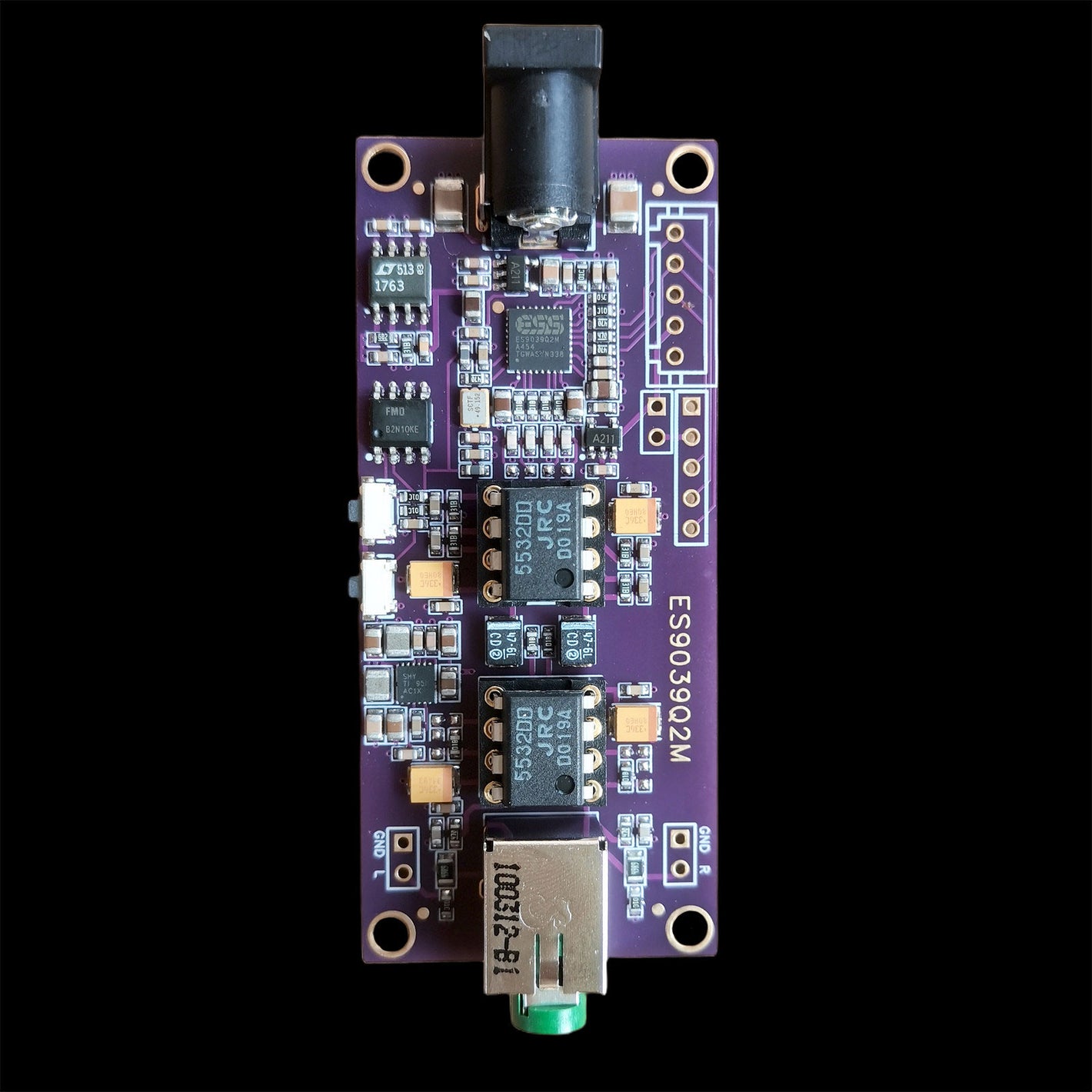

ES9039Q2M Decoder Board DC5V I2S Input Asynchronous USB Module (Dual 5532 Operational Amplifiers)
ThanksbuyerES9039Q2M Decoder Board DC5V I2S Input Asynchronous USB Module (Dual 5532 Operational Amplifiers)
$28.58
$28.58

Supported Sampling Rate:
- PCM: 16/24/32 bit 44.1/ 48/88.2/96/176.4/192/352.8/384/768KHz
- DSD: 64/128/256/512/1024

Specification:
- Power input: DC 5V-9V
- Signal input: I2S
- Output: 3.5mm earphone jack

Details Introduction:

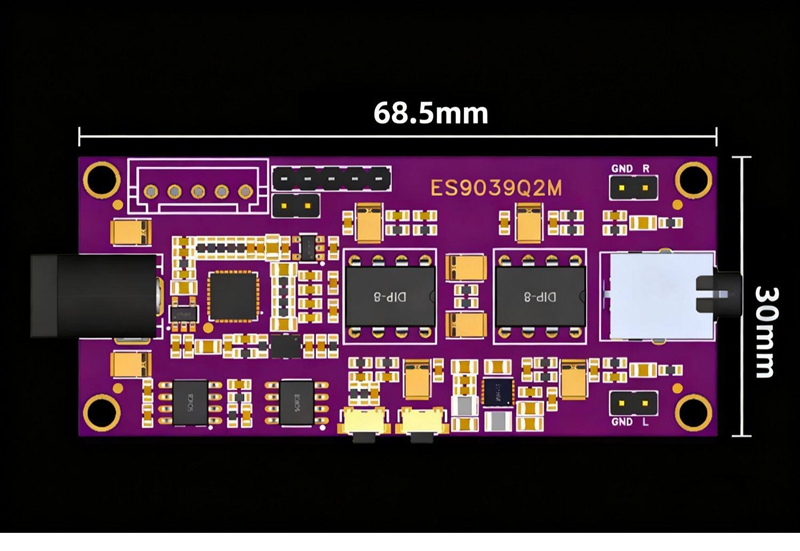

- The PCB adopts a double-layer immersion gold process design to ensure good passing performance of large and small currents, with dimensions of 30mm x 68.5mm.
- High-quality active crystal oscillator.
- We have our own developed program that fully optimizes the decoding chip, resulting in better signal integrity and less signal distortion.

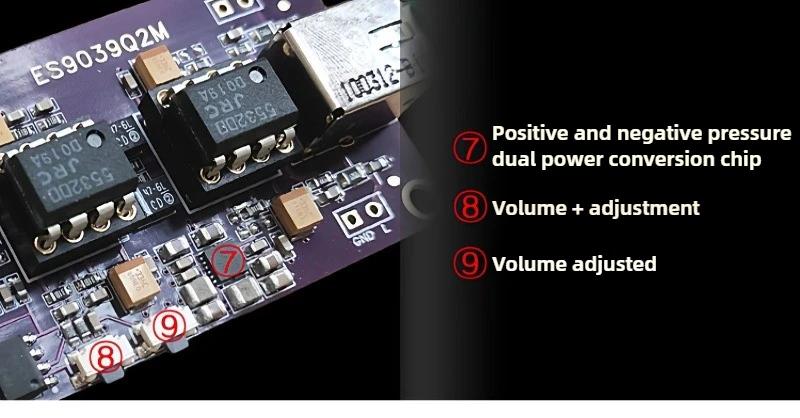

- Adopting dual operational amplifiers, the operational amplifiers are powered by positive and negative power sources.

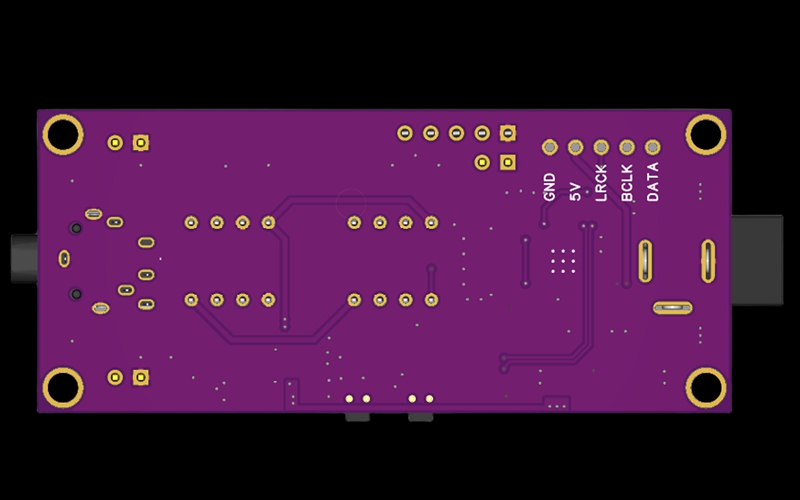

- The MCLK of ES9039Q2M has an independent clock of 49.152MHz, so only DATA BCK LRCK GND needs to be inputted.

Package Included:
- 1 x Decoder Board
