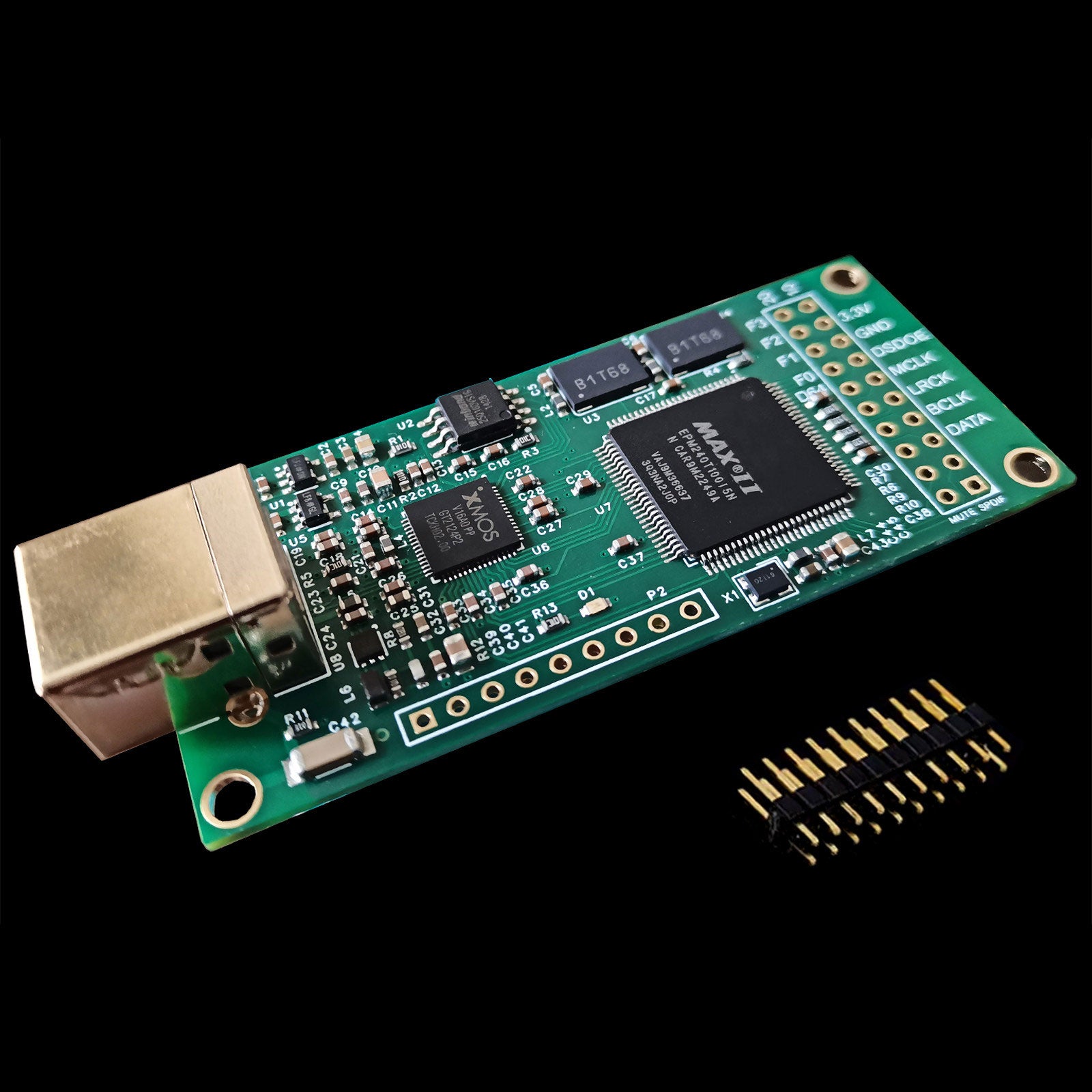

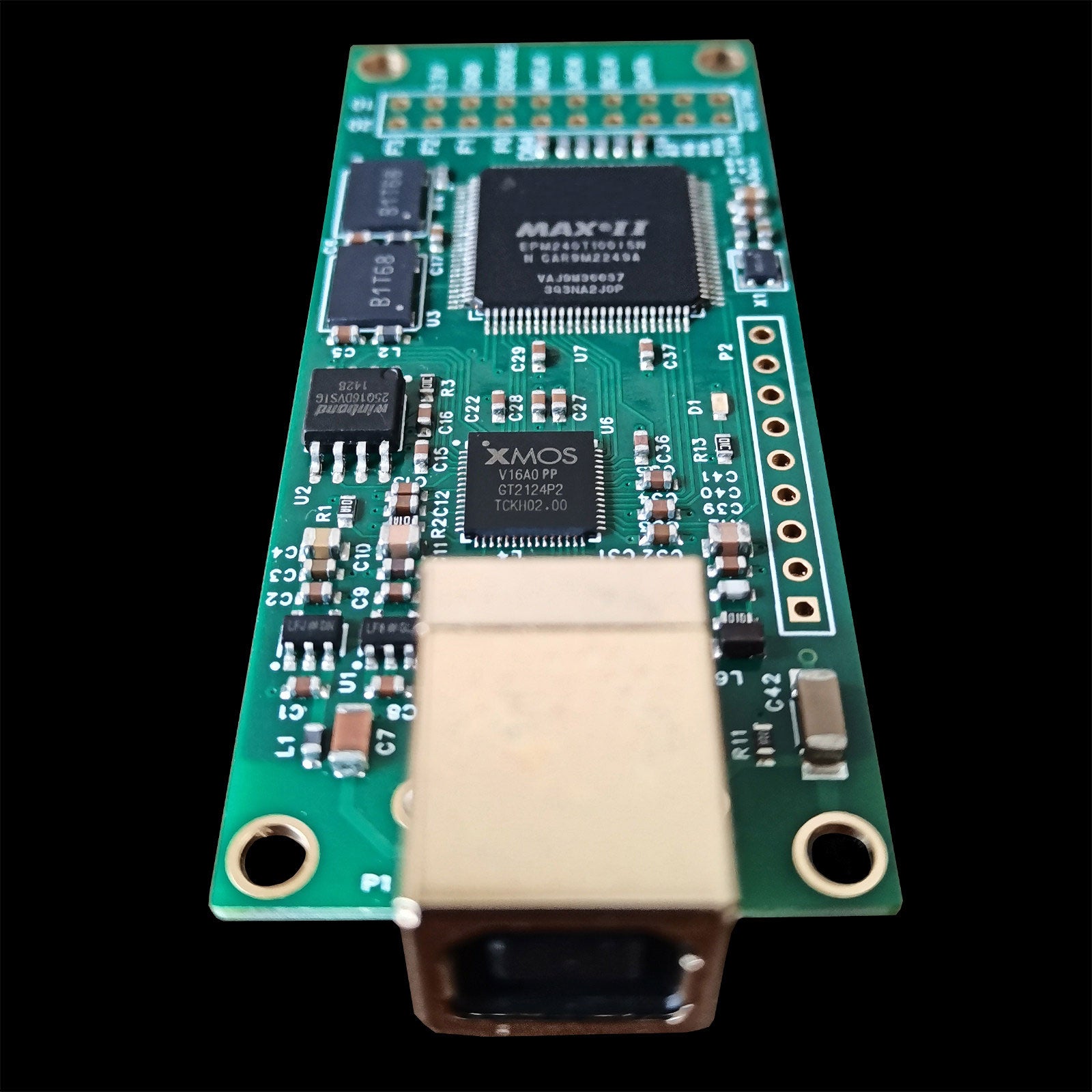

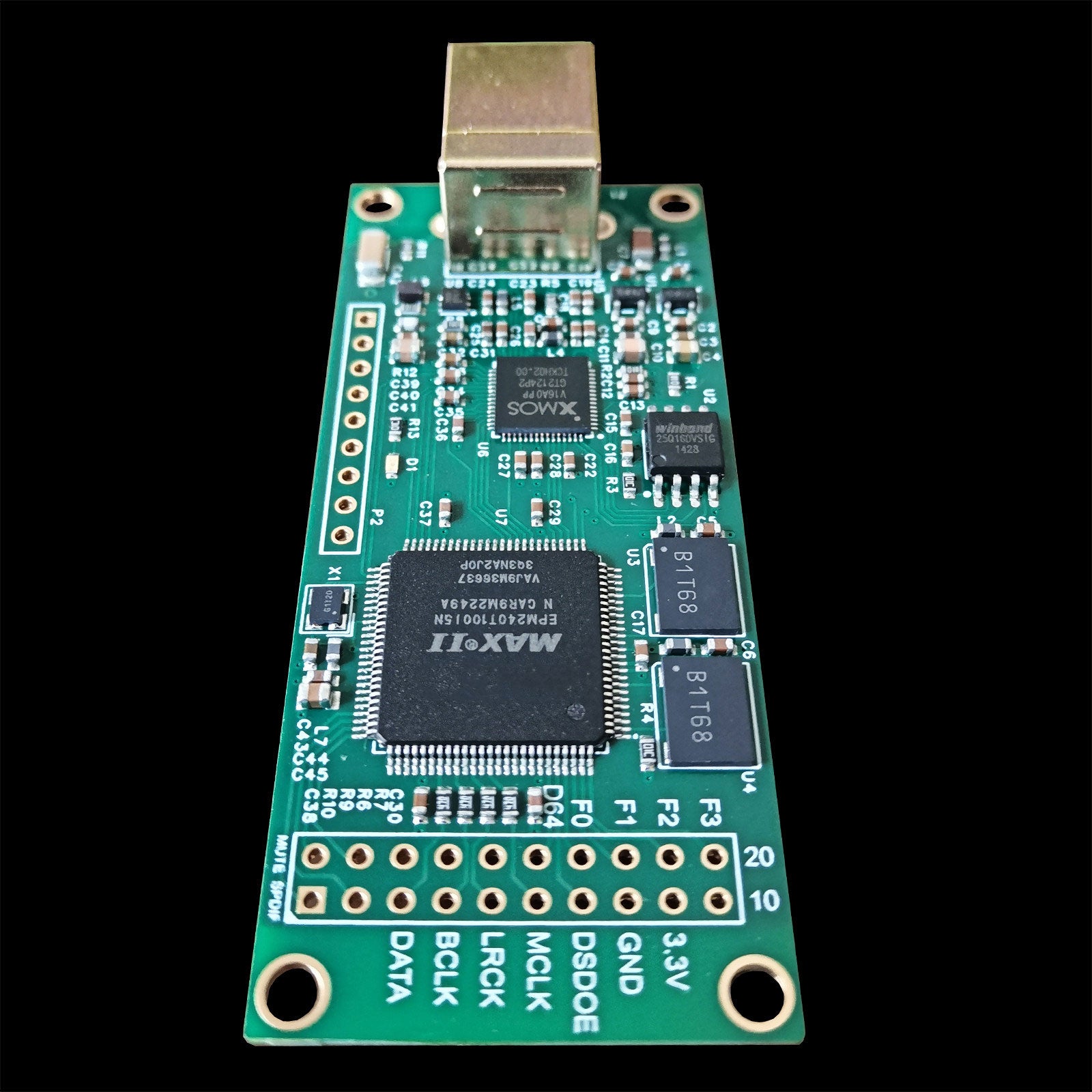

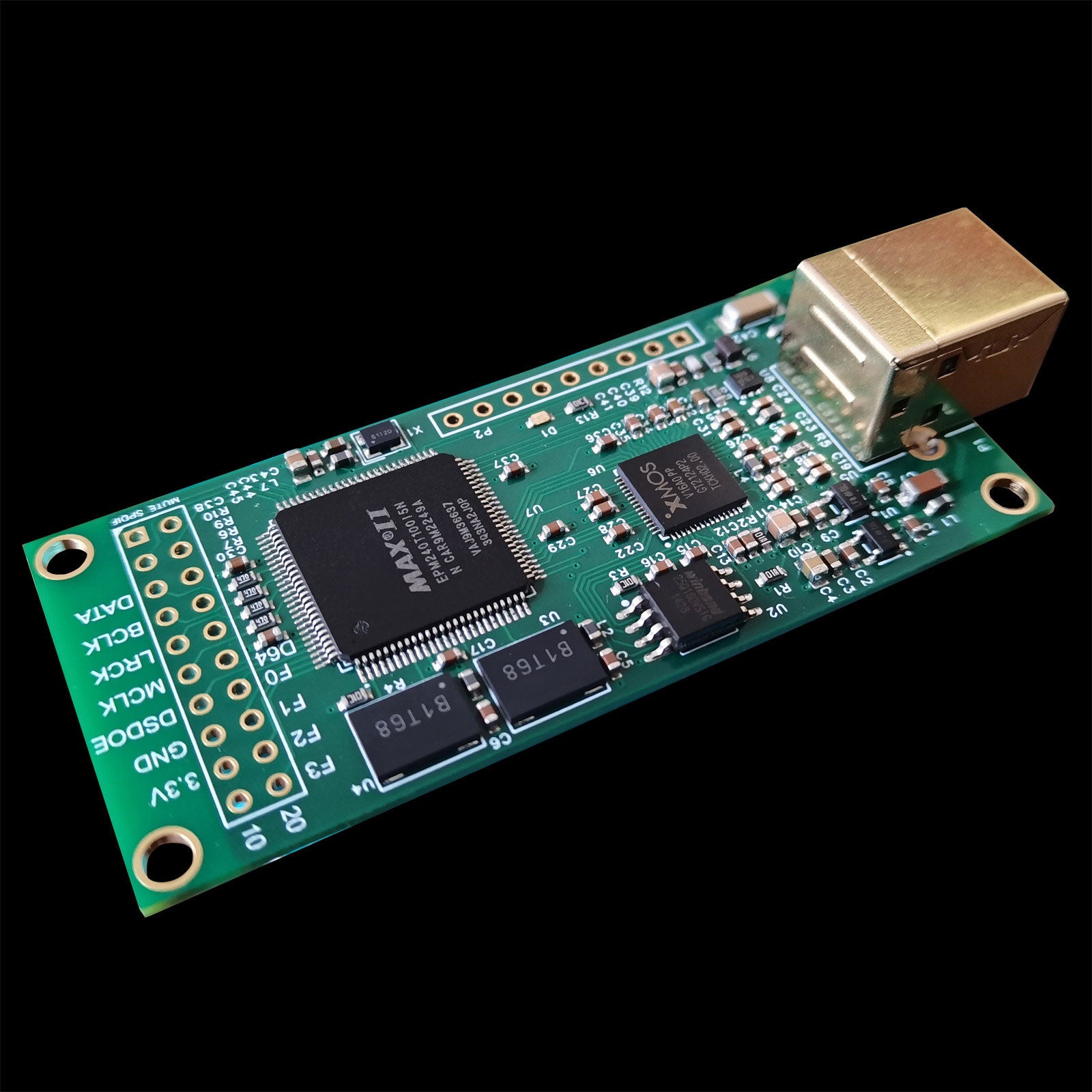

USB Digital Interface Module XU316 + CPLD Logic Chip DSD512/PCM768 Support for WIN7/8/10 Compatible with Amanero
Couldn't load pickup availability
Supported Sampling Rate:
- PCM: 16/24/32 bit, 44.1/48/88.2/96/176.4/192/352.8/384/768 kHz
- DSD: 64/128/256/512
- SPDIF: 44.1/48/88.2/96/176.4/192 kHz
- MQA: 44.1/48/88.2/96/176.4/192/352.8/384 kHz
Support System:
- For WIN7, WIN8, WIN10 (Need to install the driver we provide)
- For Linux, Mac OS X10.6+, Android, iOS, use system built-in drivers
Details Introduction:
- The PCB adopts a four layer immersion gold process design to ensure good performance in passing large and small currents.
- For SITIME active crystal oscillator.
- Adopting MCU optimization control scheme, the USB data chip is fully optimized, resulting in better signal integrity and less signal distortion.
Key Features:
- For XMOS XU316 chip
- CPLD logic chip
- 3PCS active crystal oscillator for SITIME
- ADP151 voltage regulator chip
- Gold-plated USB-B port
Package Included:
- 1 x USB Digital Interface Module
