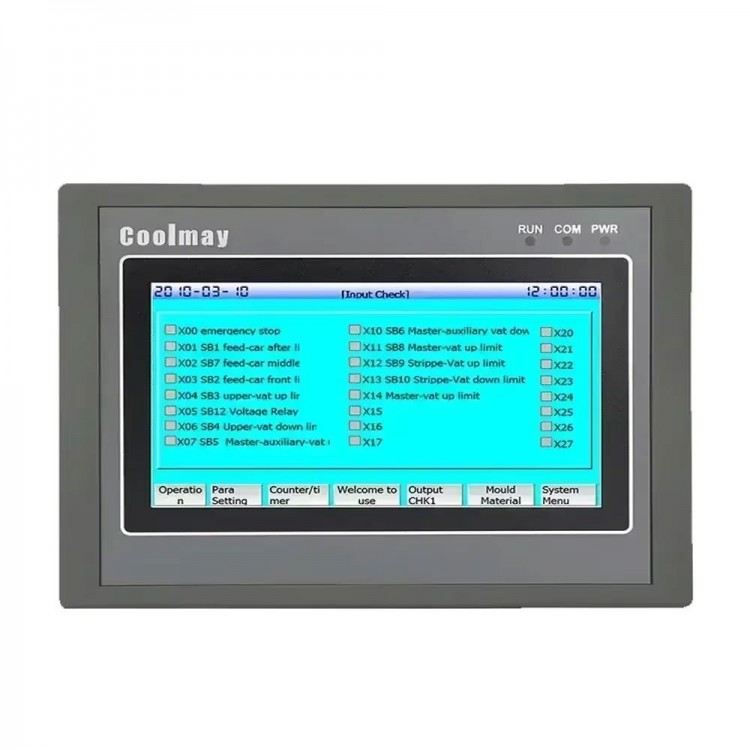

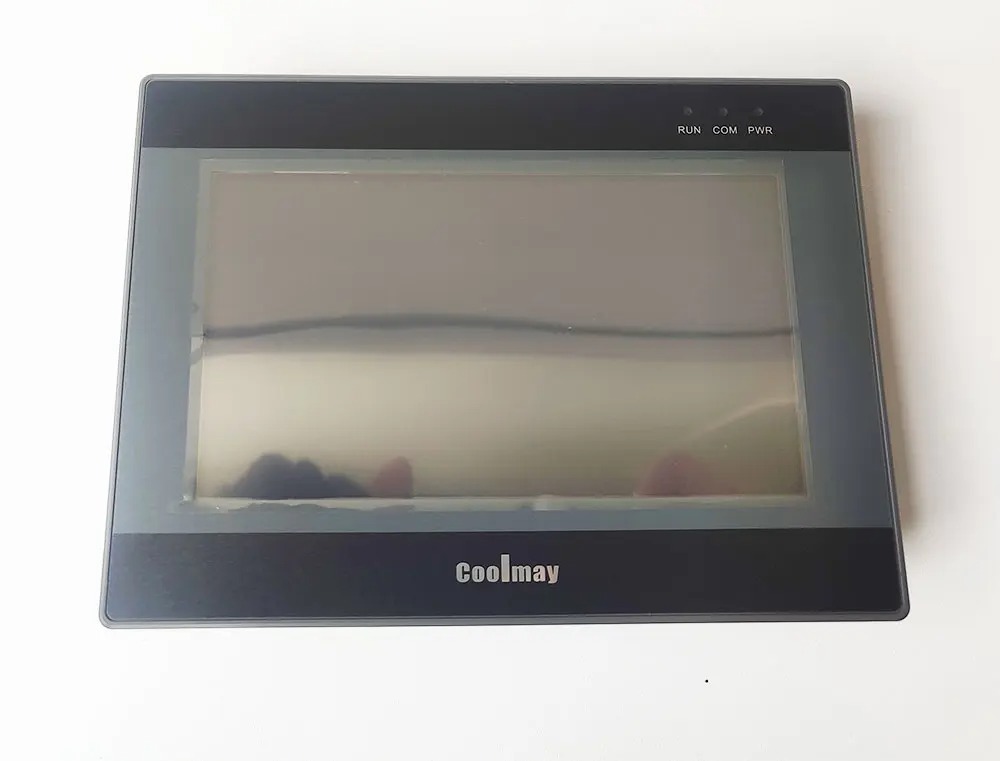

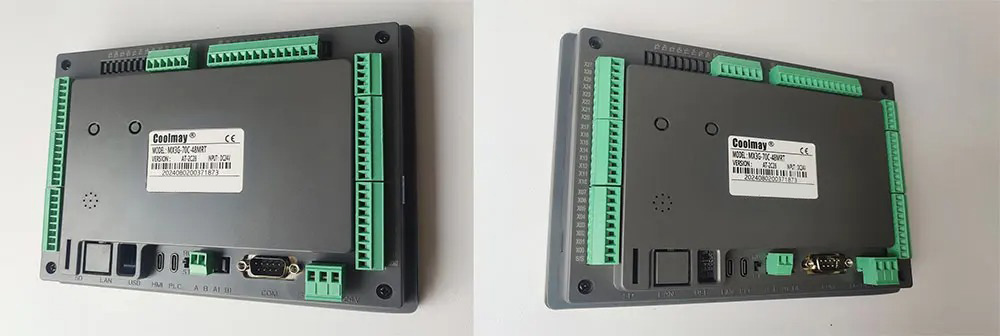

Coolmay MX3G-70C-48MRT 7-Inch HMI PLC All-in-One 24DI 24DO (12 Transistor + 12 Relay Outputs)

Coolmay MX3G-70C-48MRT 7-Inch HMI PLC All-in-One 24DI 24DO (12 Transistor + 12 Relay Outputs)

Features:
(1) The PLC programming software is compatible with GX Developer 8.86 and GX Works2, supporting Ladder Diagram and SFC language (structured programming and label support are not included). The HMI uses TPWorks, the dedicated programming software for TP HMI.
(2) Equipped with a military-grade 32-bit CPU for enhanced speed and improved resistance to high electromagnetic interference, making it highly suitable for industrial environments.
(3) Powerful, compatible with FX3S PLC, with high processing speed.
(4) Special encryption thoroughly prevents illegal reading. 8-bit encryption with the password "12345678" can completely prevent reading of the ladder logic program.
(5) Default configuration includes one HMI download port and two PLC programming ports (RS232/Type-C).
(6) The PLC of the MX3G-70C series comes with 1 RS485; the HMI comes with 1 RS232, which can be changed to 1 RS485; the PLC of the MX3G-43C series comes with 1 RS485; the HMI comes with 1 RS232. These are used for external HMI, inverters, and other equipment.
(7) Supports for Mitsubishi programming port protocol, MODBUS protocol, and RS protocol, easily realizing PLC interconnection and communication with external equipment.
(8) High-speed counting: 2 conventional single-phase 60KHz + 4 channels at 10KHz, or 1 AB (Z) phase at 30KHz + 1 AB (Z) phase at 5KHz. High-speed pulse: 4 conventional channels — for the MX3G-70C series, Y0-Y1 are 100KHz and Y2-Y3 are 50KHz; for the MX3G-43C series, Y0-Y1 are 100KHz and Y2-Y3 are 10KHz. The total transmission of high-speed counting and high-speed pulse must not exceed 300KHz. Acceleration and deceleration are independent.
(9) Supports multiple types of analog input and output, either individually or mixed. The MX3G-70C series supports up to 9AD2DA; the MX3G-43C series supports up to 5AD2DA. The precision of analog input and output is 12 bits.
(10) The MX3G-70C series supports up to 24DI/24DO (MR: up to 12). Digital output can be optional transistor MT (maximum load: 500mA) or relay and transistor mixed output MRT. The MX3G-43C series supports up to 12DI/10DO (MR: up to 8). Digital output can be optional transistor MT (maximum load: 500mA) or relay and transistor mixed output MRT.
(11) Flexible customization: more specifications and batches can be tailored according to customer requirements.

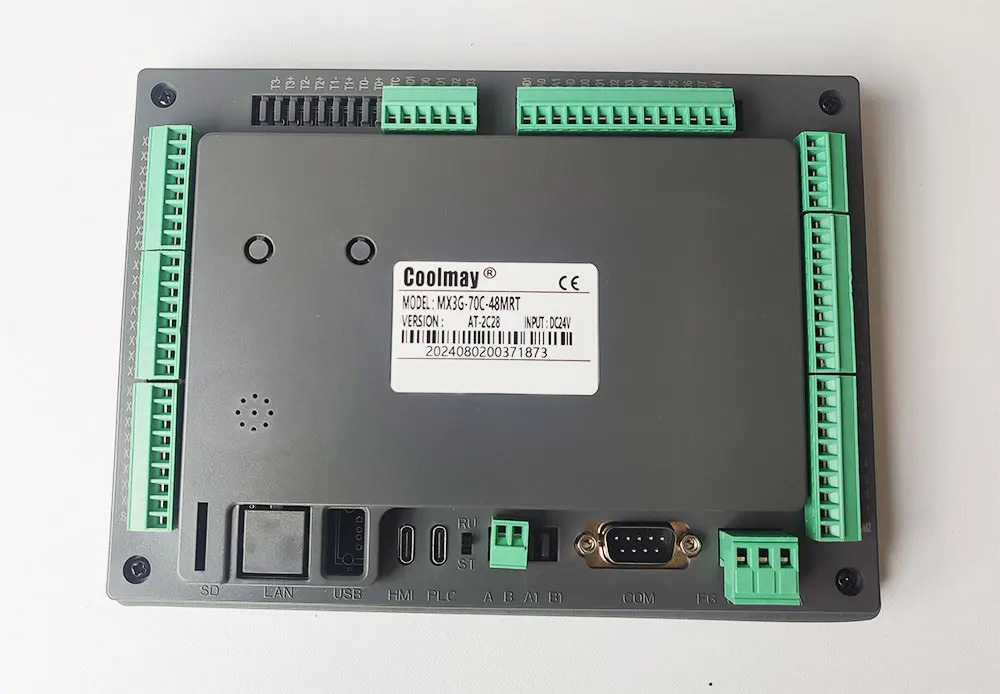

(12) Convenient wiring: all wiring terminals use 3.81mm pitch pluggable connectors, making them easy for customers to use.

Packing List:
* 1 × HMI PLC

Packaging Details:
* Weight: 1.1kg
