PLC Controller Programmable Logic Controller 7" HMI Touch Screen For Industrial Automation Control

PLC Controller Programmable Logic Controller 7" HMI Touch Screen For Industrial Automation Control

Specifications:
- Opening Size: 192 x 138 mm
- External Dimensions: 204 x 150 x 50.9 mm
- HMI Size: 7-Inch
- Total Points: 52
- Input: 24
- Relay Output: 16
- Transistor Output: 12
- Temperature: 2-Way K-type thermal couple (0 to 600℃)
- AD: 4
- DA: 2
- 485: None
- PLC Software: For Mitsubishi FX1N

Advantages:
- Touch screen PLC
- 7" touch screen (800*400)
- PLC instructions compatible with software for Mitsubishi
- With analog quantity, with temperature K-type thermocouple (0 to 600℃)

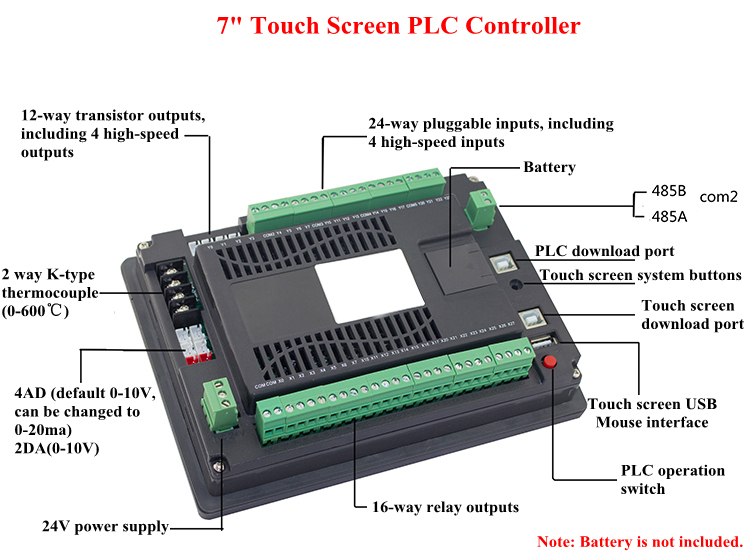

Touch Screen PLC Machine with High-Speed Pulse:
- High-Speed Input: X0 and X1 belong to 100k high-speed input, and X2-X7 belong to 5k.
- High-Speed Output: For Mitsubishi version, 2 high-speed outputs Y0, Y1 (100khz).
- Analog Quantity: The default input is 0-10V, and 500Ω resistor connected in parallel can be changed to 0-20ma, the resistance is standard; the output 0-10V cannot be changed.
- All-in-one Wiring: NPN low-level input, connected to 0V, shared negative pole with com terminal.
- Relay MR Output: The maximum load current is 3A, can be connected to NPN or PNP, can be connected to DC0V~30V and AC110V~220V, and the com terminal shares the negative electrode or shares the positive electrode.
- Transistor MT Output: Maximum load current 20mA, DC24V can only be connected to NPN, connect to 0V, share negative pole with com.

* Attention: The dedicated transistor/relay amplifier board of our shop can be added if the load is not enough, and the maximum connection can be 10A. If necessary, please contact our customer service staff.

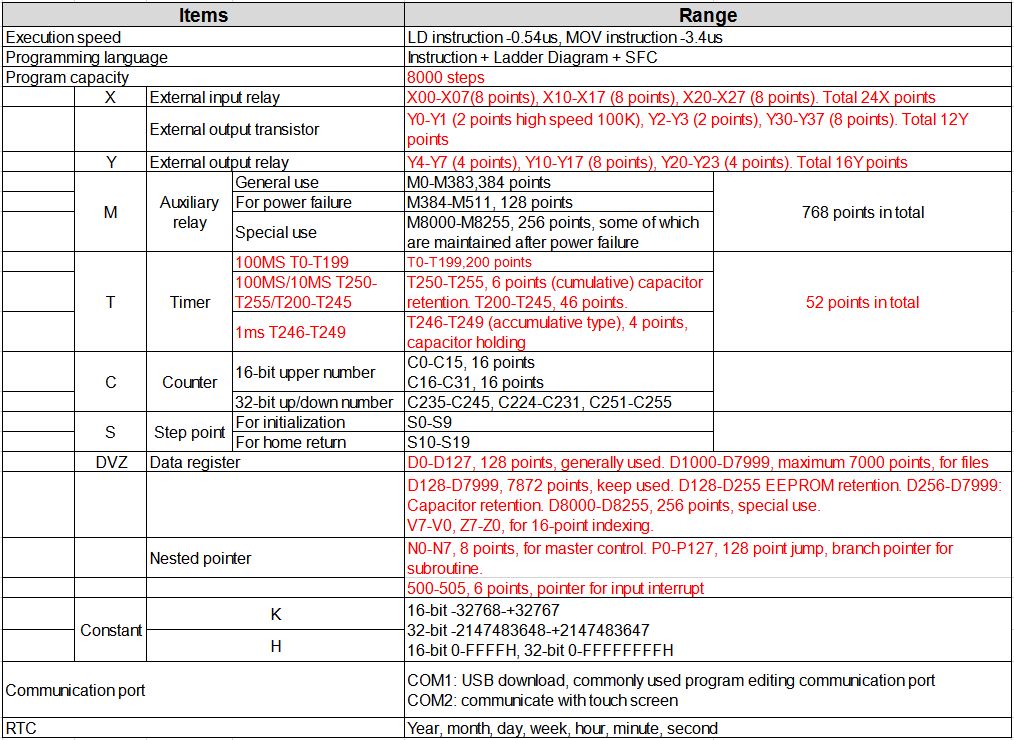

For Mitsubishi FX1N:

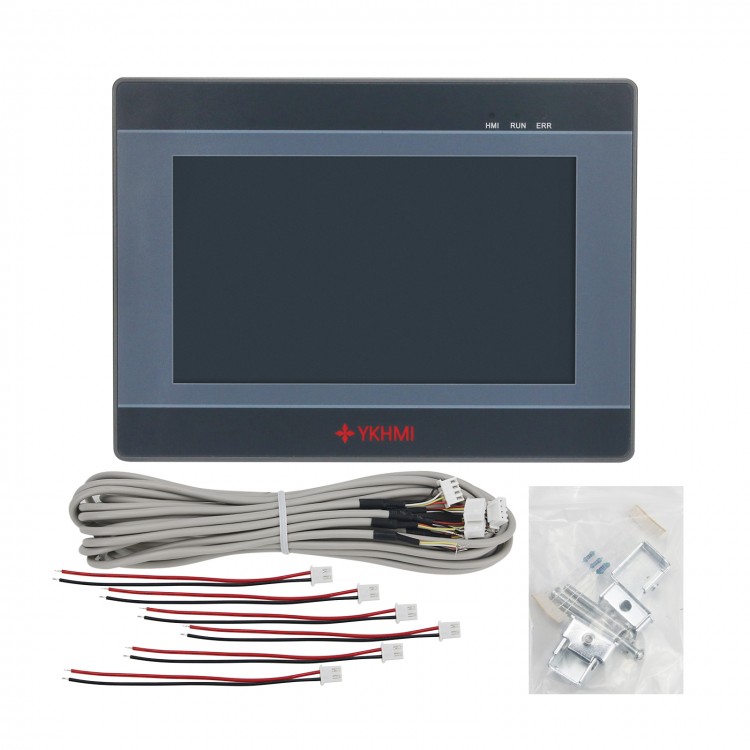

Package Included:
- 1 x Touch Screen PLC Controller

Note:
- Battery is not included.
- Please contact us to get software for Mitsubishi after purchasing.
- DC 24V 3A or above power supply is recommended.
