CRIUS All IN ONE PRO Flight Controller V2.0 Lastest Ver Pirate/MWC/ArduPlaneNG MultiWii

CRIUS All IN ONE PRO Flight Controller V2.0 Lastest Ver Pirate/MWC/ArduPlaneNG MultiWii

Features:
- Supported MegaPirateNG/ ArduCopterNG,/ArduPlaneNG/MultiWii/AeroQuadand firmware
- Up to 8-axis motor output
- 8 input channels for standard receiver and PPM SUM
- 4 serial ports for debug/Bluetooth Module/OSD/GPS/telemetry
- 2 servos output for PITCH and ROLL gimbal system
- A servos output to trigger a camera button
- 6 Analog output for extend device
- A I2C port for extend sensor or device
- Separate 3.3V and 5V LDO voltage regulator
- Built-in 16Mbit data flash memory chip to record the data automatically
- ATMega 2560-16AU Microcontroller
- MPU6050 6 axis gyro/accel with Motion Processing Unit
- HMC5883L 3-axis digital magnetometer
- MS5611-01BA01 highprecision altimeter
- FT232RQ USB-UART chip and Micro USB receptacle
- On board logic level converter
- Match the standard of RoHS
- Flight mode for Multiwii

  One of the following basic mode
  - Acro
  - Level
  - Alt Hold
  - Head Lock
  - Optional mode
  - HeadFree (CareFree)
  - GPS Hold (Need GPS receiver or Extend Board)
  - GPS Back to home position (Need GPS receiver or Extend Board
- Flight mode for MegaPirate
 - Acro
 - Alt Hold
 - Simple
 - Loiter (uses GPS)
 - Guided (uses GPS)
 - Position (uses GPS)
 - Circle (uses GPS)
 - RTL (uses GPS)
 - Auto(uses GPS)
 - Follow Me(uses GPS)
- Input power selection
- One of the following way
  - Connect 5V power cable from ESC or UBEC to the ESC/Servo port, the J1 jumper must be closed.
  - Connect 5V~12V power cable to the extend power port, the J1 jumper must be removed.
   When using Extend Board, AIO PRO must be powered from the extend power port.

General:
- Dimension: 50mmX50mm
- Height: 11.6mm
- Weight: 14.2g
- Fixing hole spacing: 45mm
- Hole diameter: 3.1mm

Note: not included Micro USB cable.

AIOPIO Board Input Output Module for CRIUS AIOP Flight Controller

AIOPIO is the Input/Output module for CRIUS AIOP Flight Controller v1.0/1.1/2.0. You can use it to connect LEDs and others module to AIOP.

Features:
- 0.1" pitch standard port for serial 1/2/3 and LEDs
- Analog port 0/1/2 for Airspeed and V&I Sensor
- ULN2003A LED driver and 7 input/output
- FrSky Telemetry output port
- Reverse polarity protection for external power port
- Select jumper for LED/Input power/FRSKY

Other
- Dimension: 50 x 25 x 8mm
- Fixing hole spacing: 45mm
- Hole diameter: 3.1mm

Cruis NEO-6M V3.1 GPS Module for APM Pixhawk MWC Flight Controller

Features:
- 25*25mm imported ceramic antenna, work with low noise amplifier and filter, with larger signal reflective area, more sensitive
- Onboard EEPROM, power off save
- Molex 1.25-4pin plug, adopts EMI method, with impedance, compatible with 5V level signal input
- With reverse polarity protection
- With location and power indicator
- With standard UART interface
- Default 9600 1hz

Specifications:
- Size: 40*40*8.5mm(L*W*H)
- Weight: 14g/16g(without/with cable)
- Install hole: Dia.3.1*4, pitch 35mm
- GPS module: U-Blox Neo-6m
- Interface: Molex 1.25mm-4pin
- Backup capacitor: SII XH414

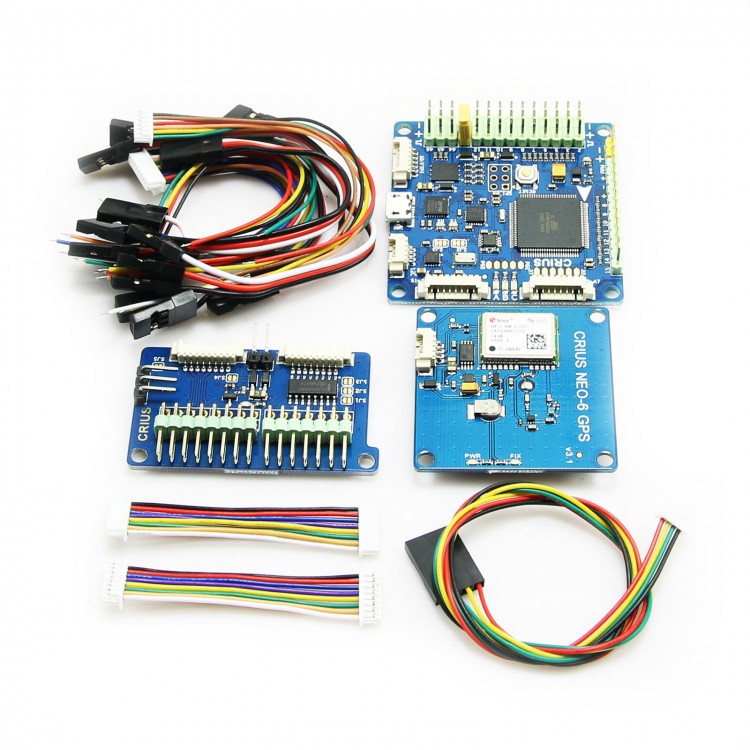

Package included:
- CRIUS AIO PRO v2.0 Flight Control×1
- JR/3P-3P cable×1
- JR/3P-1P×3 cable×3
- 1.25mm 4P cable×1
- 1.25mm 6P cable×2
- 1.25mm 8P cable×1
- AIOPIO Board x 1
- 1.25-8Pin cable 50mm x2
- Cruis NEO-6M V3.1 GPS Module
Note: not included Micro USB cable.
