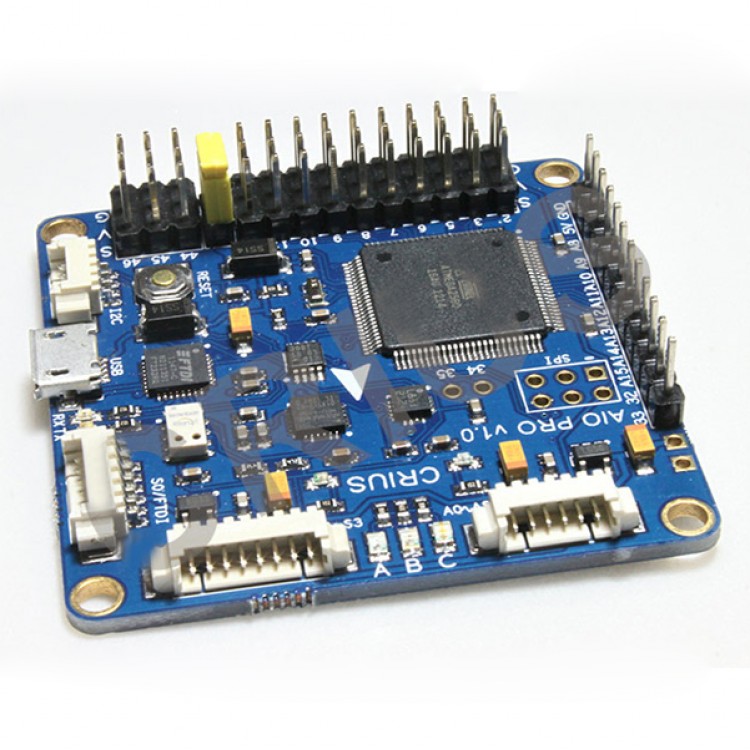

CRIUS ALL IN ONE PRO v1.0 Multi-Copter Flight Control Board Support MegaPirate MWC

Availability: Out Of Stock

  • Price:$63.16
  • Price in reward points: 632 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $61.90 $60.63 $58.74 $56.21 Contact US
Quantity:

CRIUS ALL IN ONE PRO v1.0 Multi-Copter Flight Control Board Support MegaPirate MWC
Features:
 - Supported MegaPirateNG and MultiWii firmware
 - Up to 8-axis motor output
 - 8 input channels for standard receiver
 - 4 serial ports for debug/Bluetooth Module/OSD/GPS/telemetry
 - 2 servos output for PITCH and ROLL gimbal system
- A servos output to trigger a camera button
 - 6 Analog output for extend device
 - A I2C port for extend sensor or device
 - Separate 3.3V and 5V LDO voltage regulator
 - ATMega 2560 Microcontroller
 - MPU6050 6 axis gyro/accel with Motion Processing Unit
 - HMC5883L 3-axis digital magnetometer
- MS5611-01BA01 highprecision altimeter
- FT232RQ USB-UART chip and Micro USB receptacle
 •On board logic level converter
 •Match the standard of RoHS

- Flight mode for Multiwii
 •One of the following basic mode
  - Acro
  - Level
  - Alt Hold
  - Head Lock
 - Optional mode
  - HeadFree (CareFree)
  - GPS Hold (Need GPS receiver or Extend Board)
  - GPS Back to home position (Need GPS receiver or Extend Board)

- Flight mode for MegaPirate
 - Acro
 - Alt Hold
 - Simple
 - Loiter (uses GPS)
 - Guided (uses GPS)
 - Position (uses GPS)
 - Circle (uses GPS)
 - RTL (uses GPS)
 - Auto(uses GPS)
 - Follow Me(uses GPS)

- Input power selection
- One of the following way
  - Connect 5V power cable from ESC or UBEC to the ESC/Servo port, the J1 jumper must be closed.
  - Connect 5V~12V power cable to the extend power port, the J1 jumper must be removed.
   When using Extend Board, AIO PRO must be powered from the extend power port.

General
- Dimension: 50mmX50mm
- Height: 11.6mm
- Weight: 14.2g
- Fixing hole spacing: 45mm
- Hole diameter: 3mm

Package content
- AIO PRO FC x 1
- 3Pin to 1Pinx3 cable 100mm x 3
- 3Pin to 3Pin cable 100mm x 1
- Molex 1.25mm 4Pin cable 100mm x1
- Molex 1.25mm 6Pin cable 100mm x2
- Molex 1.25mm 8Pin cable 100mm x1
