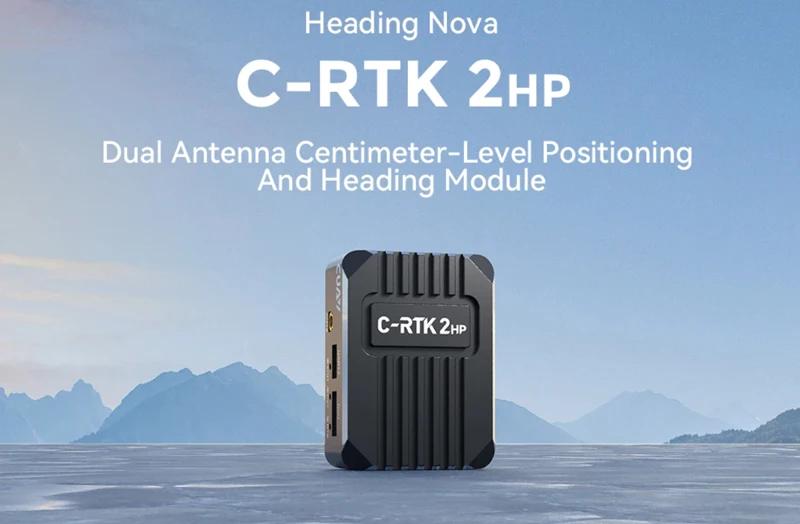

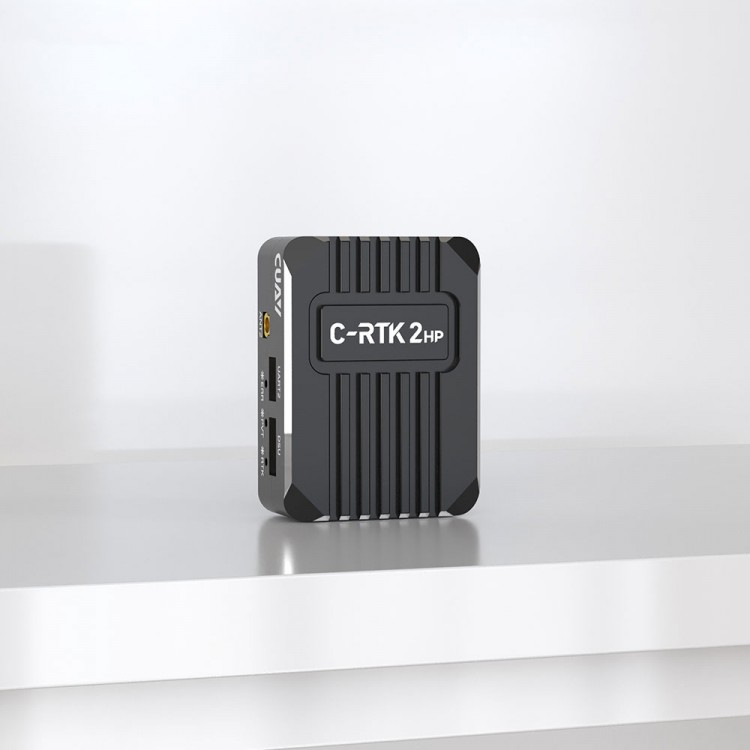

CUAV C-RTK 2HP Dual Antenna Centimeter-level Positioning and Orientation Module High Precision GNSS RTK Module
Description:

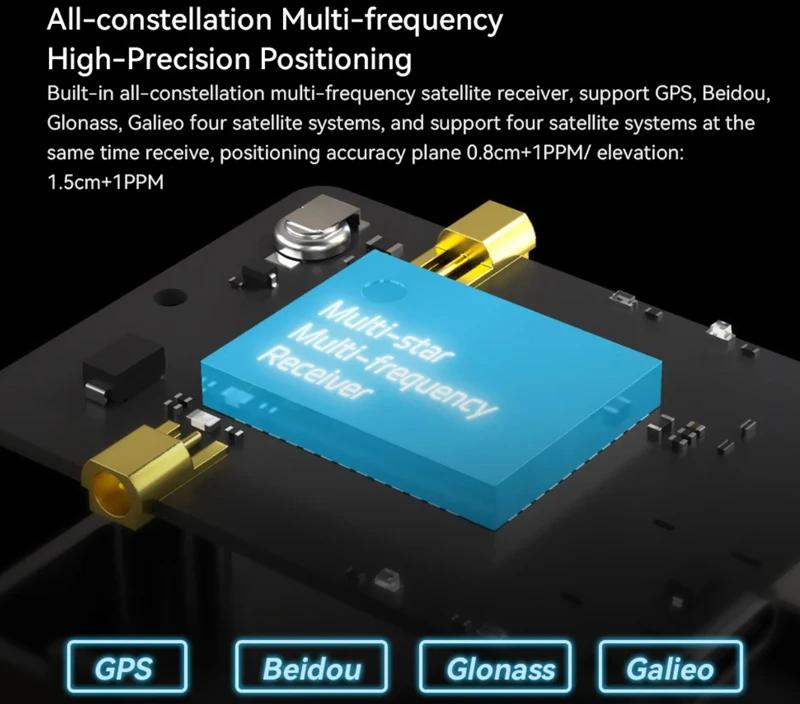

- C-RTK 2HP is a all-constellation multi-frequency high-precision positioning receiver module. Using a new generation of high-performance GNSS SoC chips, a single chip completes the baseband and RTK solving functions.

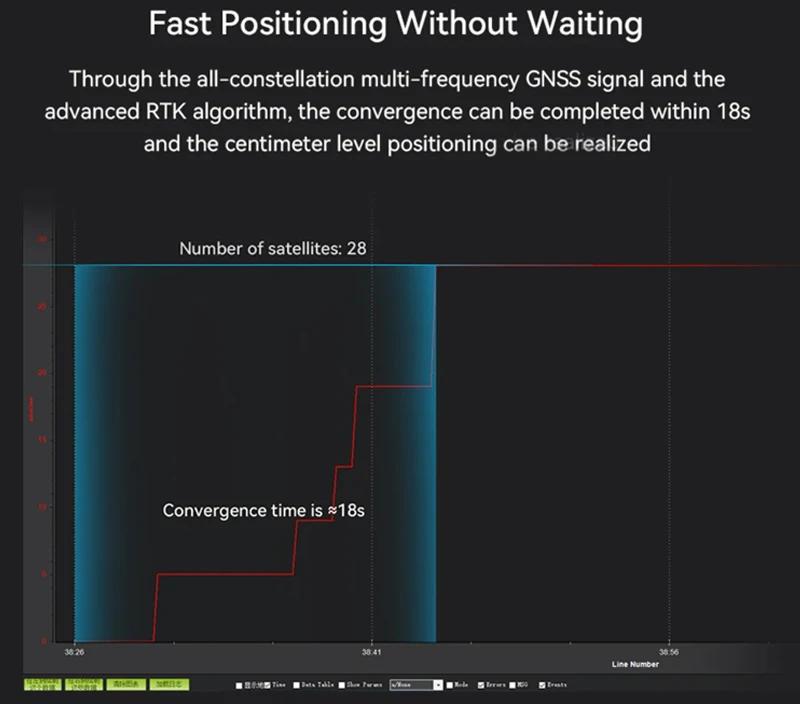

- High-performance data sharing capabilities, fully optimized multi-dimensional RTK matrix pipeline calculations, RTK processing capabilities increased by more than 80%, can achieve more than 28 directional solutions and recapture time within 1s. Effectively deal with the continuity and reliability of positioning and orientation output in complex environments.

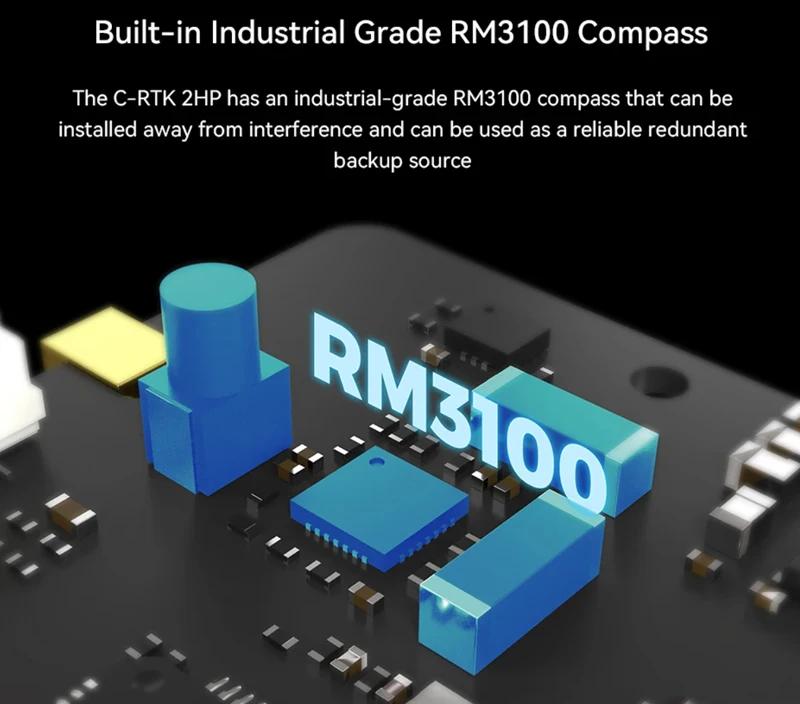

- Single module supports dual antenna estimate yaw and inertial navigation function. Integrated STM32F4 processor, supports DroneCAN protocol and flight control communication, built-in RM3100 industrial-grade electronic compass and IMU sensor, open source can freely develop custom functions. Support switching between USB base station end and sky TTL end.
Features:
- Centimeter-Level Positioning

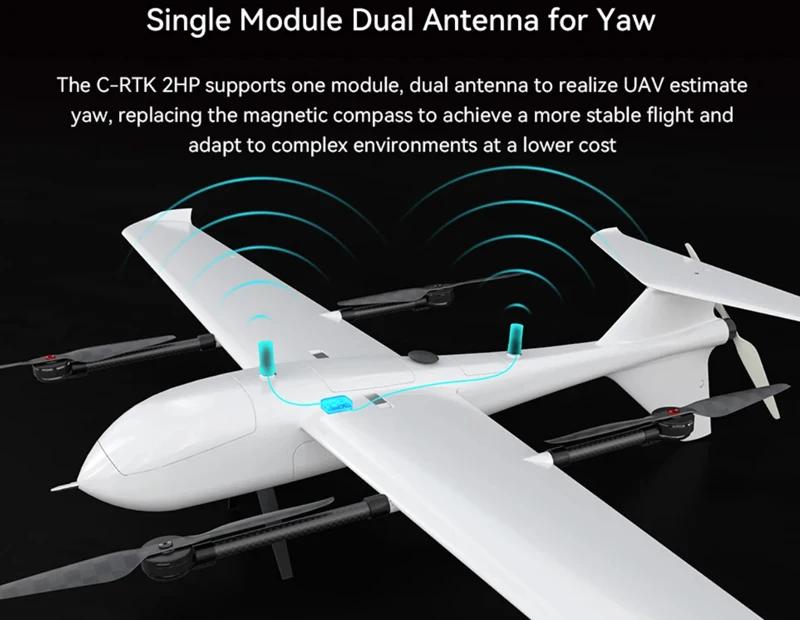

- Single Module Dual Antenna Estimate yaw
- All-constellation Multi-frequency Receiver
- Supports DroneCAN Protocol

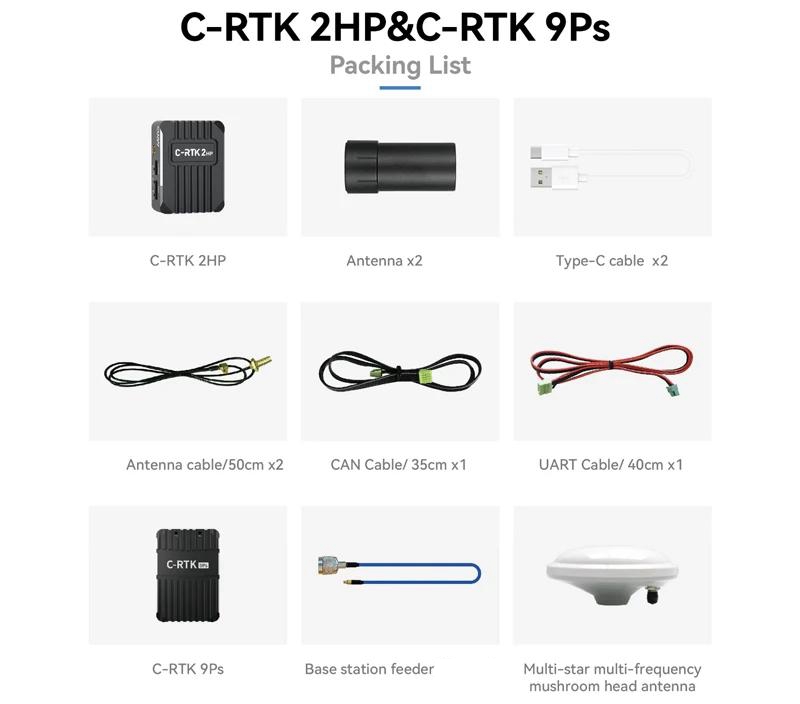

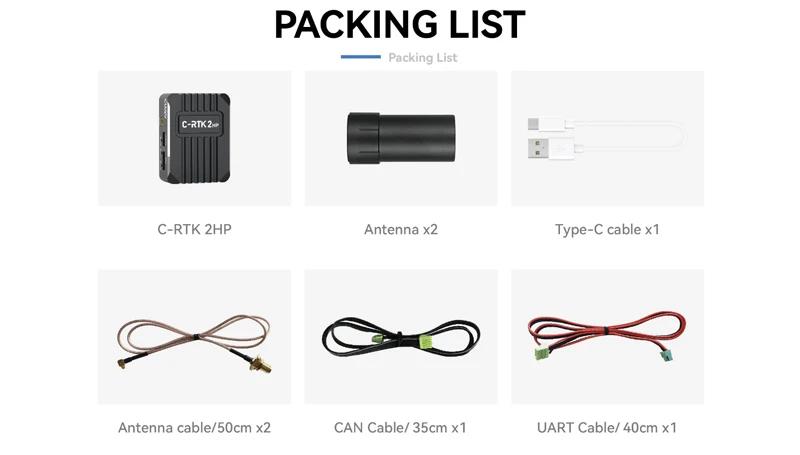

Package Included:
- 1 x C-RTK 2HP
- 2 x Antenna
- 1 x Type-C Data Cable
- 2 x Antenna Feeder Line (50cm)
- 1 x CAN Data Cable (35cm)
- 1 x UART Data Cable (40cm)
