CUAV CAN PDB V2.5 Multifunctional Baseboard Flight Controller Carrier Board and X7 Core Module

Description:

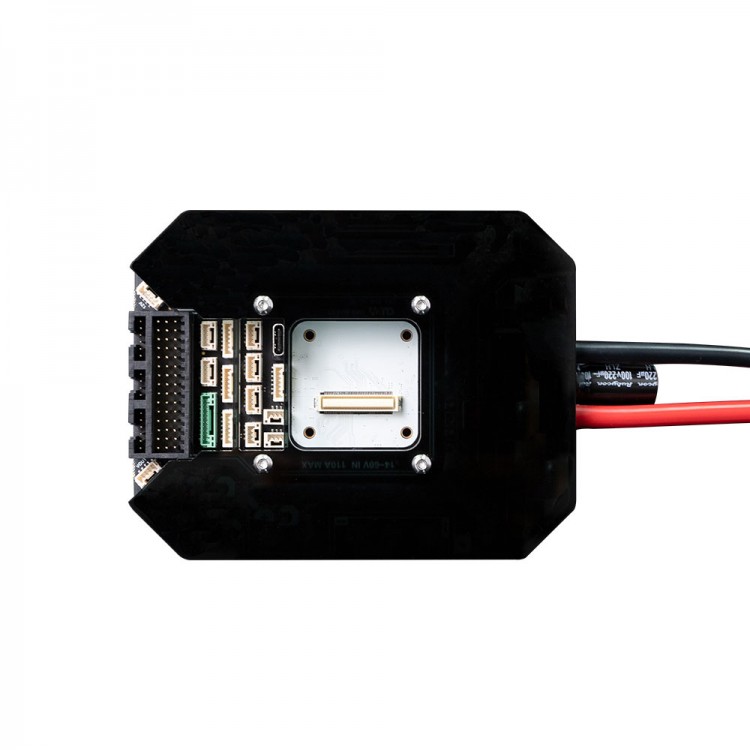

CAN PDB is a multi-functional baseboard of flight controller CORE, which provides abundant interfaces, integrates the functions of power supply module and power distribution board, supports voltage input of 10~60V, and provides continuous working current up to 110A. It adopts self-developed ITT algorithm and has high accuracy power detection of 0.1A and 0.05V. It has 10-way power output welding points, and provides a 5V/6A and a 12V/4A stabilized output to provide power for external device. Furthermore, it also supports CORE module of flight controller.

V2.5 Update:
1. Adding PPM interface enriches the support of remote control receiver protocol;
2. The power output is upgraded from screw fixing to welding process, which reduces the risk of loose screws caused by heating and vibration caused by poor contact.

Hardware Parameters:

- Processor: STM32F412 100Mhz 512K Flash 256K RAM
- Input Voltage: 10-62V (3-15S Lipo)
- Accurate measurement current range: 0-110A
- Maximum current range: 0-180A
- 5V regulated output: 6A maximum; stable 5A
- 12V regulated output: 4A maximum; stable 3.5A
- Number of servo channels: 14
- Remote control receiver signal: support PPM/SBUUS/DSM signal input
- Support CORE: V5+/X7+/X7+PRO CORE
- Compatible models: fixed-wing aeroplane/3-8 axis multi-copter/helicopter/VTOL/unmanned vehicles/unmanned ship
- Firmware: for ArduPilot firmware 4.0.0 and above; PX4 native firmware version 1.11.0 and above
- Operating temperature: -20 to +100°C
- Product Size: 12 x 10 x 1.2cm/4.7 x 3.9 x 0.5" (LxWxH)
- Weight: 163g/0.4lb (including cable weight)
- Cable length: 30cm/11.8" (without the sizes of terminals)

Main Interfaces:
- USB port: 1 (type-c)
- UART serial port: 5 (including GPS/UART4/Telem1/Telem2/Debug)
- CAN standard bus: 2
- I2C bus: 3
- SBUS/DSM IN: 1 (DuPont head)
- PPM_IN: 1
- PWM output: 14 (DuPont head)
- ADC3.3: 1
- ADC6.6: 1
- SBUS OUT:1 (does not work when using X 7/X7procore)
- RSSI: 3.3V analog voltage
- DSU7: 1

Package Included:
- 1 x CAN PDB V2.5
- 1 x X7 Core
- 1 x 16G memory card
- 2 x I2C/CAN cables
- 1 x ADC3.3 cable
- 1 x Pw-Link module
- 1 x USB-Type C cable
- 1 x CAN expansion board
- 1 x RSSI cable (X7 Series)
- 2 x Power cords 12/5V output
- 1 x DuPont cable
- 1 x PPM signal cable
- 6 x Screws M2*6 with spacers
- 8 x M3*8 screws
- 1 x Acrylic isolation plate
- 4 x M3*12 nylon columns male
- 4 x M3*12 nylon columns female
