CUAV For U-blox ANN-MB RTK GNSS Antenna C-RTK 9P Extension Antenna (MMCX Connector 1M)

Availability: Out Of Stock

  • Price:$74.04
  • Price in reward points: 740 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $72.56 $71.08 $68.86 $65.90 Contact US
Quantity:

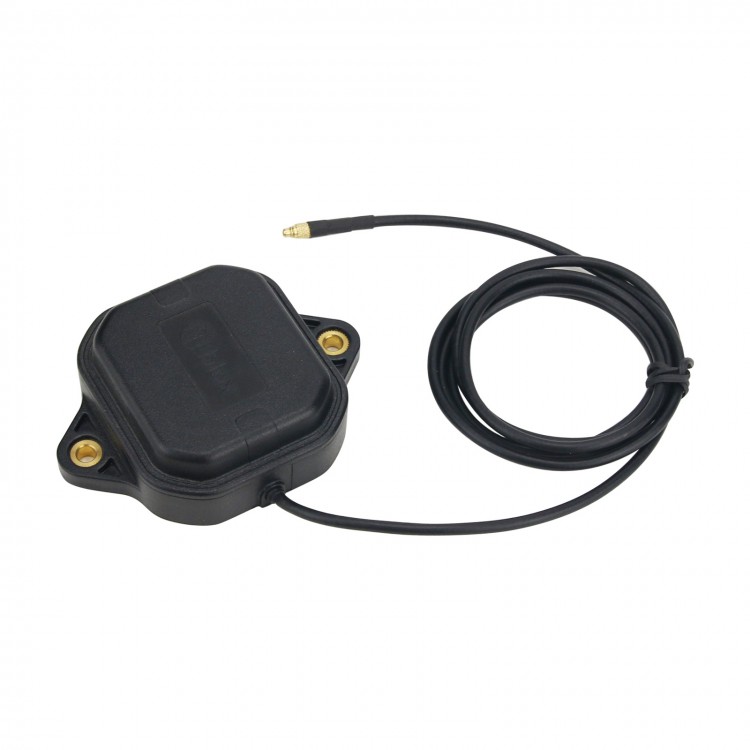

CUAV For U-blox ANN-MB RTK GNSS Antenna C-RTK 9P Extension Antenna (MMCX Connector 1M)

1.Description:

For u-blox ANN-MB multi-band (L1, L2/E5b/B2I) active GNSS antennas are designed to reduce time to market for the next generation of high precision GNSS applications, which require highly accurate location information. The compact design, excellent   price to performance ratio, and versatile mounting and connector choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB  antenna is a perfect match to the latest platform for u-blox F9, including the ZED-F9P  module, thus providing customers with a valuable antenna solution to minimize design-in efforts.

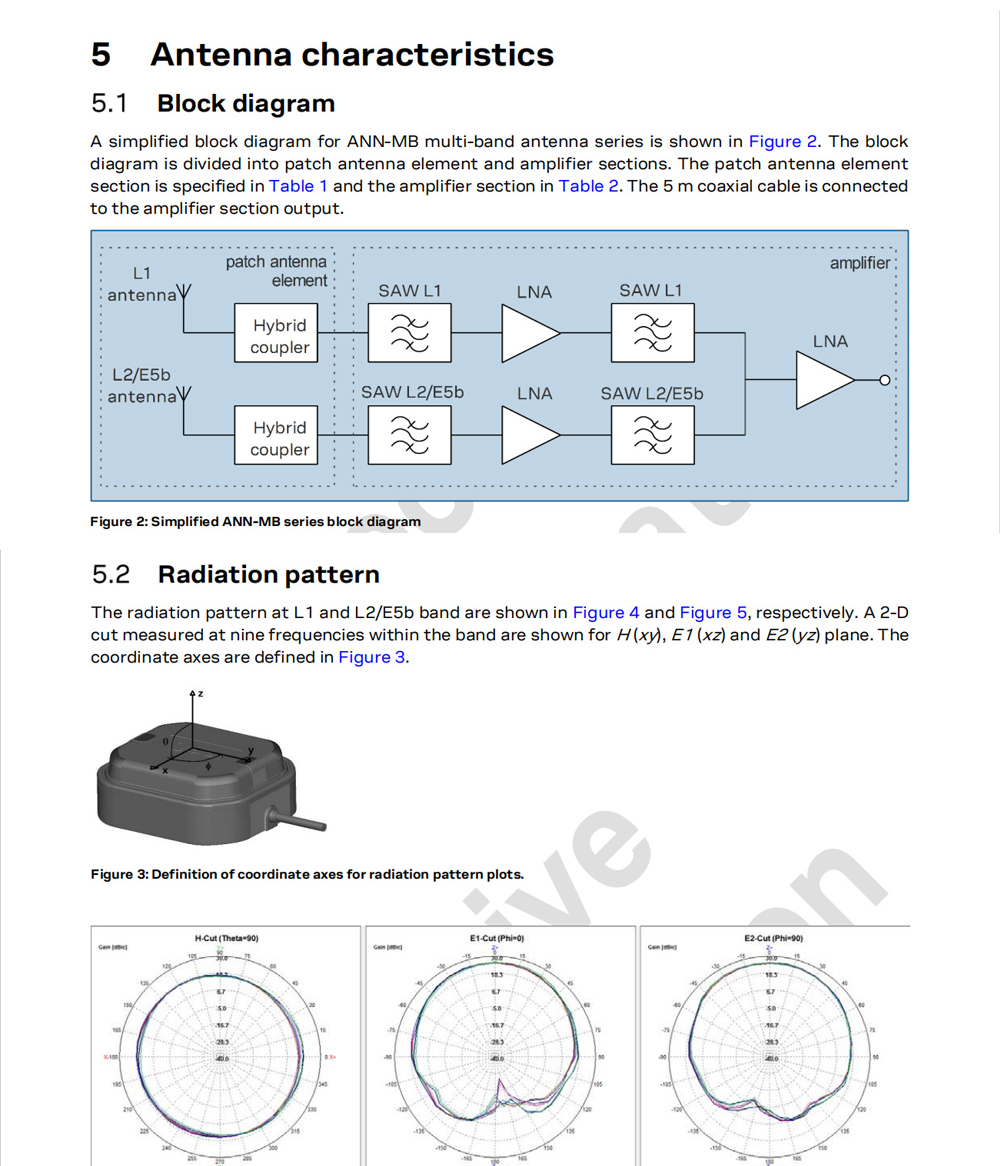

The ANN-MB series includes a high-performance multi-band RHCP dual-feed patch antenna element, a built-in high-gain LNA with SAW pre-filtering, and an antenna cable with three connector options (SMA, SMB, MCX).

Package Included:
- 1 x RTK GNSS Antenna

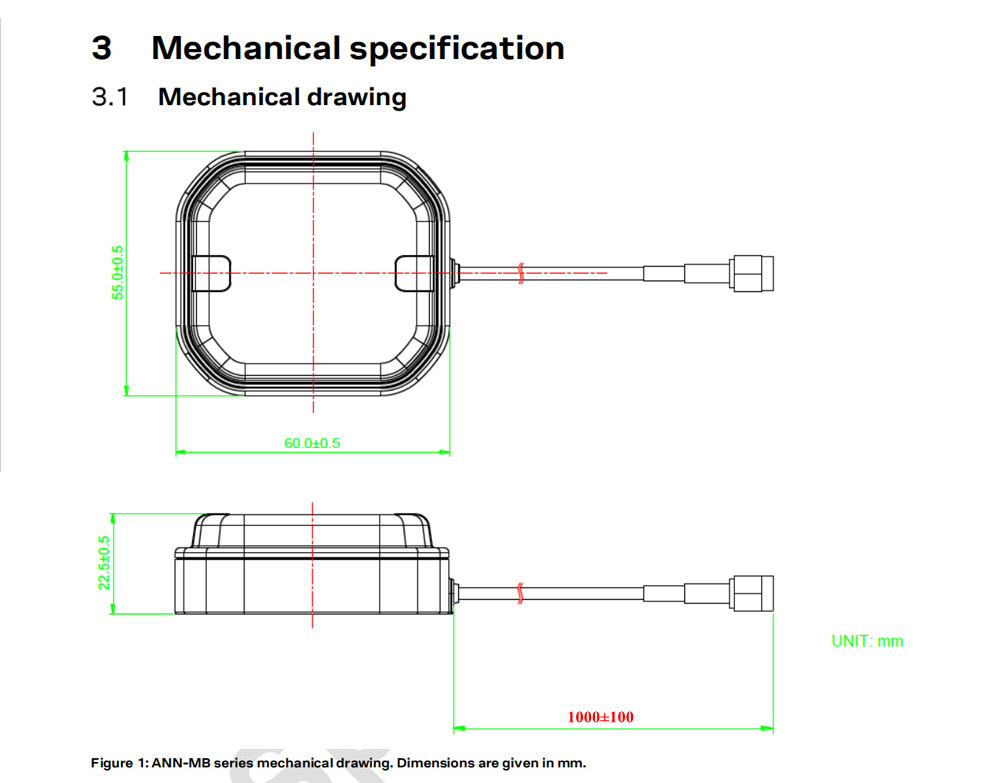

3.2. Mechanical Data:
- Weight (including cable): 167g
- Size: 60 x 55 x 22.5mm

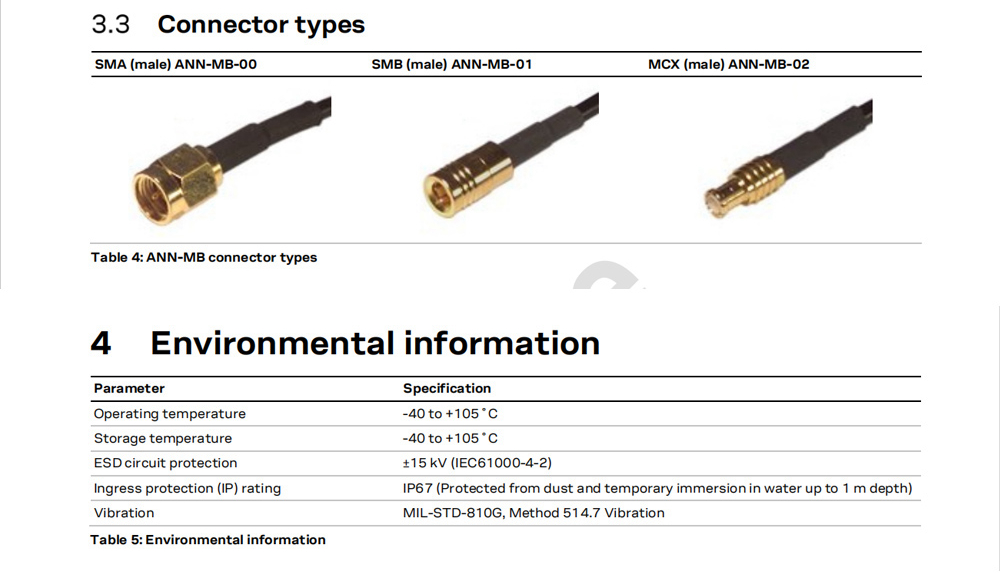

- Connector Options: SMA, SMB, MCX
- Cable Type, Length: RG174, 1M
- Mounting: Magnetic base, fixed installation option (screw mount)
- Housing Color: Black
