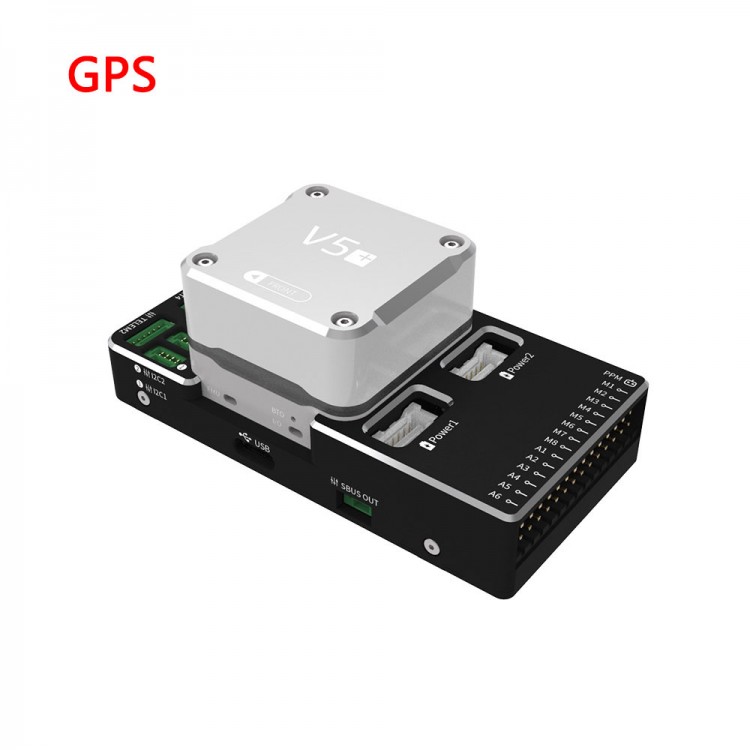

CUAV V5+ RC Autopilot Flight Controller For Drone Pixhawk FMUv5 Flight Control w/ NEO V2 GPS

CUAV V5+ RC Autopilot Flight Controller For Drone Pixhawk FMUv5 Flight Control w/ NEO V2 GPS

Specifications of Autopilot:
Hardware Parameters:

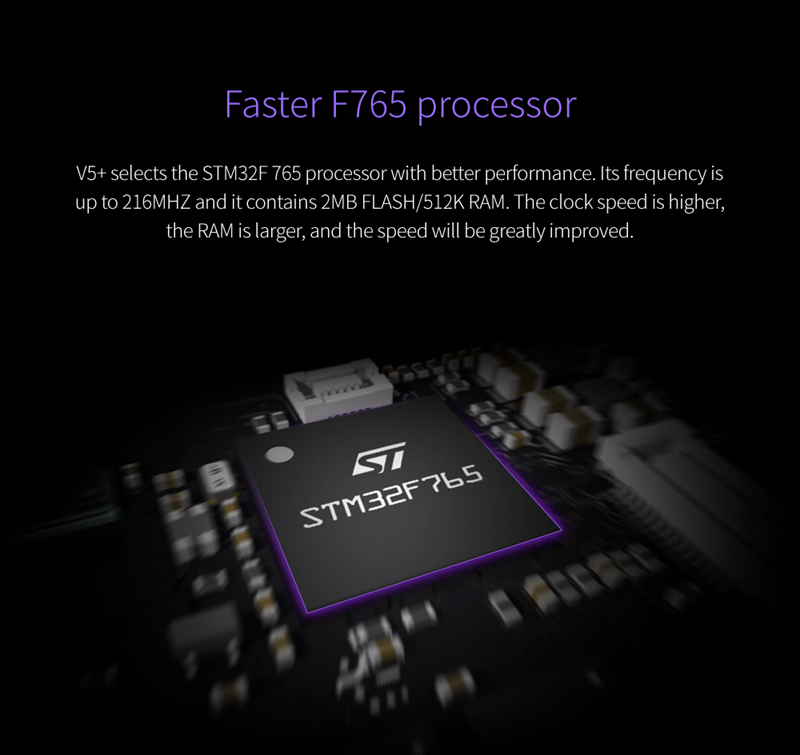

- Main FMU Processor: STM32F765 (32 Bit Arm Cortex-M7, 216MHz, 2MB Flash, 512KB RAM)
- IO Processor: STM32F100 (32 Bit Arm Cortex-M3, 24MHz, 8KB SRAM)

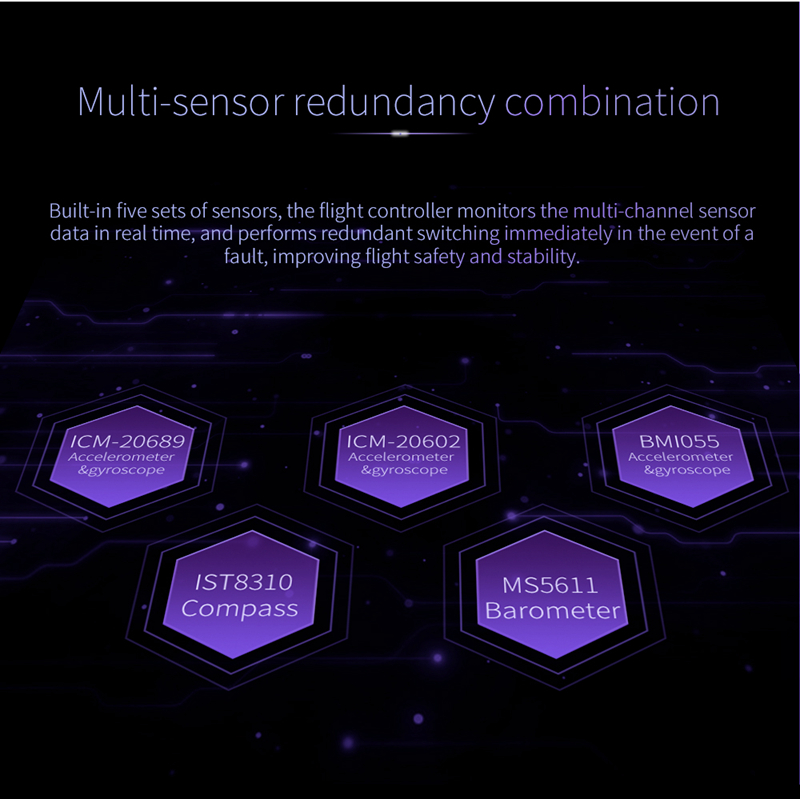

On-Board Sensors:
- Accelerometer: ICM-20602/ICM-20689/BMI055
- Gyroscope: ICM-20602/ICM-20689/BMI055
- Electronic Compass: IST8310
- Barometer: MS5611

Interfaces:
- UART: 5
- I2C: 4
- SPI: 1
- CAN: 2
- ADC: 2
- PWM Output: 14
- PWM Input: 6
- PPM Input: 1
- DSM/SBUS/RSSI: 1
- Power Supply 1: 1
- Power Supply 2: 1
- Safety Switch: 1
- Buzzer: 1
- USB-TYPE-C: 1
- TF Card Slot: 1

Supported Functions:
- Hardware: For PX4/ Ardupilot

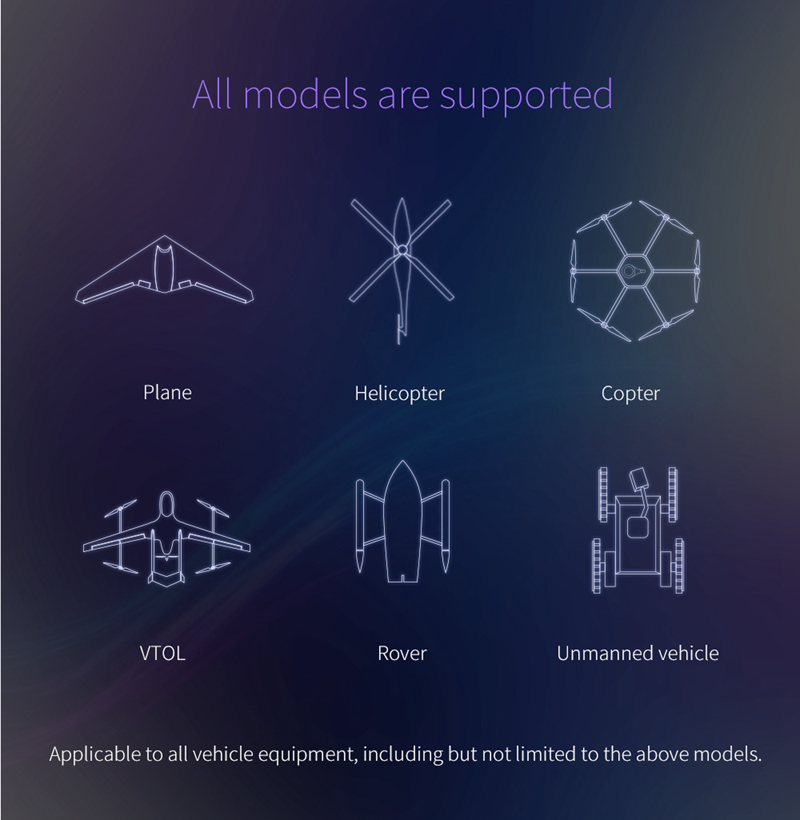

- Drone Models: For multi-rotor, fixed wing drones, helicopters, VTOL, unmanned boats, unmanned vehicles, etc.
- Power Supply: 3-Way Power Supply Redundant Input

Dimensions & Weight:
- Size: 85.5 x 42 x 33mm
- Weight: 91g

Package Included:

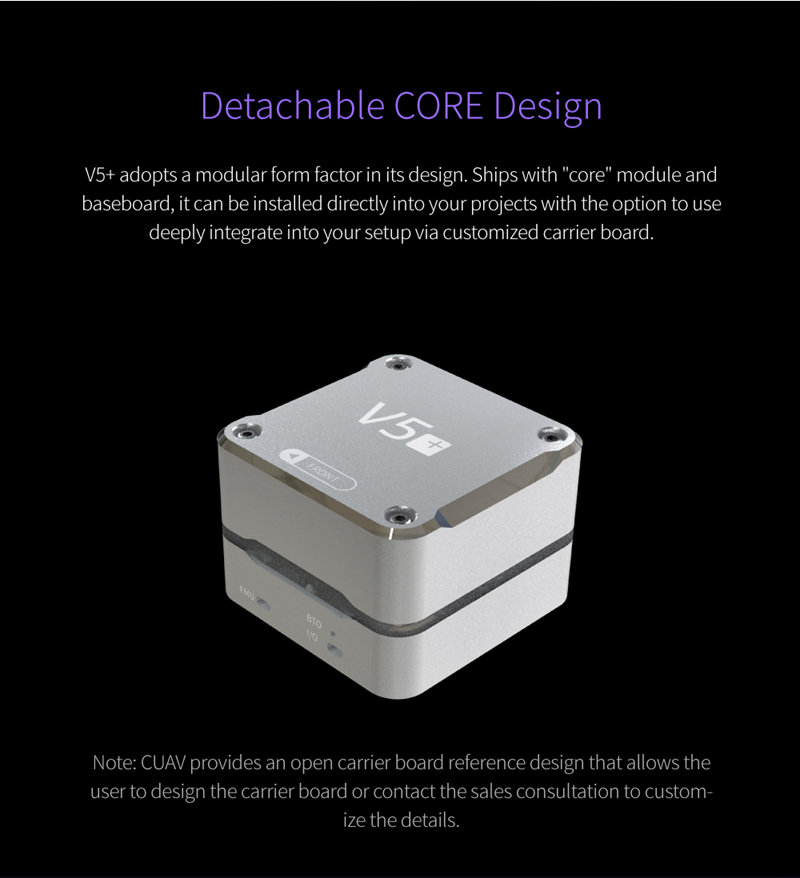

- 1 x Autopilot V5+
- 2 x Dupont Cables
- 1 x ADC6.6 Cable
- 2 x I2C/CAN Cables
- 1 x SBUS Signal Cable
- 1 x RSSI Cable
- 1 x DSM Signal Cable
- 1 x ADC3.3 Cable
- 1 x Debug Cable
- 1 x Safety Switch + Cable
- 1 x Voltage Current Cable
- 1 x PW-Link Module + Cable
- 1 x Power Module
- 1 x 16GB Memory Card
- 1 x I2C Expansion Board
- 1 x TTL Plate

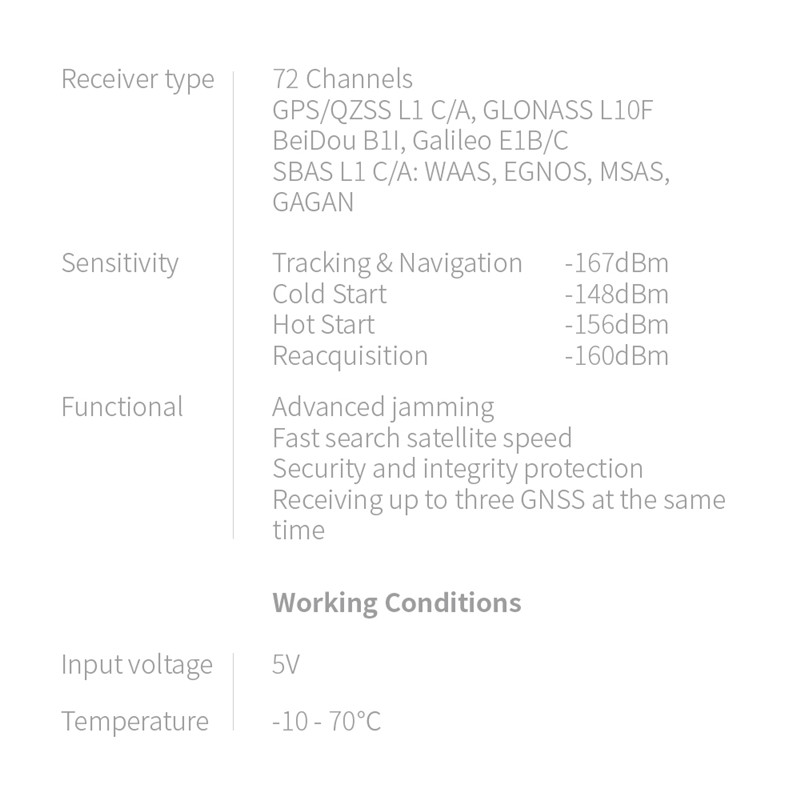

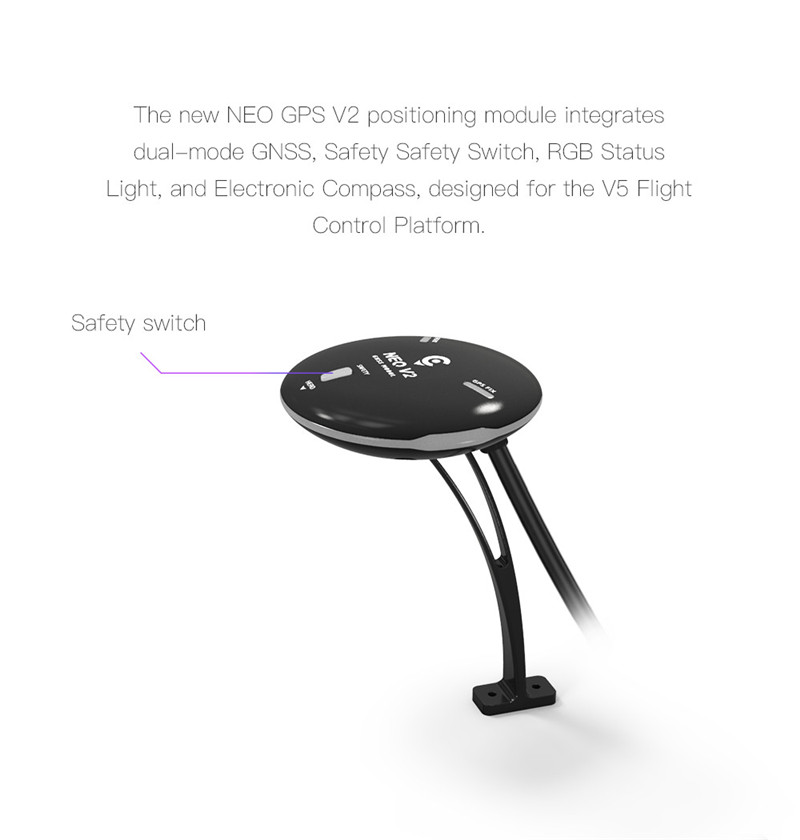

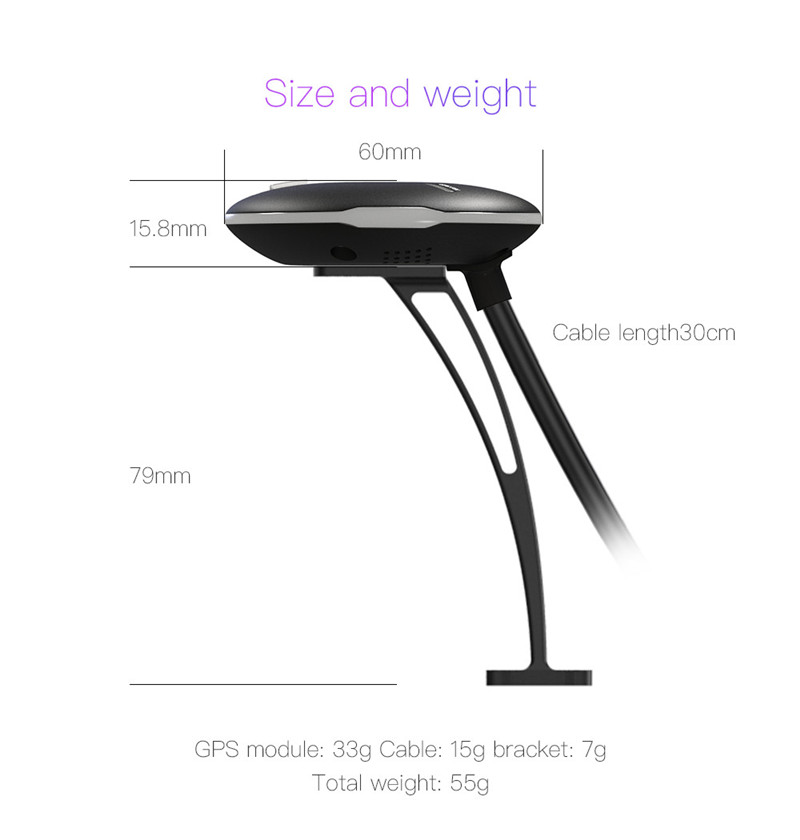

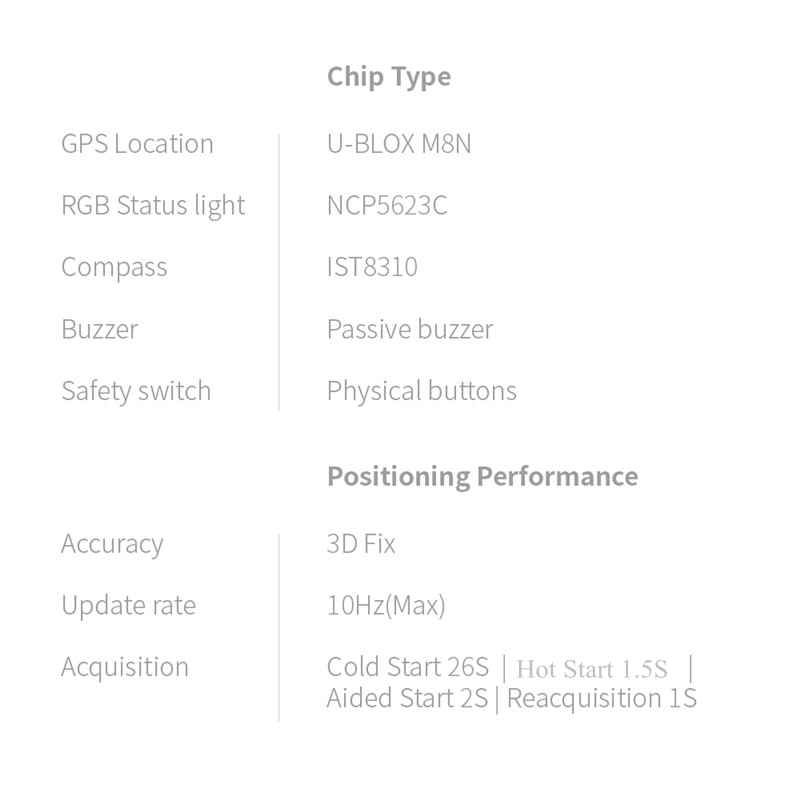

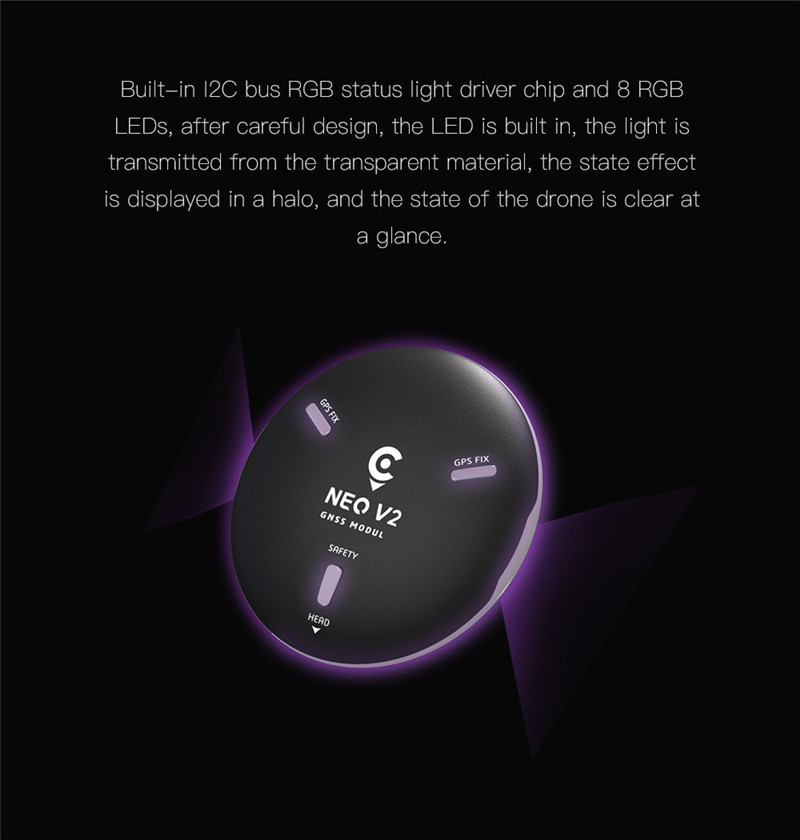

- 1 x NEO GPS
- 1 x GPS Bracket

Note: The green terminals of the cables are for the flight control.
