Pixhawk 4 Mini
The Pixhawk 4 Mini autopilot is designed for engineers and hobbyists who are looking to tap into the power of Pixhawk 4 but are working with smaller drones. Pixhawk 4 Mini takes the FMU processor and memory resources from the Pixhawk 4 while eliminating interfaces that are normally unused. This allows the Pixhawk 4 Mini to be small enough to fit in a 250mm racer drone.

Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the Pixhawk FMUv5 design standard and is optimized to run PX4 flight control software.
Pixhawk4 mini firmware version: 1.8.0 dev

Quick Summary:
☆Main FMU Processor: STM32F765
- 32 Bit ArmCortex-M7, 216MHz, 2MB memory, 512KB RAM
☆On-board sensors:
- Accel/Gyro: ICM-20689
- Accel/Gyro: BMI055
- Magnetometer: IST8310
- Barometer: MS5611
☆GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310
☆Interfaces:
- 8 PWM outputs
- 4 dedicated PWM/Acquisition inputs on FMU
- Dedicated R/C input for CPPM
- Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
- 3 general purpose serial ports
- 2 I2C ports
- 3 SPI buses
- 1 CANBuses for CAN ESC
- Analog inputs for voltage / current of battery
- 2 additional analog input
☆Power System:
- Power Brick Input: 4.75~5.5V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~24V
- Max current sensing: 120A
☆Weight and Dimensions:
 - Dimensions: 38x55x15.5mm
☆Other Characteristics:
 - Operating temperature: -40 ~ 85℃

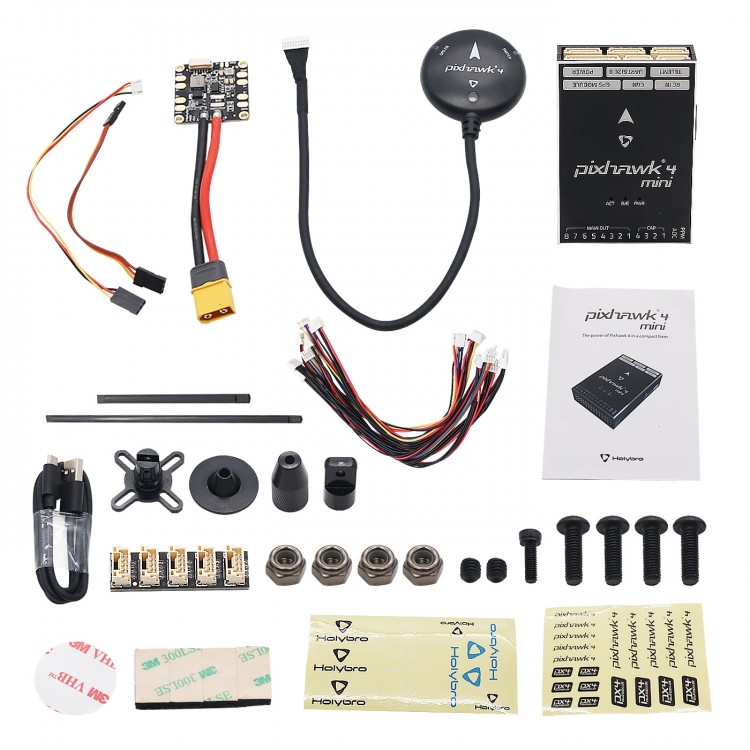

Package 1:
Pixhawk4 mini *1
Pixhawk4 GPS MODULE *1
PM06 V2 Power Management Board *1
I2C splitter Board *1
6 to 6 pin cable (power) *1
4 to 4 pin cable (CAN) *1
6 to 4 pin cable (Data) *1
6 to 4 pin and 4 pin "Y"cable *1
6 to 6 pin cable(Debug) *1
PPM/SBUS out cable *1
XSR receiver cable *1
DSMX receiver cable *1
SBUS receiver cable *1
USB cable *1
'X'type folding pedestal mount *1
70mm & 140mm carbon rod stand off *2
Foam Set *1
Pixhawk4 mini Quick Start Guide *1

Package 2:
Pixhawk4 mini *1
PM06 V2 Power Management Board *1
I2C splitter Board *1
6 to 6 pin cable (power) *1
4 to 4 pin cable (CAN) *1
6 to 4 pin cable (Data) *1
6 to 4 pin and 4 pin "Y"cable *1
6 to 6 pin cable(Debug) *1
PPM/SBUS out cable *1
XSR receiver cable *1
DSMX receiver cable *1
SBUS receiver cable *1
USB cable *1
Foam Set *1
Pixhawk4 mini Quick Start Guide *1
