Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $18.58 | $18.20 | $17.63 | $16.87 | Contact US |

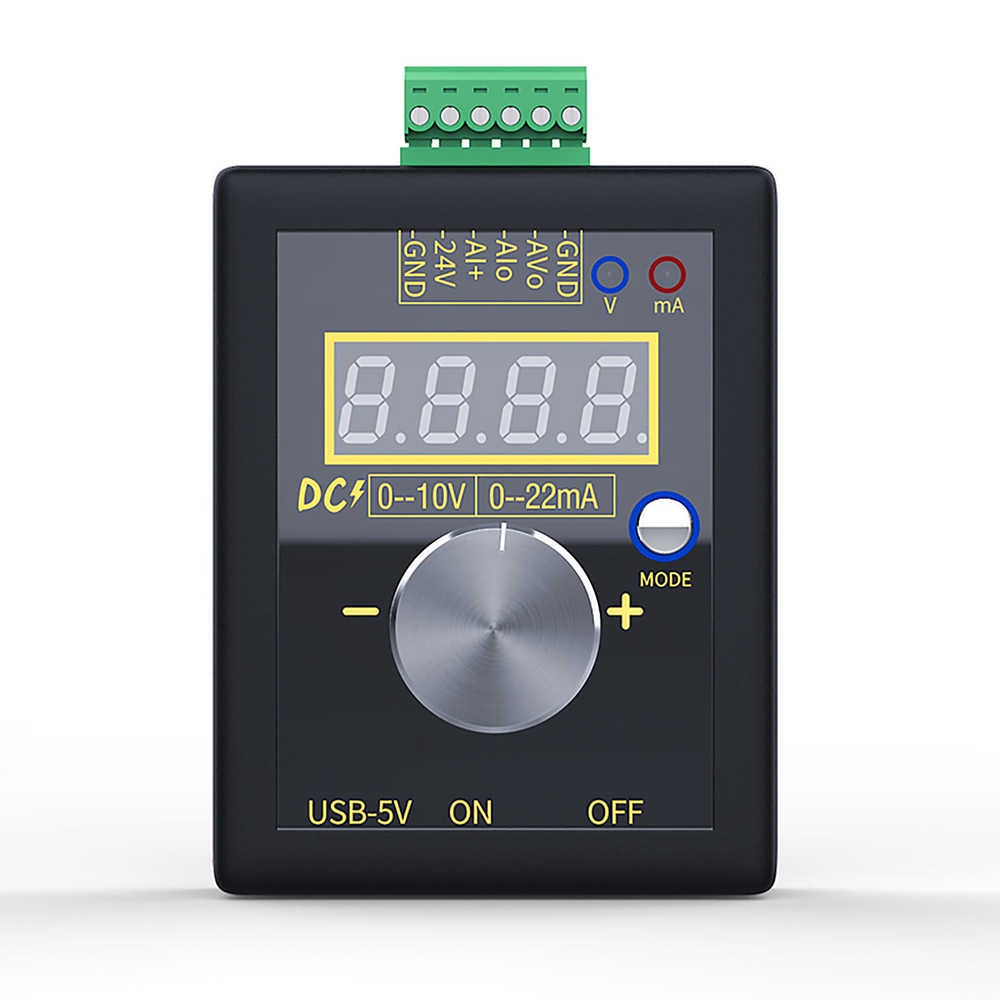

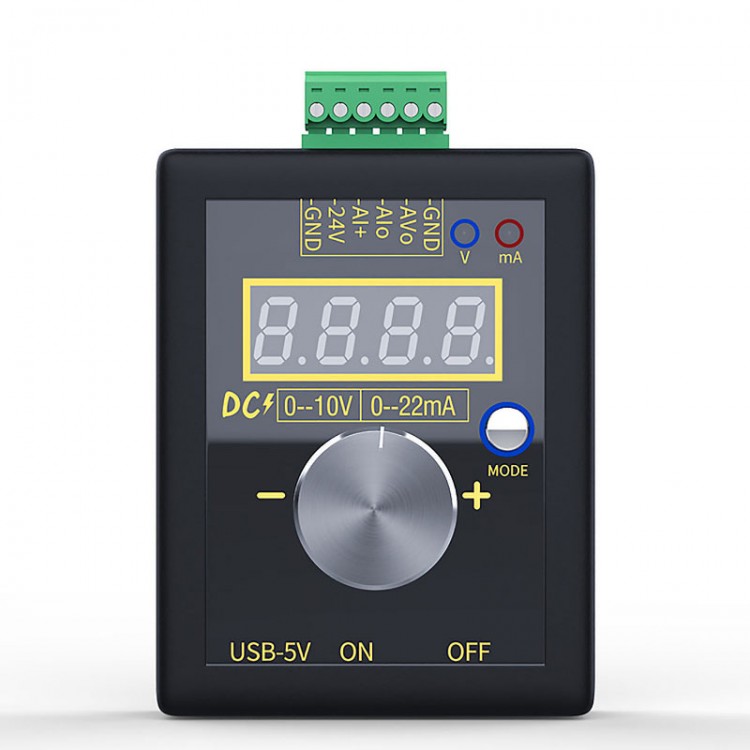

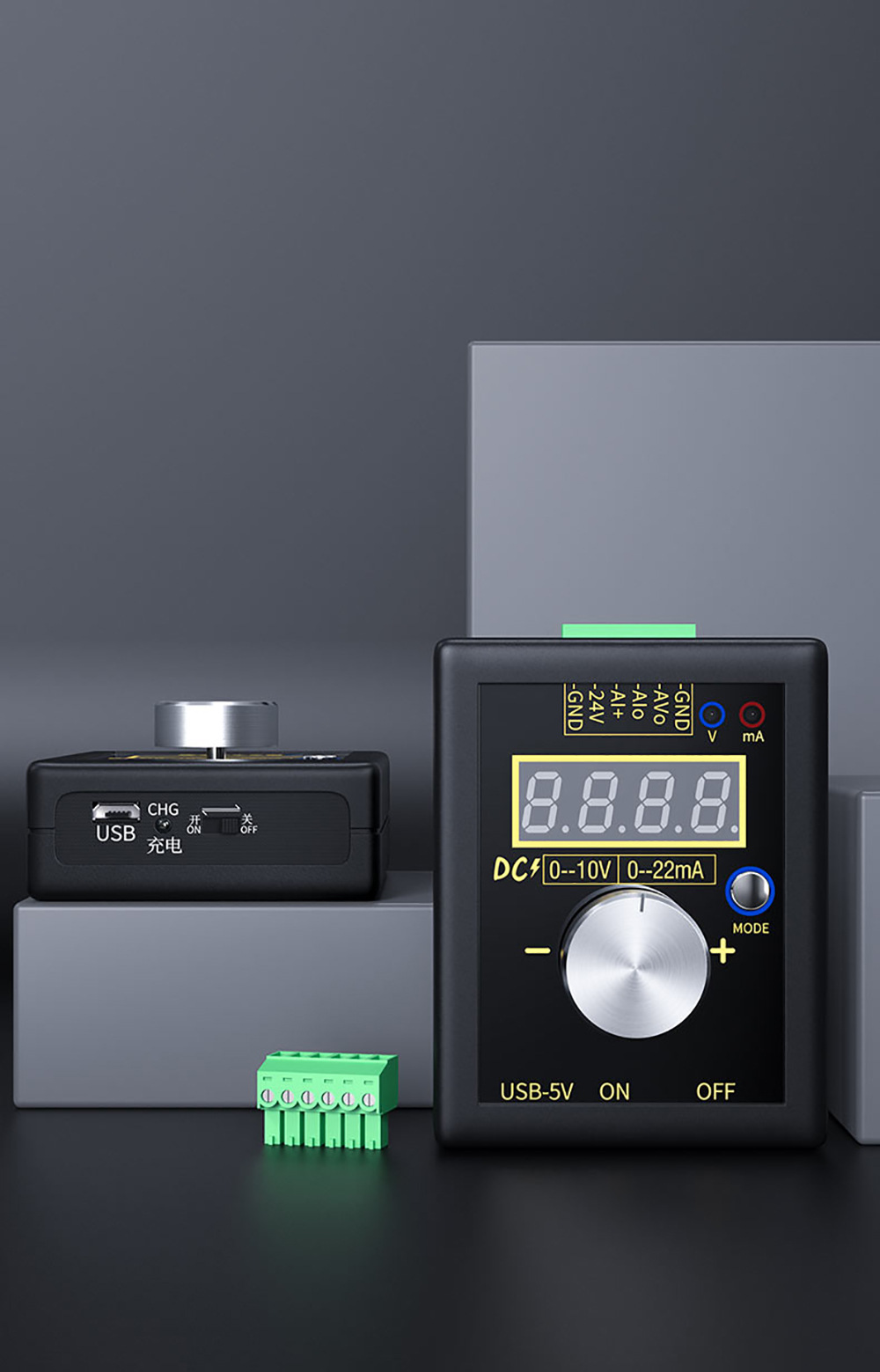

Current Voltage Signal Generator 0-10V/0-22MA SG-002 Without Battery 4-Digit Adjustable Brightness
Description:

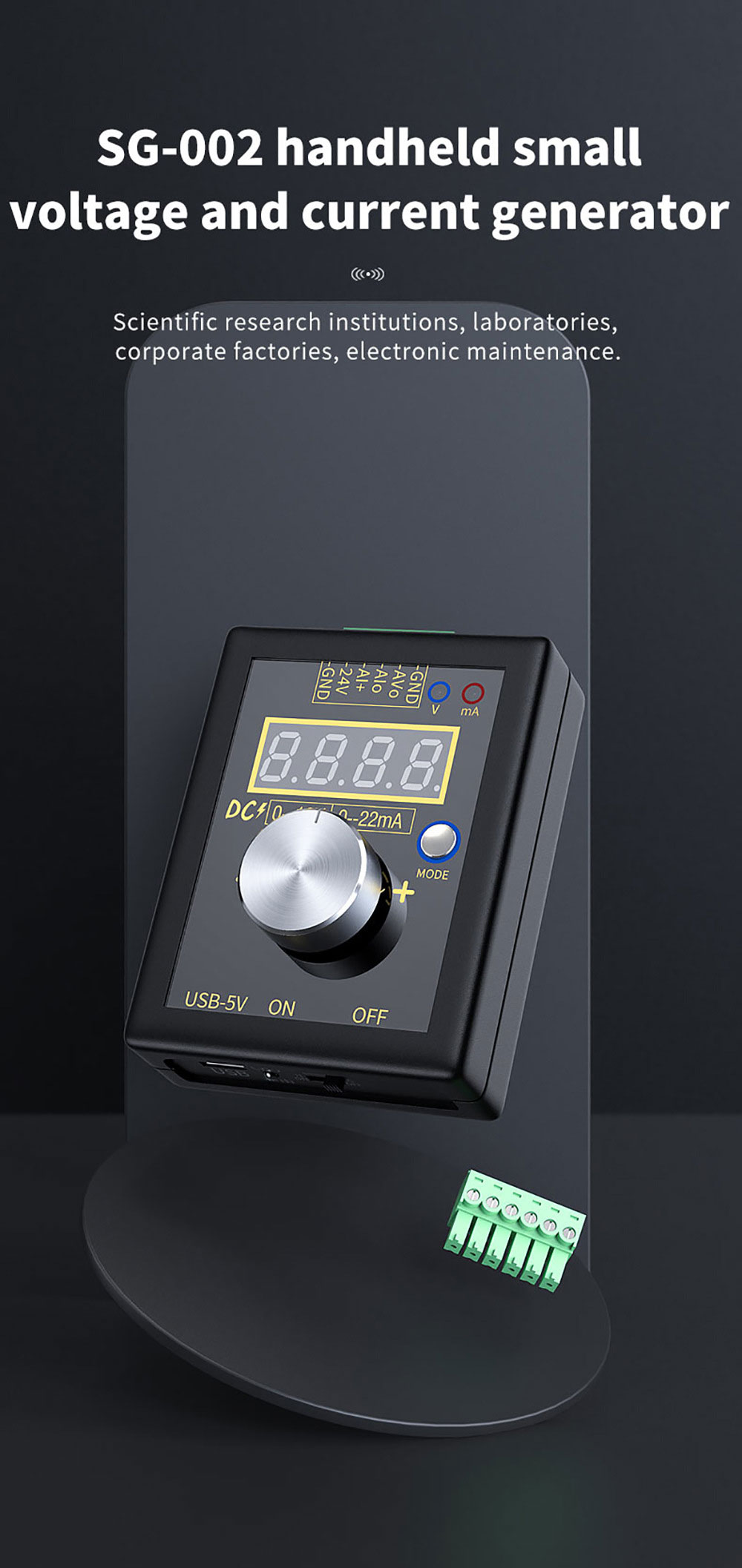

This handheld small voltage and current singal generator can be used to scientific research, laboratories, corporate factories, electronic maintenance and so on.
Features:

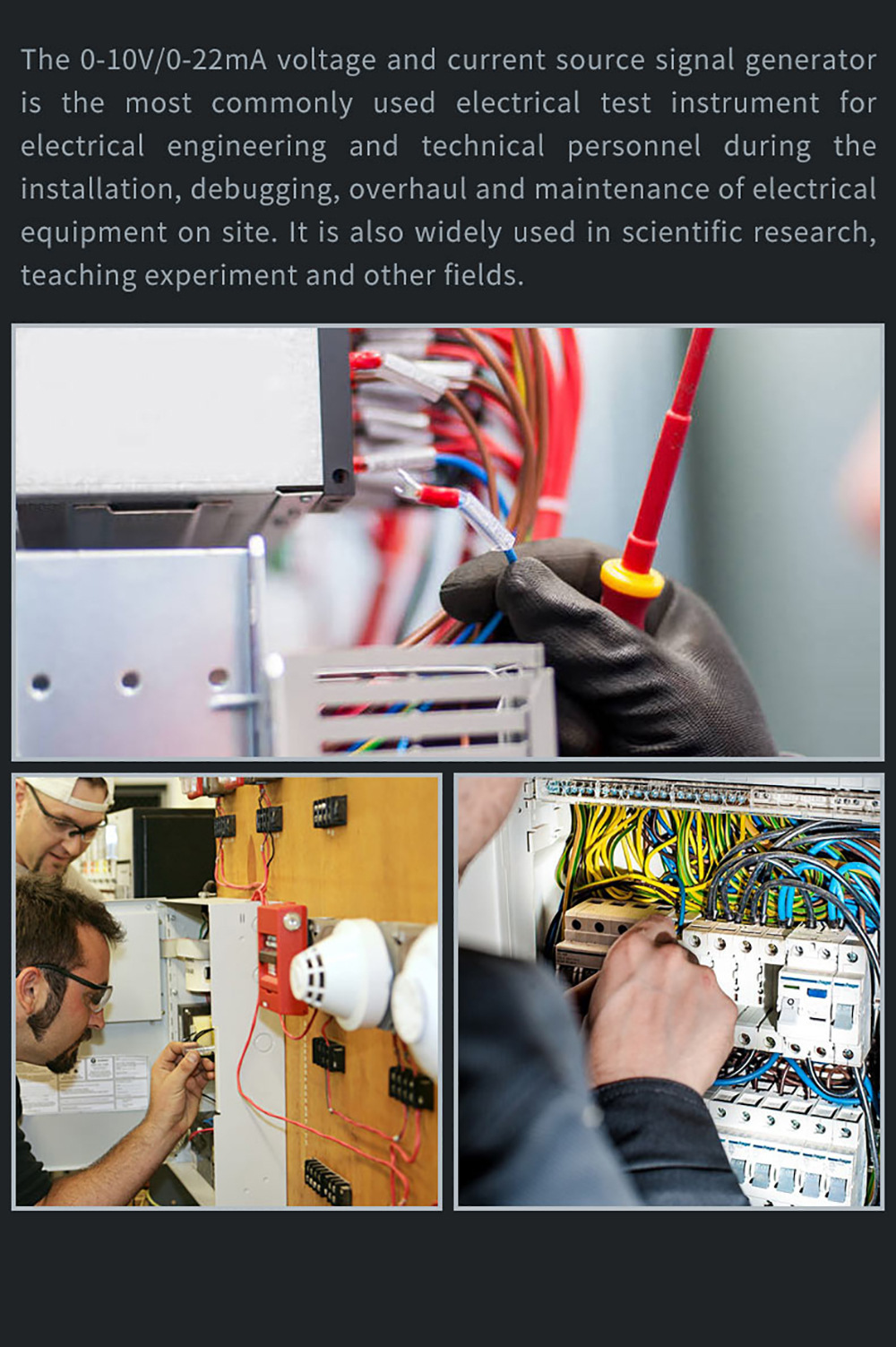

- This voltage and current singal generator is the most commonly used electrical test instrument for electrical engineering and technical personnel during the installation, debugging, overhaul and maintenance of electrical equipment on site

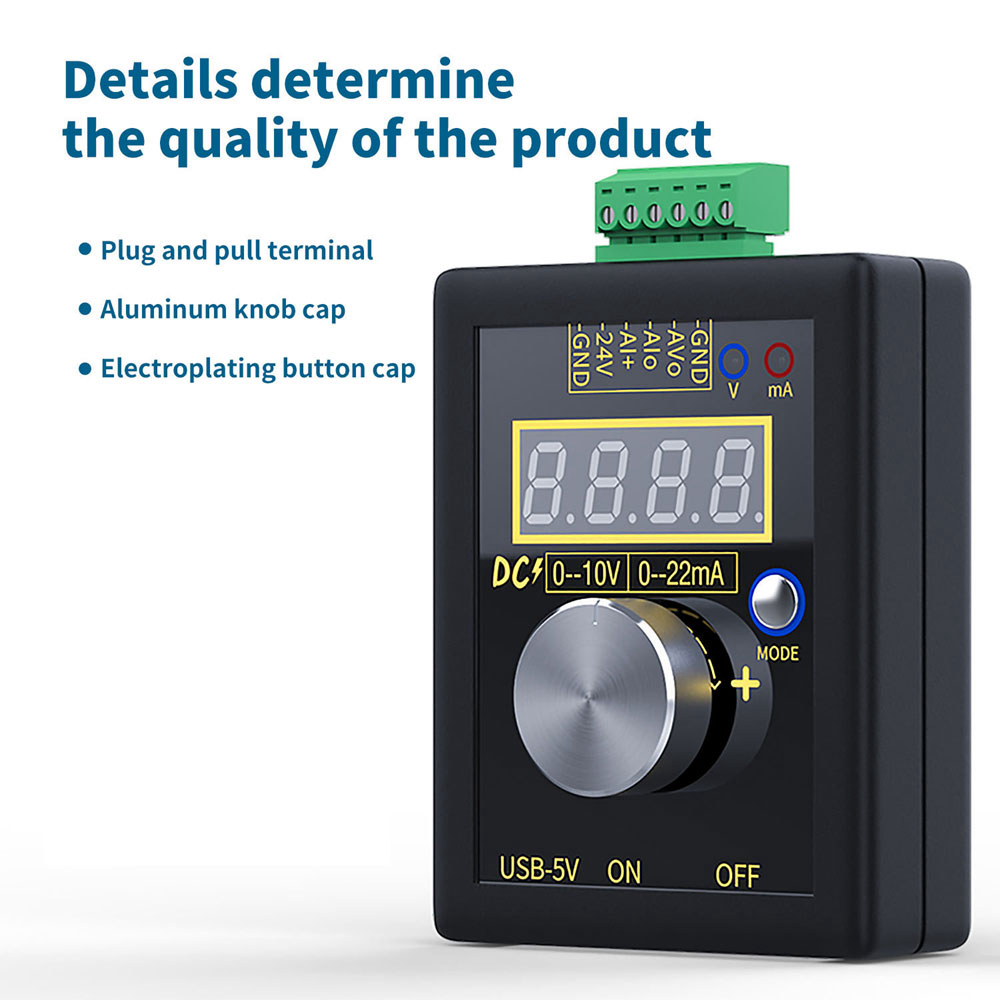

- Pluggable terminal blocks, safe and convenient wiring

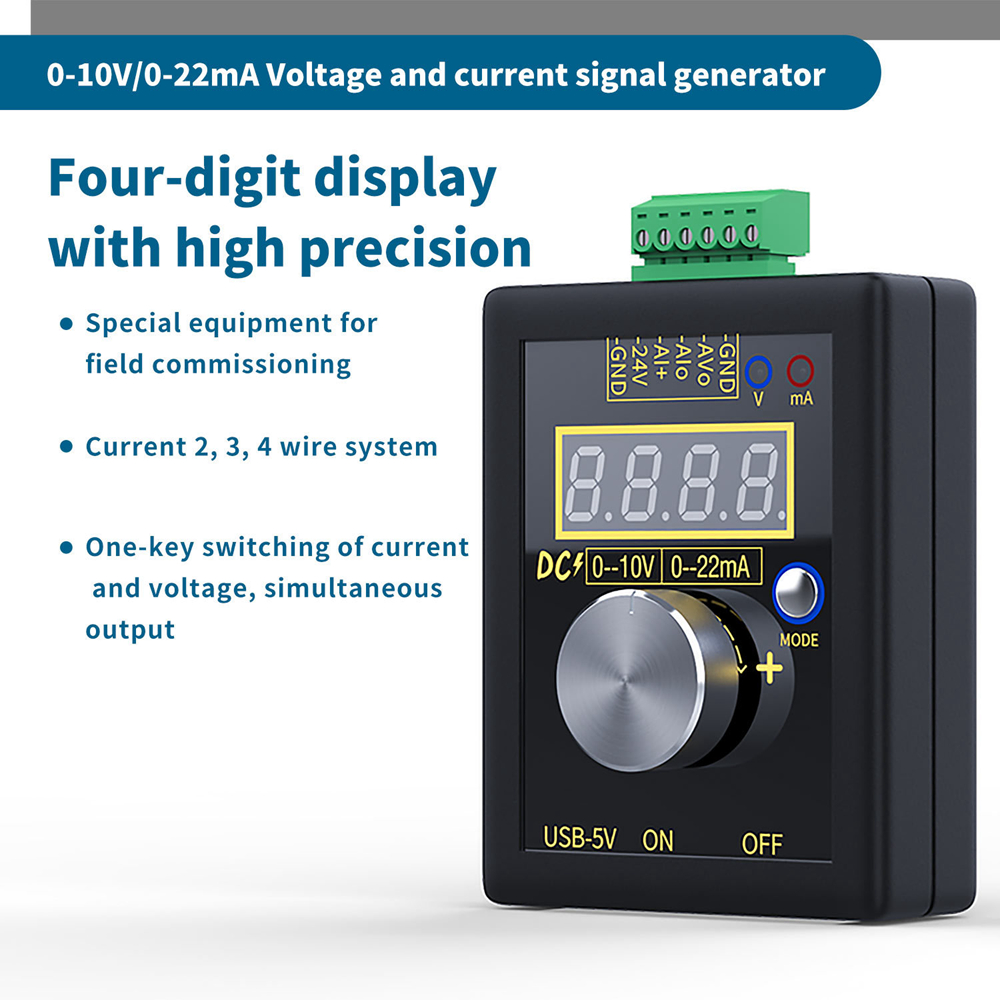

- 4-digit high definition digital tube, the display brightness is uniform and adjustable (1-8 brightness)

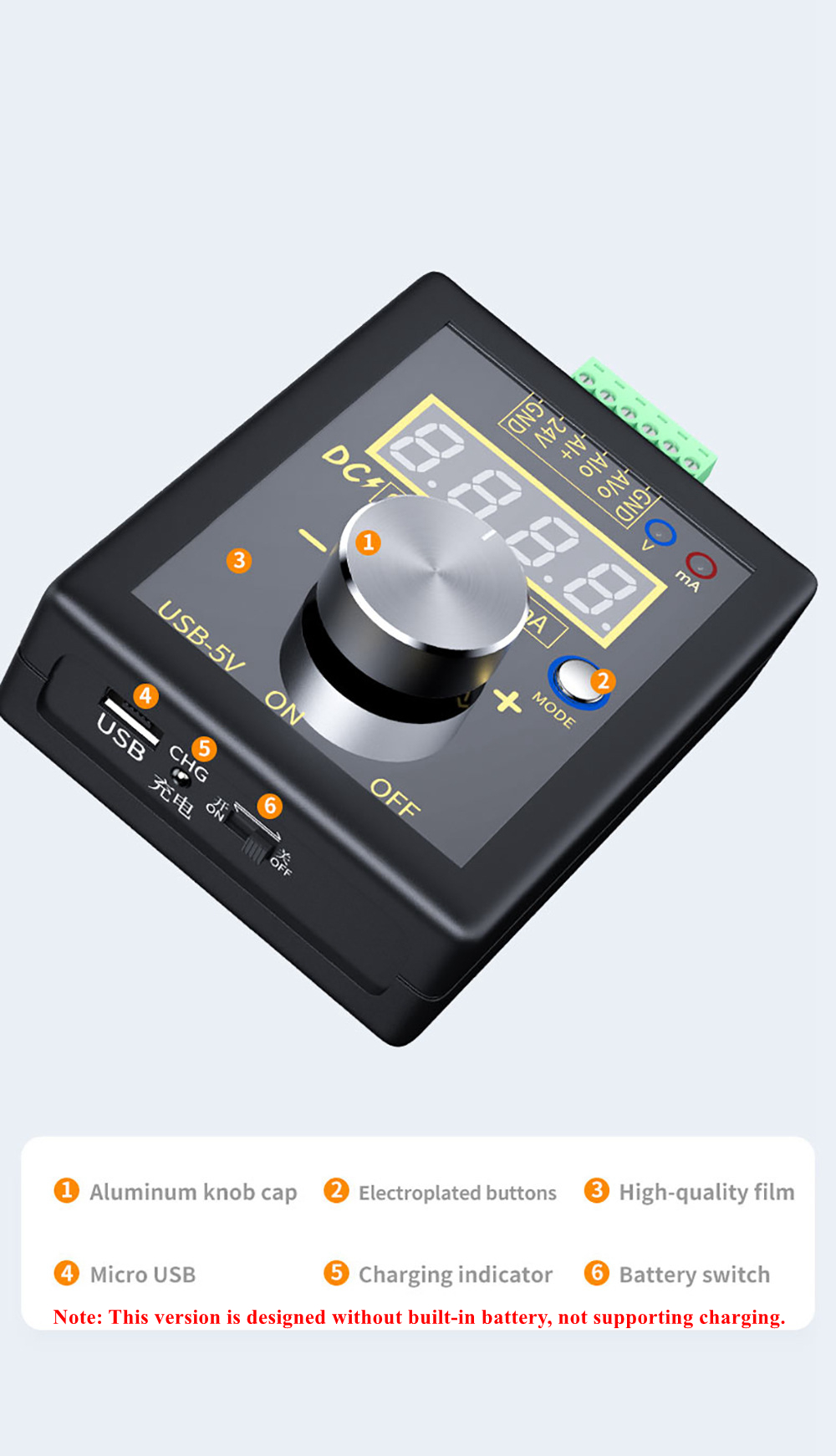

- Aluminum knob cap, electroplated buttons, high quality film
- DC 15-30V external power supply, which can share the 24V power supply of PLC and other equipment
- MicroUSB universal interface, can be connected to power bank, charger, computer USB port and so on

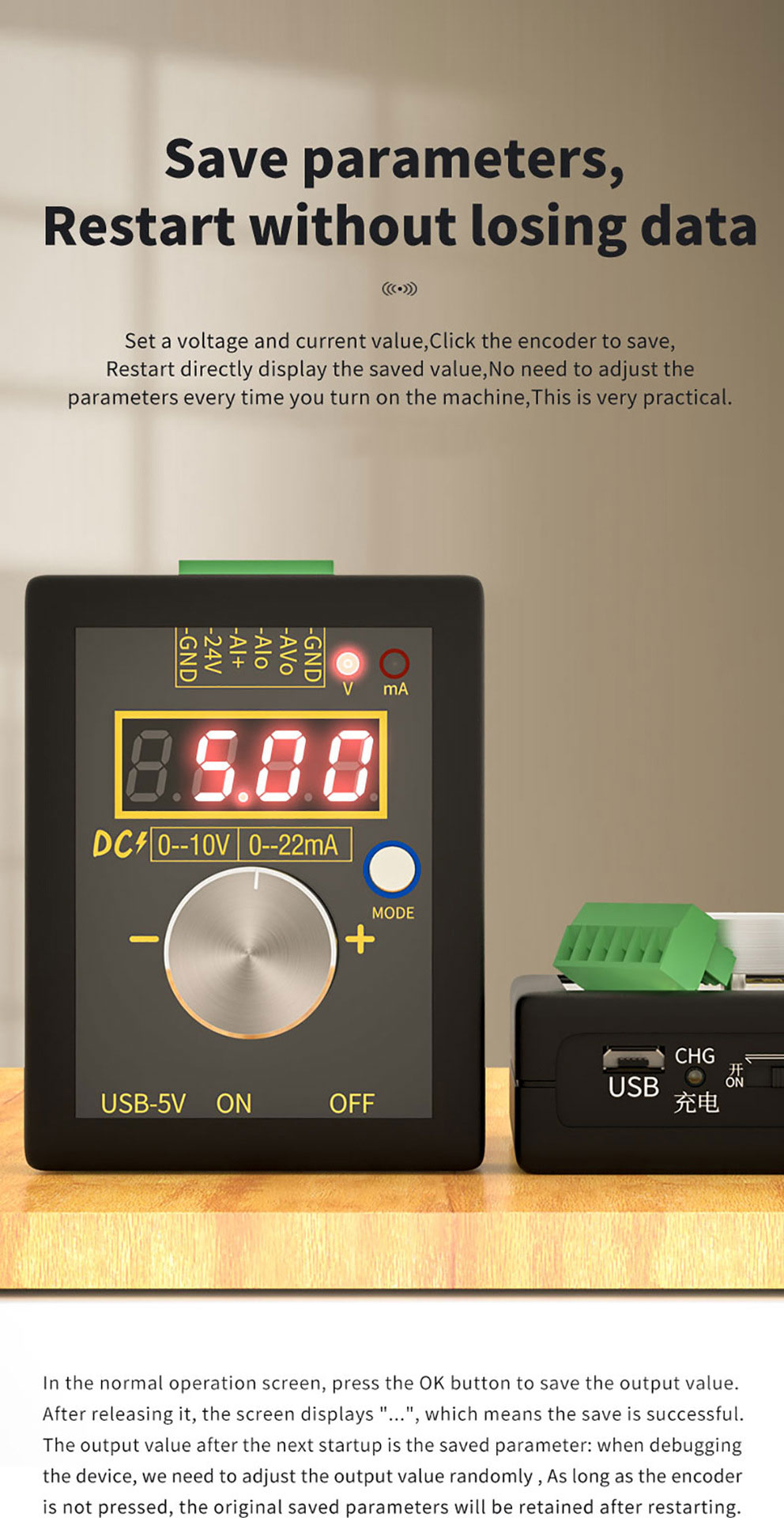

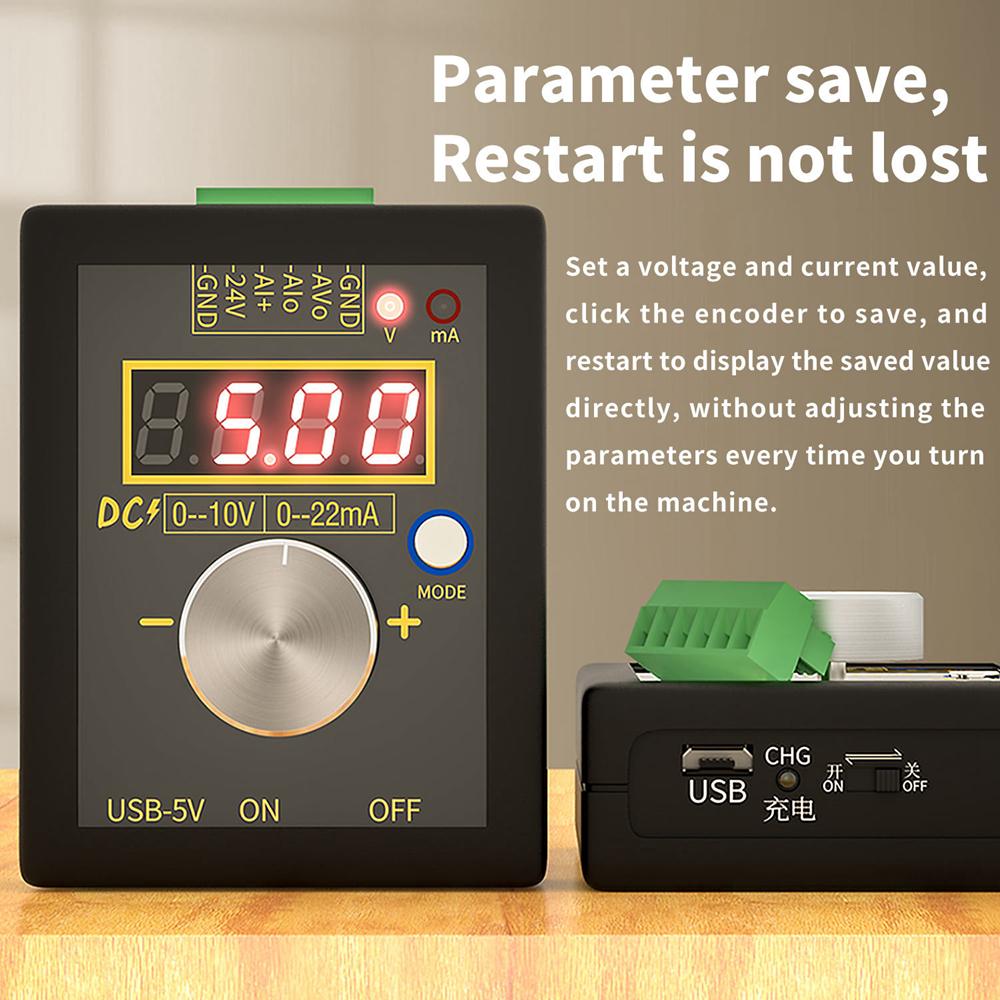

- In the normal operation screen, save a voltage and current value, cilck the encoder to save, after releasing the OK button ,the screen displays..., which means the save is successful. Restart directly display the saved value, no need to adjust the parameters every time when you turn on the machine, which is very practical

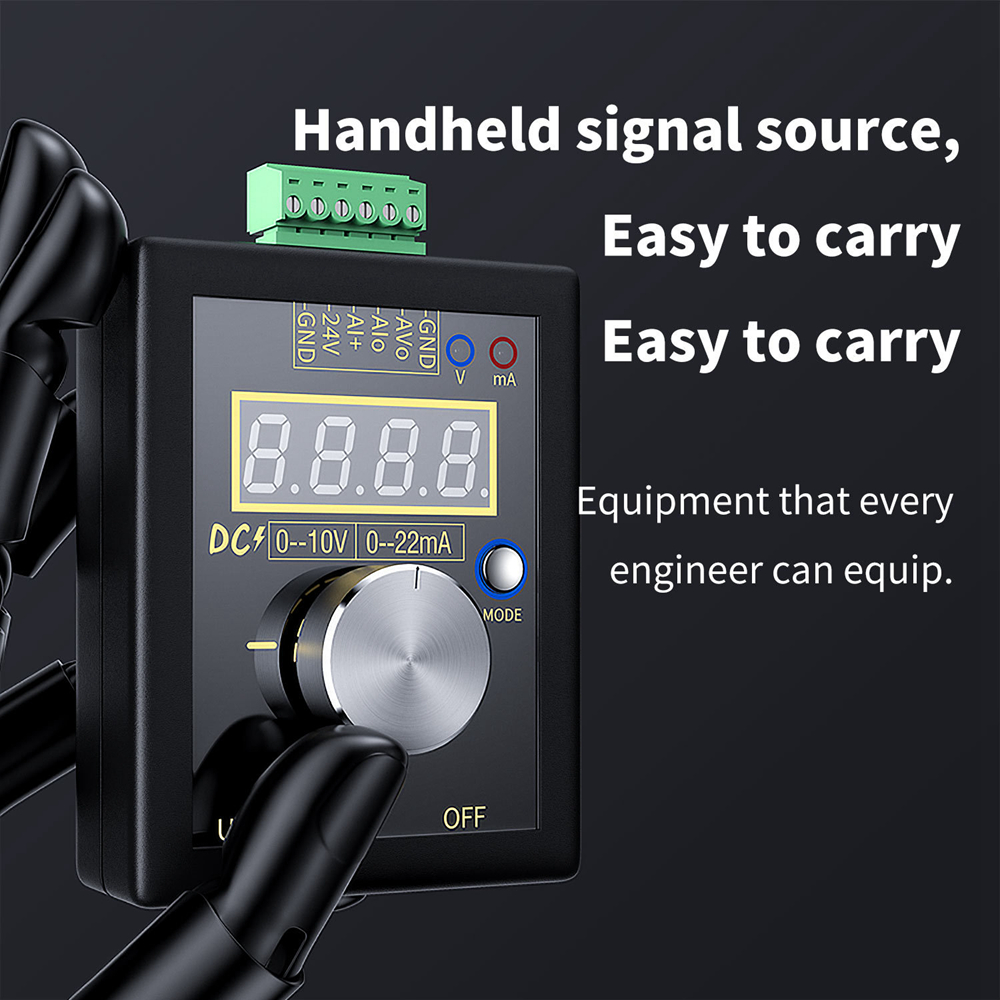

- Easy to carry and small size, the best choice for on-site debugging
Specifications:
- Model: SG-002

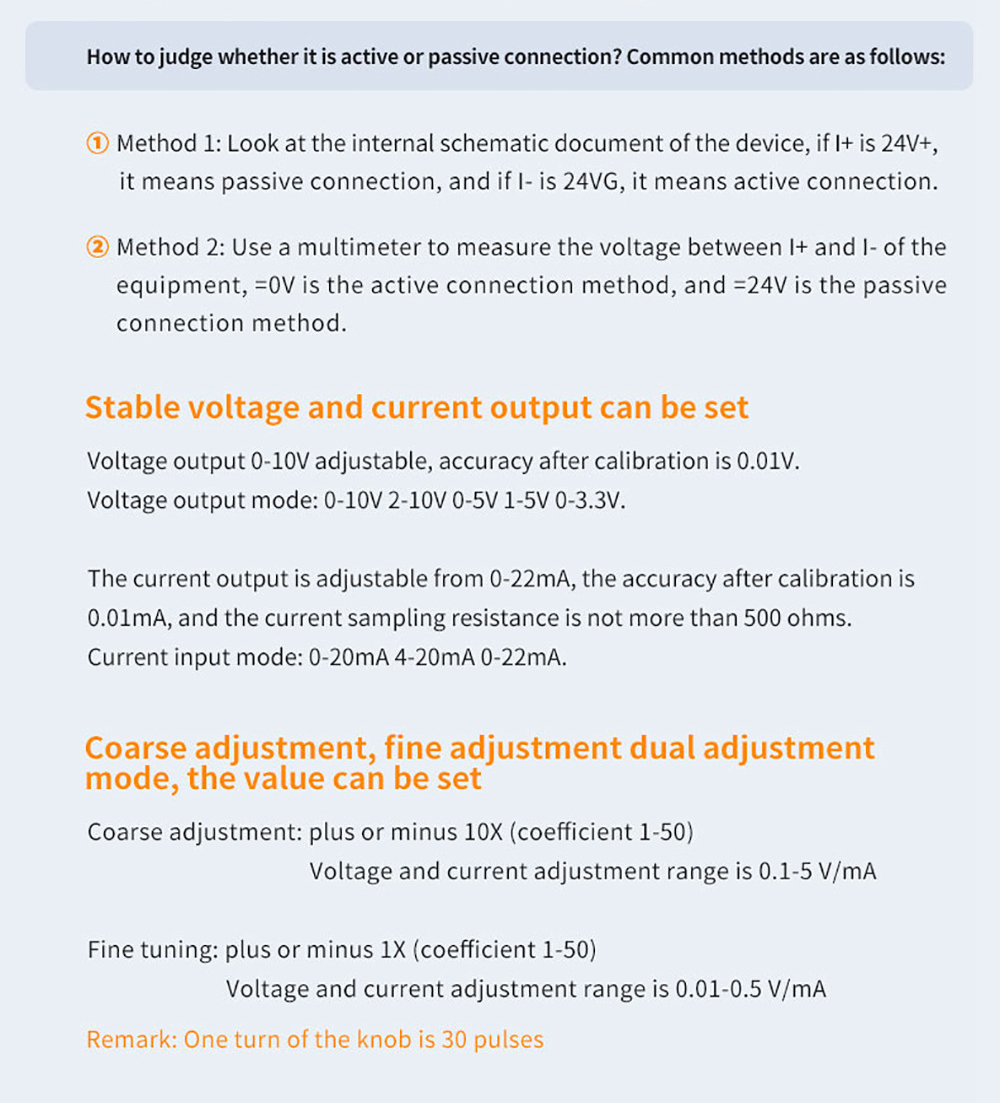

- Voltage output: 0-10V
- Current output: 0-22mA
- Product size: 89 x 69 x 28mm
- Material: ABS
- Color: Black

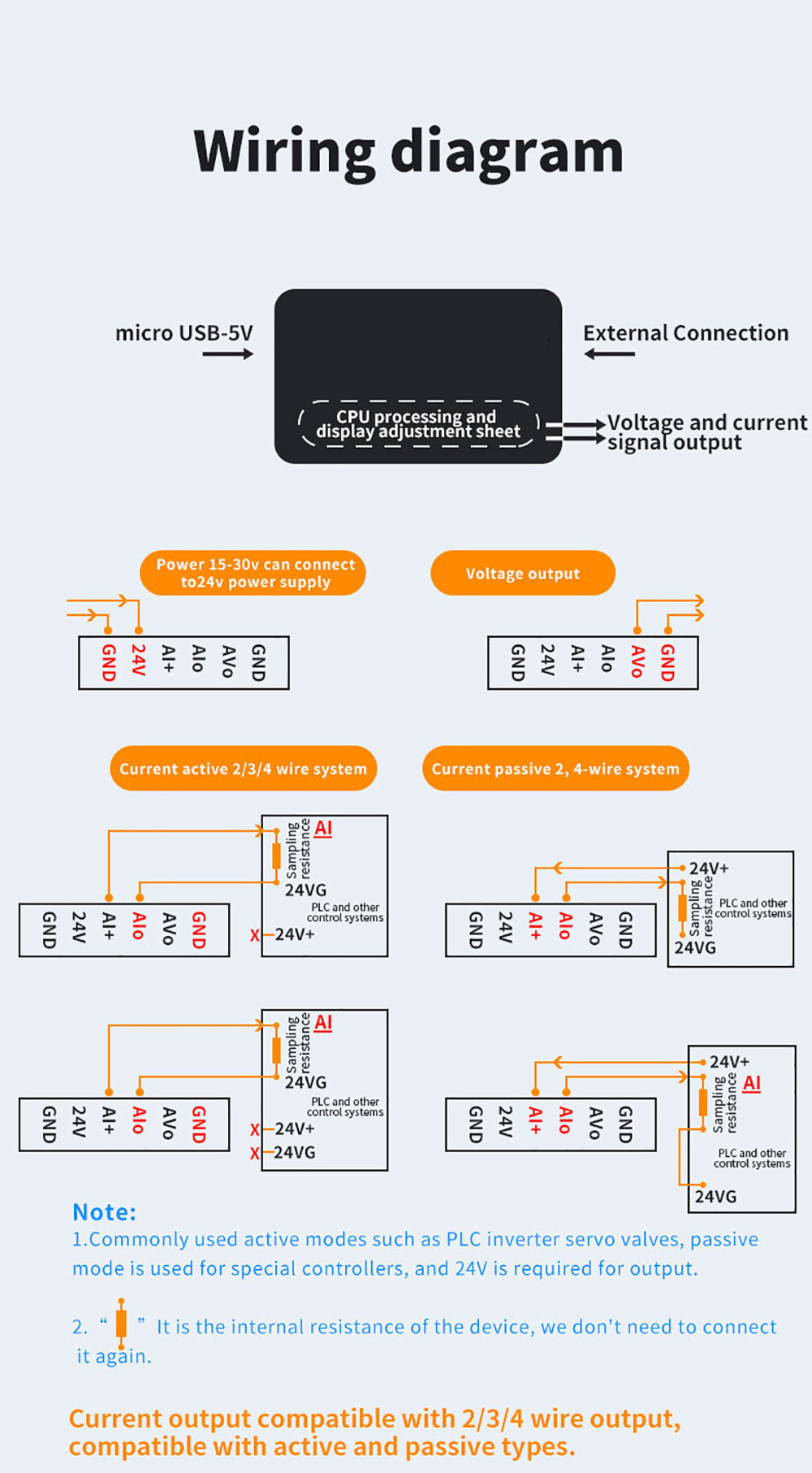

Power Supply Methods:
1.External Power Supply: DC15V-30V external power supply,which can share the 24V power supply of PLC and other equipment
2.MicroUSB Universal Interface: MicroUSB universal interface can be connected to power bank/charger/computer USB port, etc.
Package Included:
- 1 x Set of Signal Generator
Note:
- This version is designed without built-in battery, not supporting charging.
- Pictures are for reference only.
