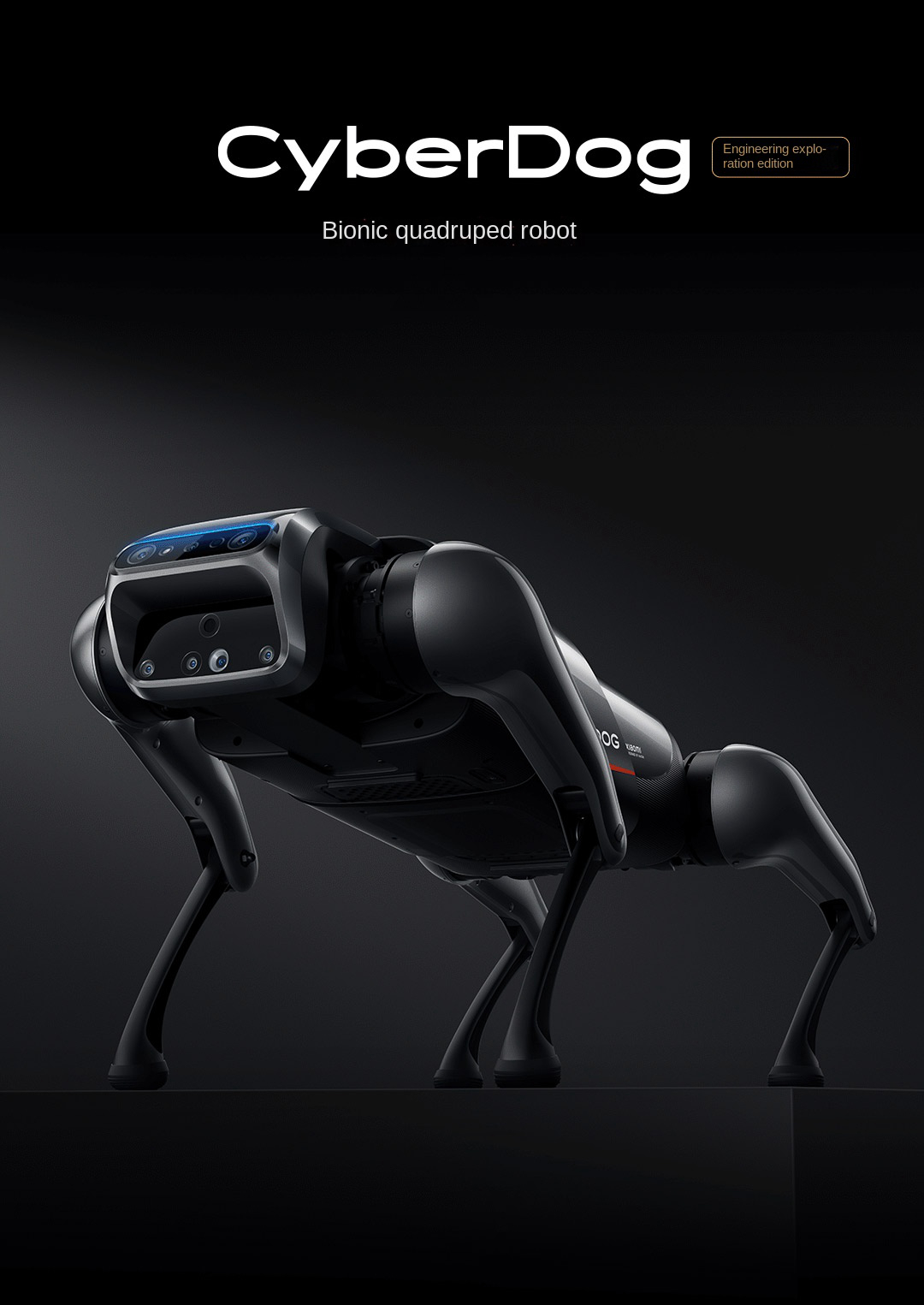

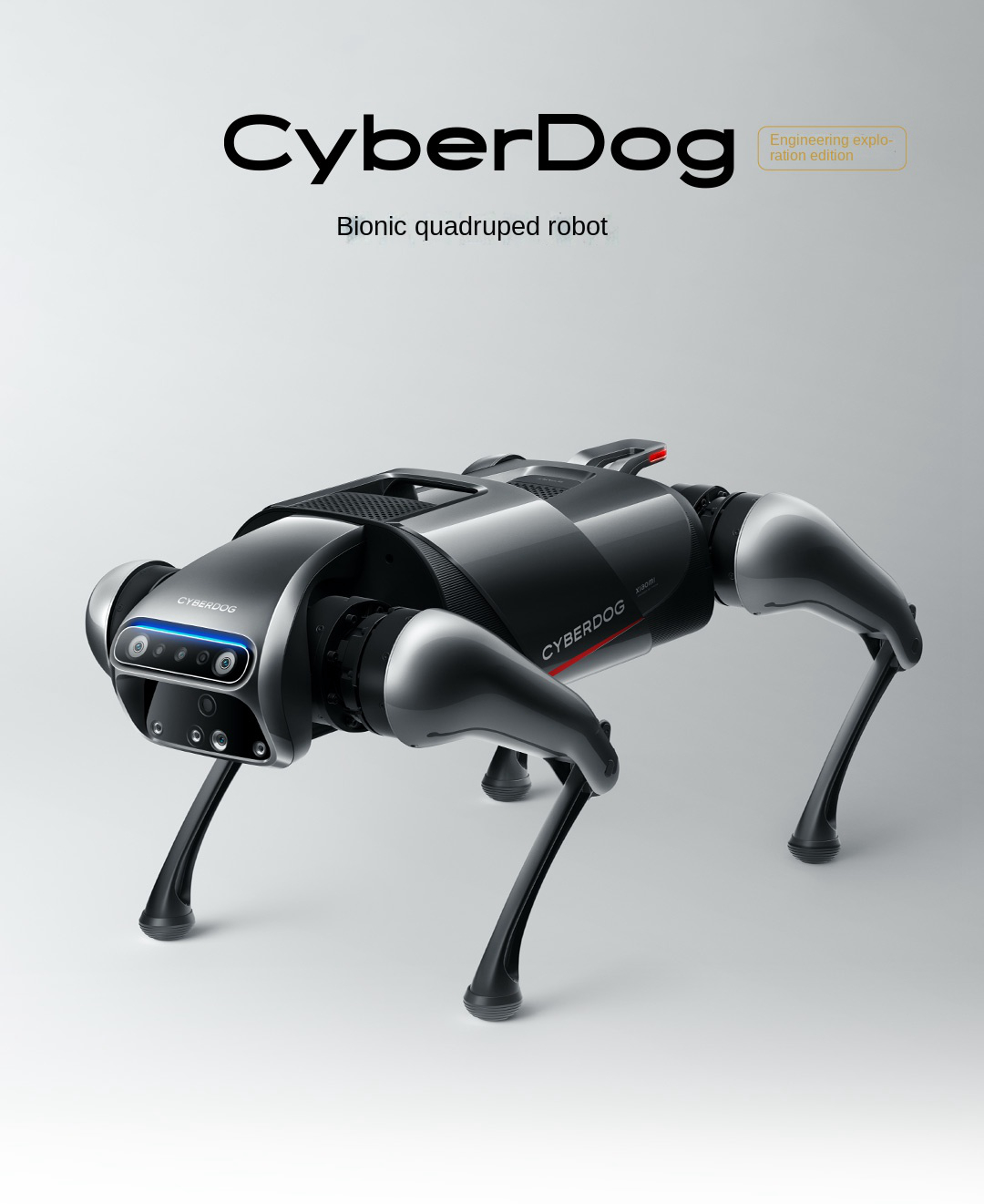

Cyberdog Bionic Quadruped Robot Smart Robot Artificial Intelligence Robot Voice Interaction for Xiaomi

Cyberdog Bionic Quadruped Robot Smart Robot Artificial Intelligence Robot Voice Interaction for Xiaomi

Basic information:
- Product Name: Cyberdog bionic quadruped robot
- Product model: 21051191C
- Product Size: Standing (Length: 771mm/30.4", Width: 355mm/14", Height: 400mm/15.7"); Get Down (Length: 807mm/31.8", Width: 406mm/16", Height: 206mm/8.1")
- Weight of the whole machine (Including battery): 14kg/30.9lb
- Degree of freedom: Complete machine 12DOF, single leg 3DOF

Operating System:
- For Ubuntu 18.04 + ROS 2

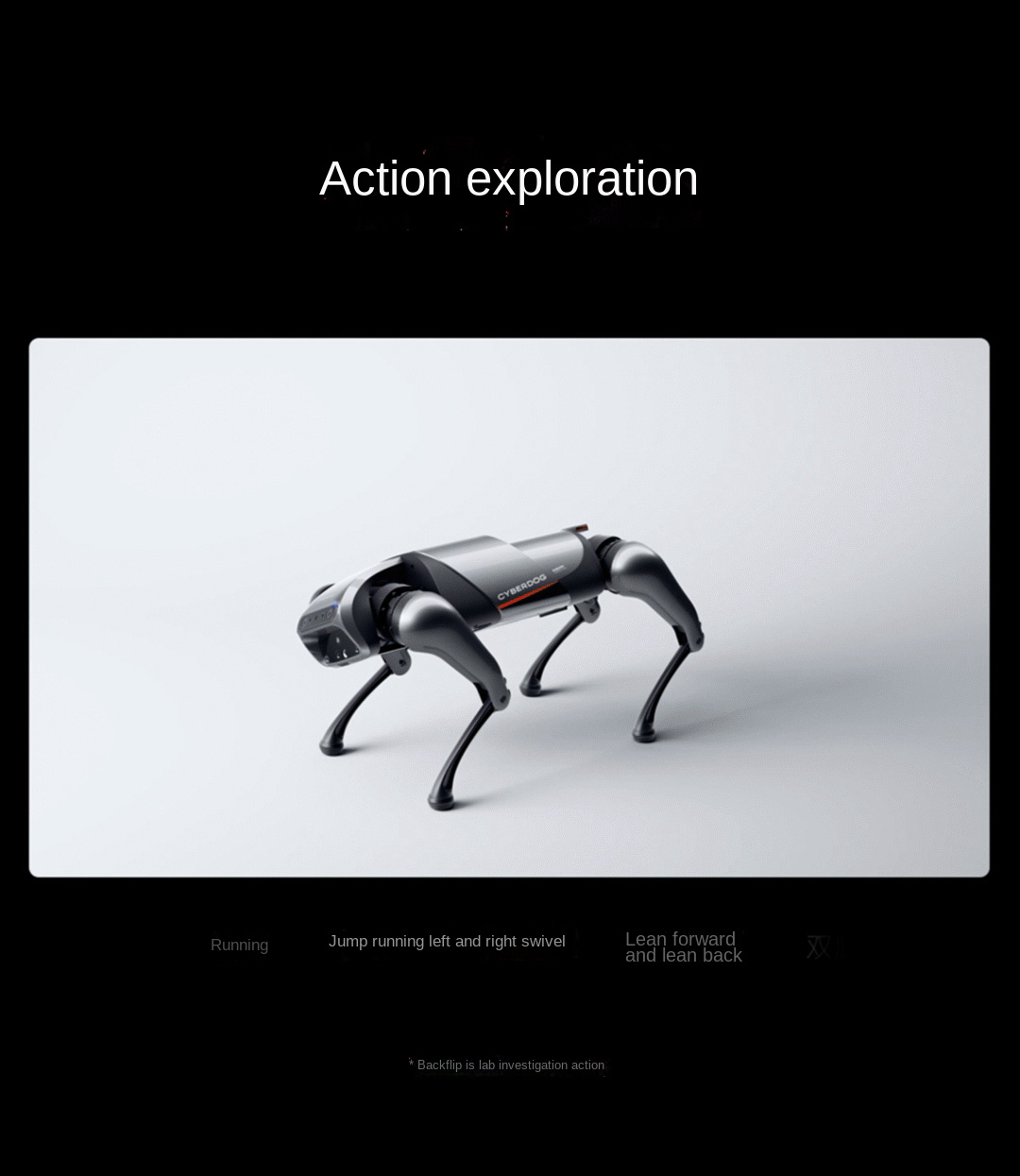

Athletic Performance:
- Gait support: Resume standing |Posture display|Slow down|Slow running
- More capabilities: Changing the place resume roll|Shake hands and dance|Circle|Sit down
- Maximum load: 3kg/6.6lb
- Movement speed: MAX 3.2m/s*
- Dynamic balance: Support
- Changing the place recovery: Support
- Fall protection: Support

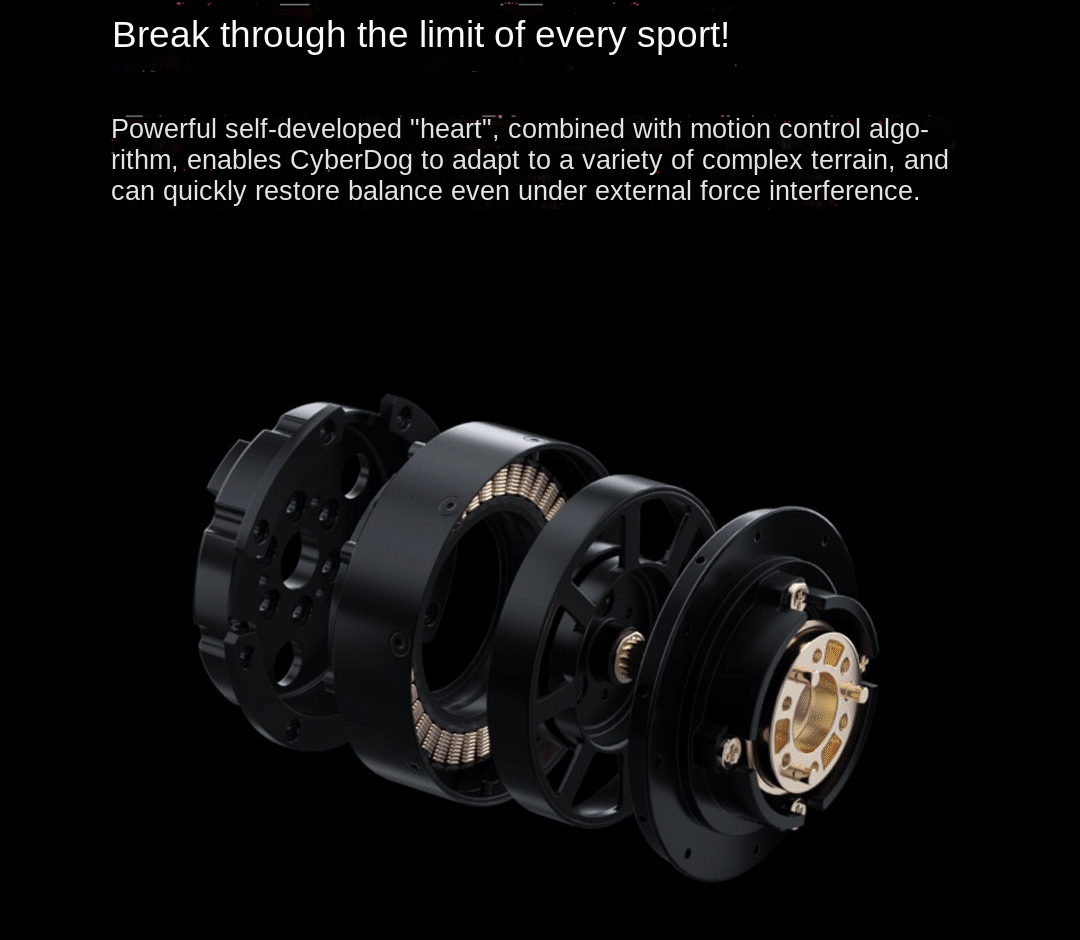

Motor Information:
- Motor size: Diameter 93.9 x 54.7mm/3.7 x 2.2"
- Motor weight: 560g/1.2lb
- Operating voltage: 12-30V
- Rated voltage: 24V
- Maximum current: 40A
- Maximum torque: 32N·m
- Maximum speed: 220rpm
- Communication method: CAN 2.0
- Encoder resolution: 14-bit

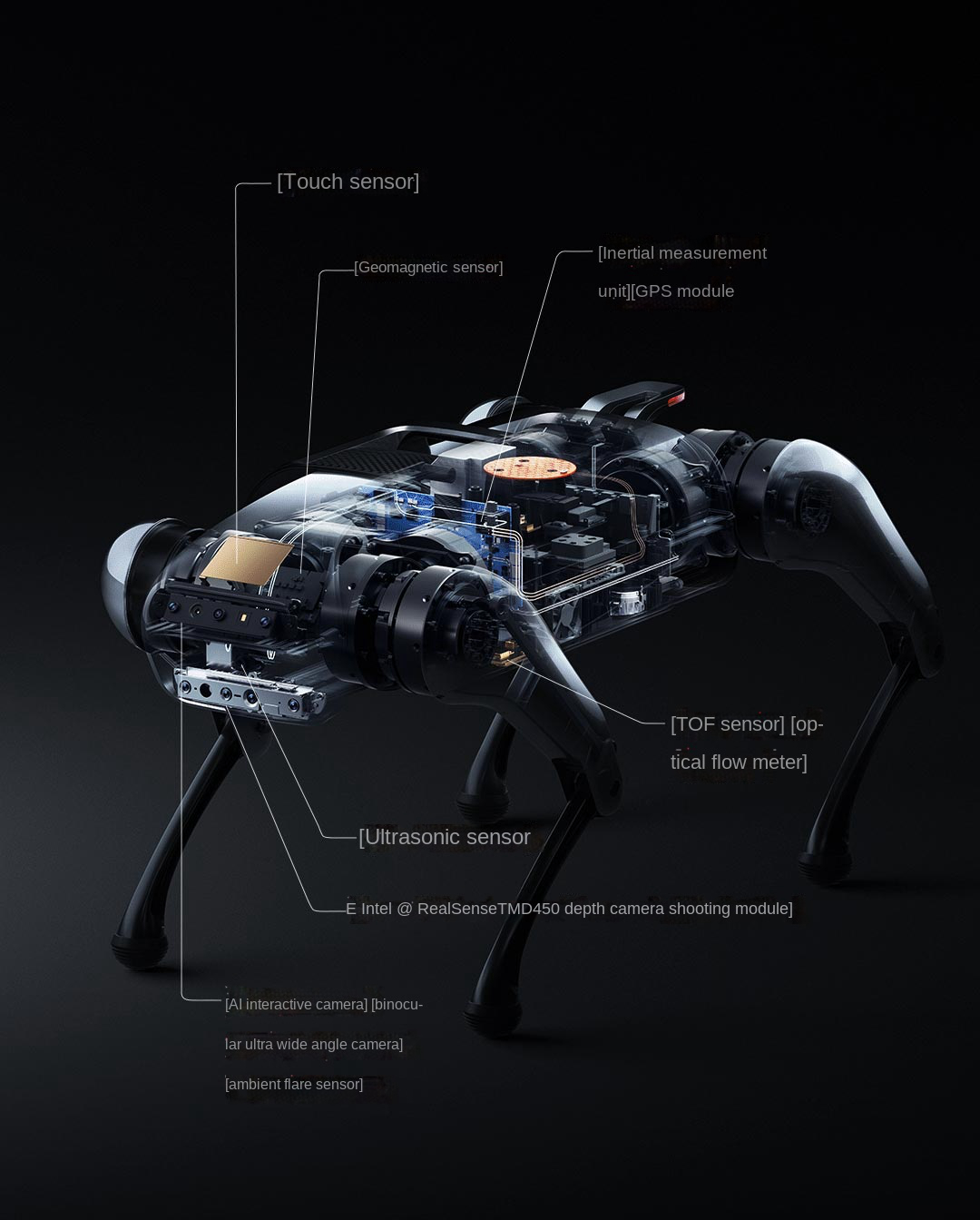

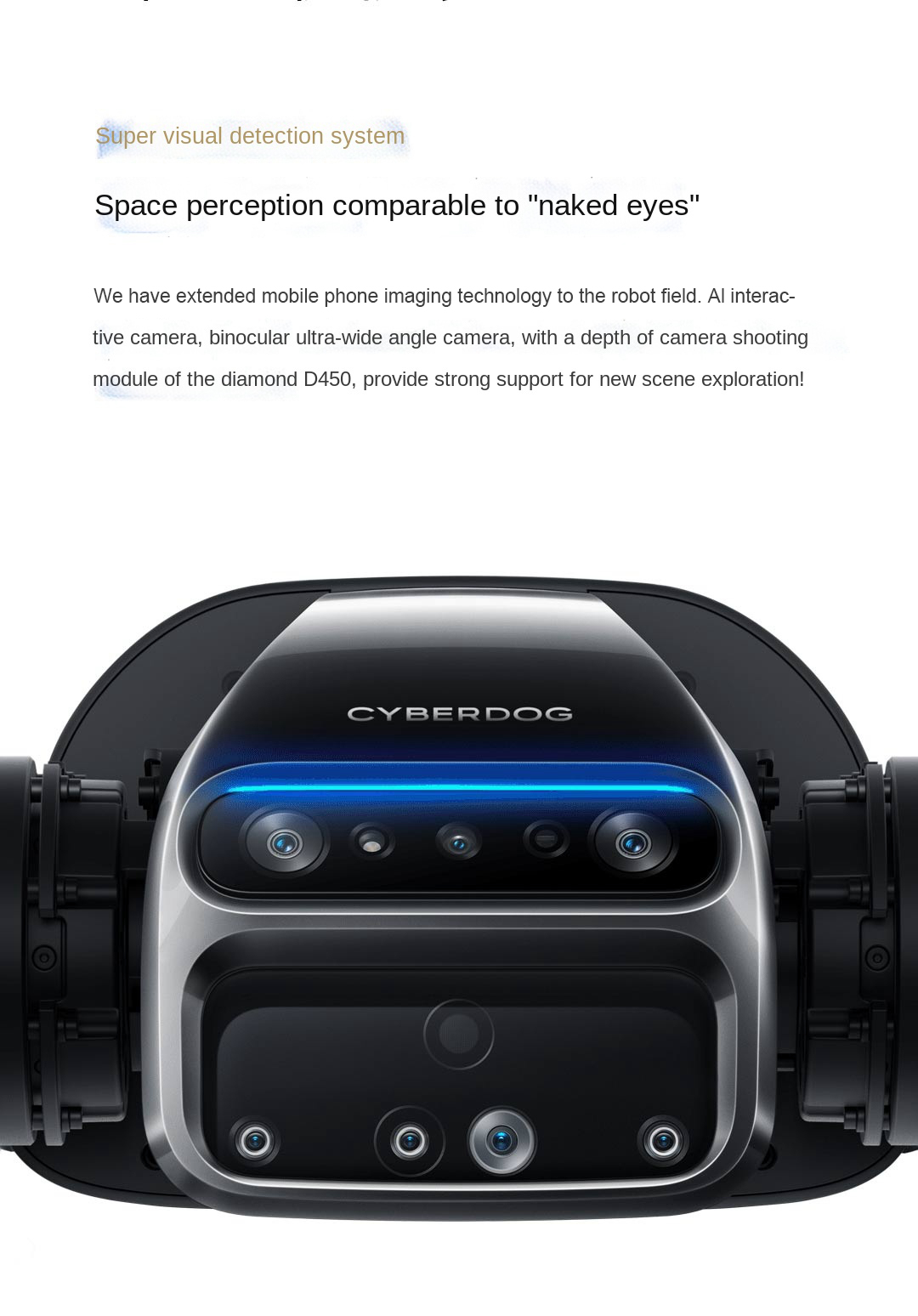

Visual system:
- Support capability: Map building, autonomous positioning, navigation planning, automatic obstacle avoidance, facial recognition, facial body following, HD image legend shooting the image
- Depth photography camera: For Intel Realsense, TMD450
- Al interactive camera: 13MP
- Binocular ultra wide angle camera: 2MP

Voice system:
- Voice interaction: AI's voice technology
- Microphone array: 6MIC ring array
- Wake-up words: Iron Egg
- Action Command: Stand up, get down, step back, turn around, dance, and shake hands

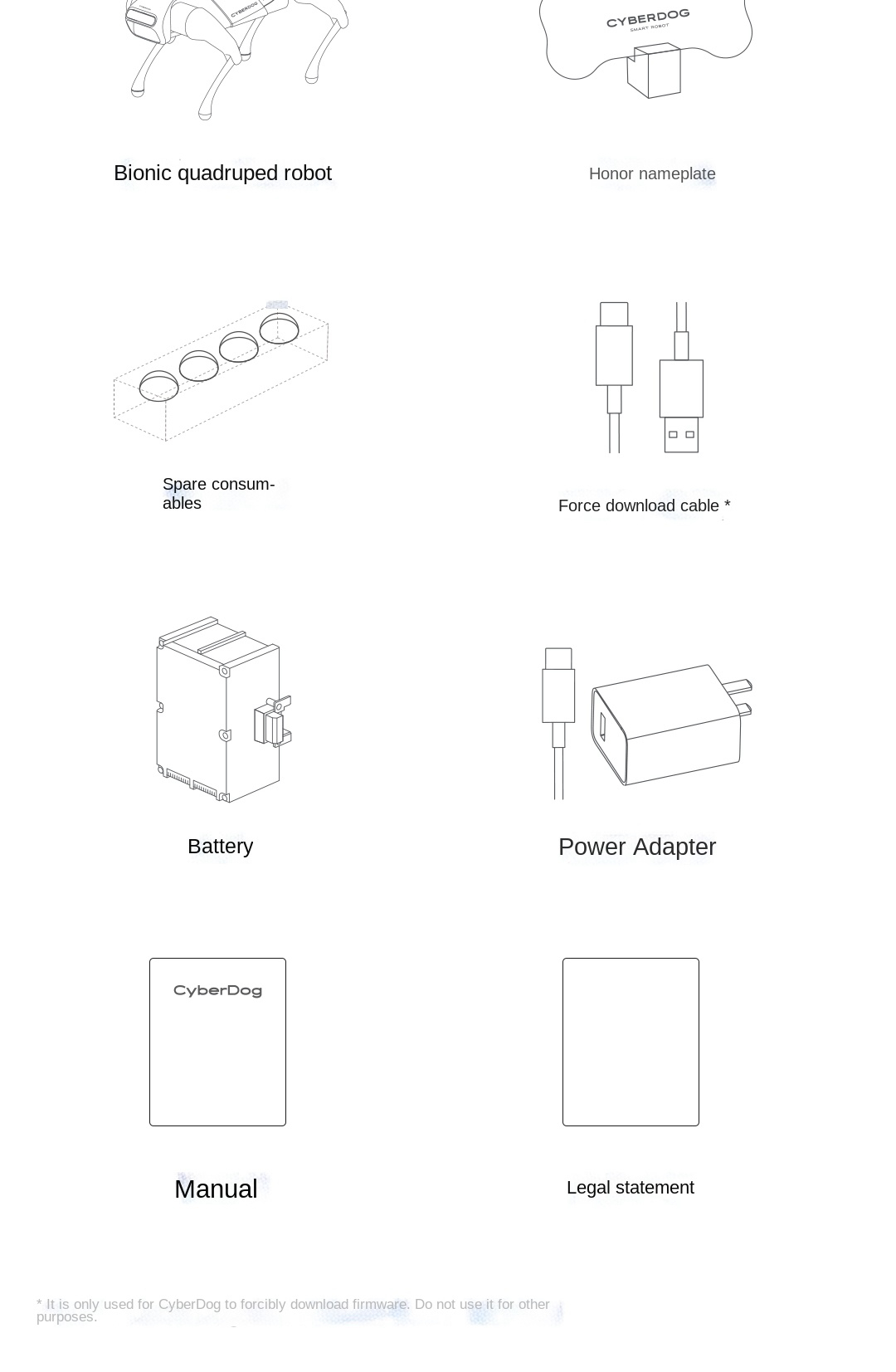

Package Included:
