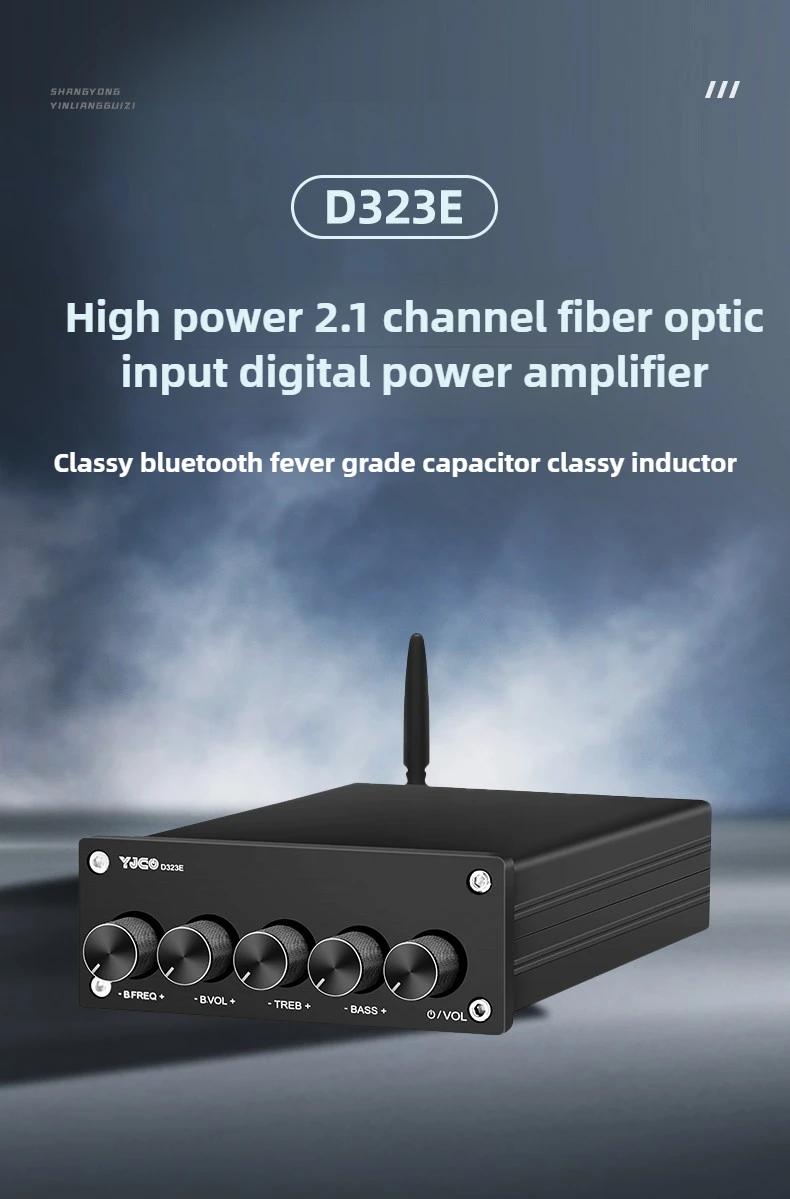

D323E TPA3223 2.1 Channel 100Wx2+200W High Power HiFi Digital Power Amplifier QCC3034 Bluetooth5.1

Description:

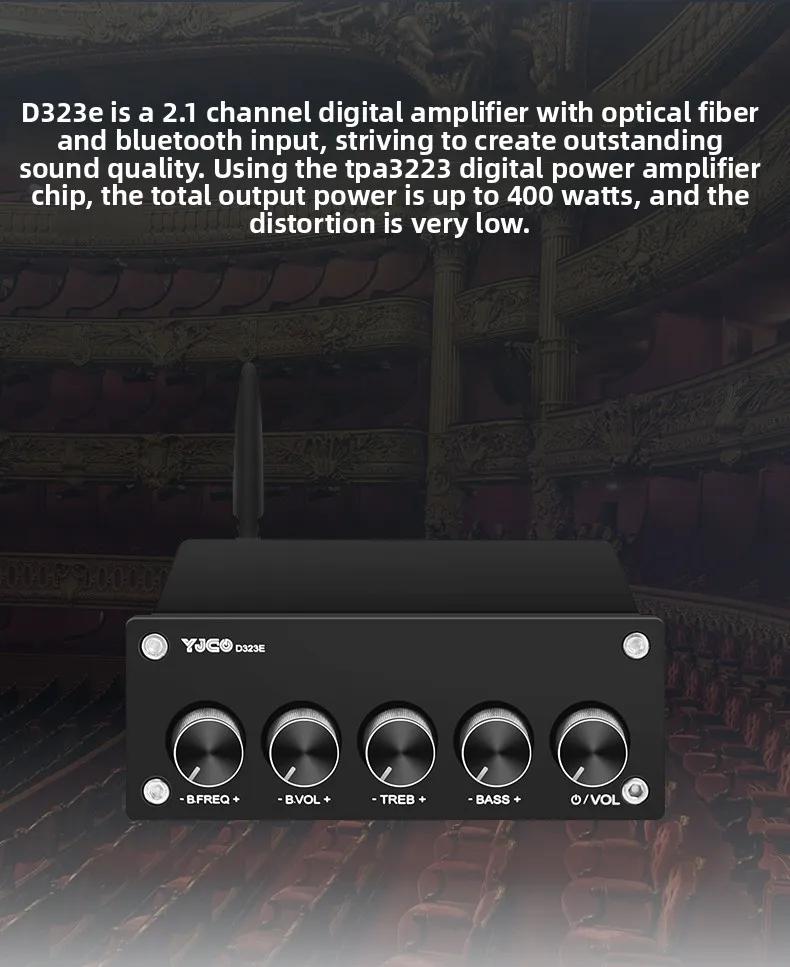

- D323E is a 2.1-channel digital amplifier with only fiber optic and Bluetooth inputs, striving to create an outstanding level of sound quality. Using the TPA3223 digital power amplifier chip, the total output power is up to 400W, and the distortion is very low.

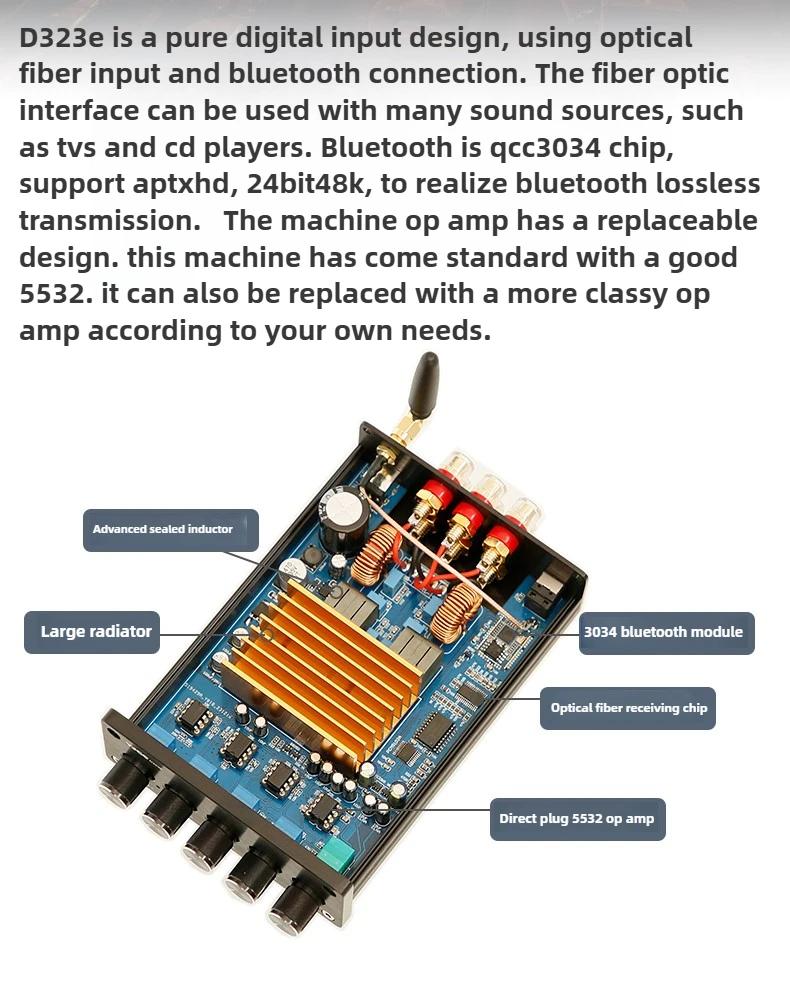

- D323E is a pure digital input design that uses fiber optic input and Bluetooth connection. Fiber optic interfaces can be used with many audio sources, such as televisions and CD players. Bluetooth is a QCC3034 chip that supports for APTX HD, 24BIT 48K, and achieves Bluetooth lossless transmission.
- The machine's operational amplifier is designed to be replaceable, and the machine is already equipped with the effective 5532 as standard. It can also be replaced with a more advanced operational amplifier according to your own needs.

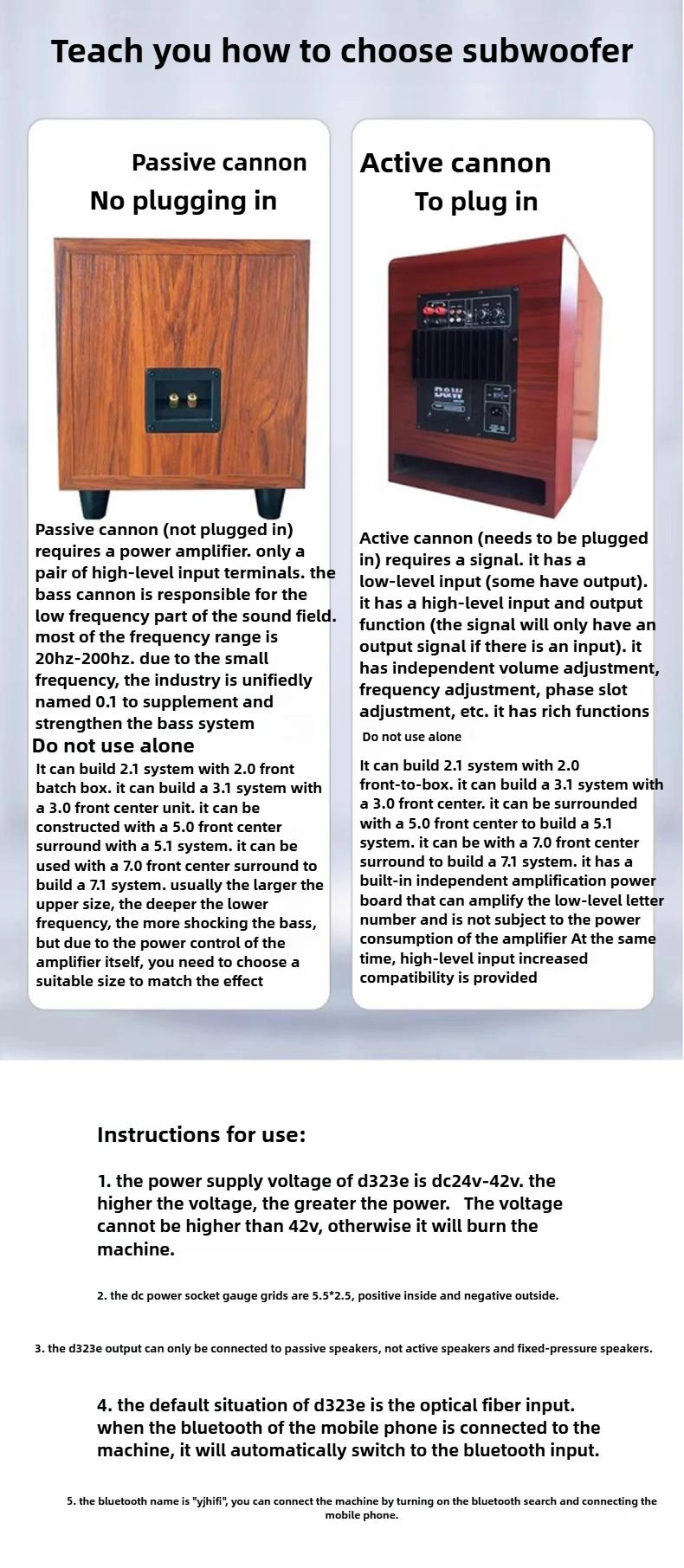

Using Instruction:
- The power supply voltage of D323E is DC24V-42V, and the higher the voltage, the greater the power. The voltage cannot exceed 42V, otherwise it will burn out the machine.
- The specifications of the DC power socket are 5.5*2.5, with positive inside and negative outside.

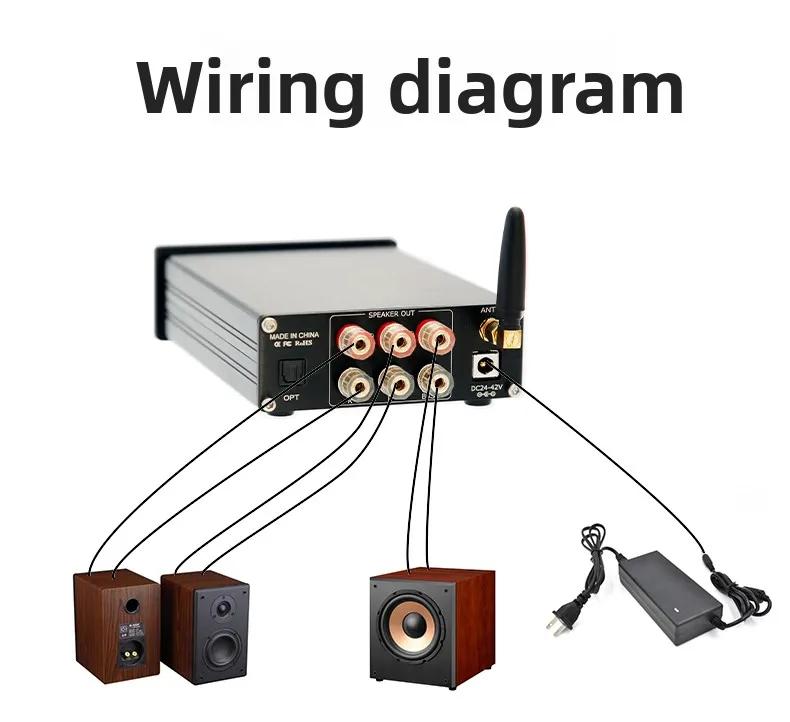

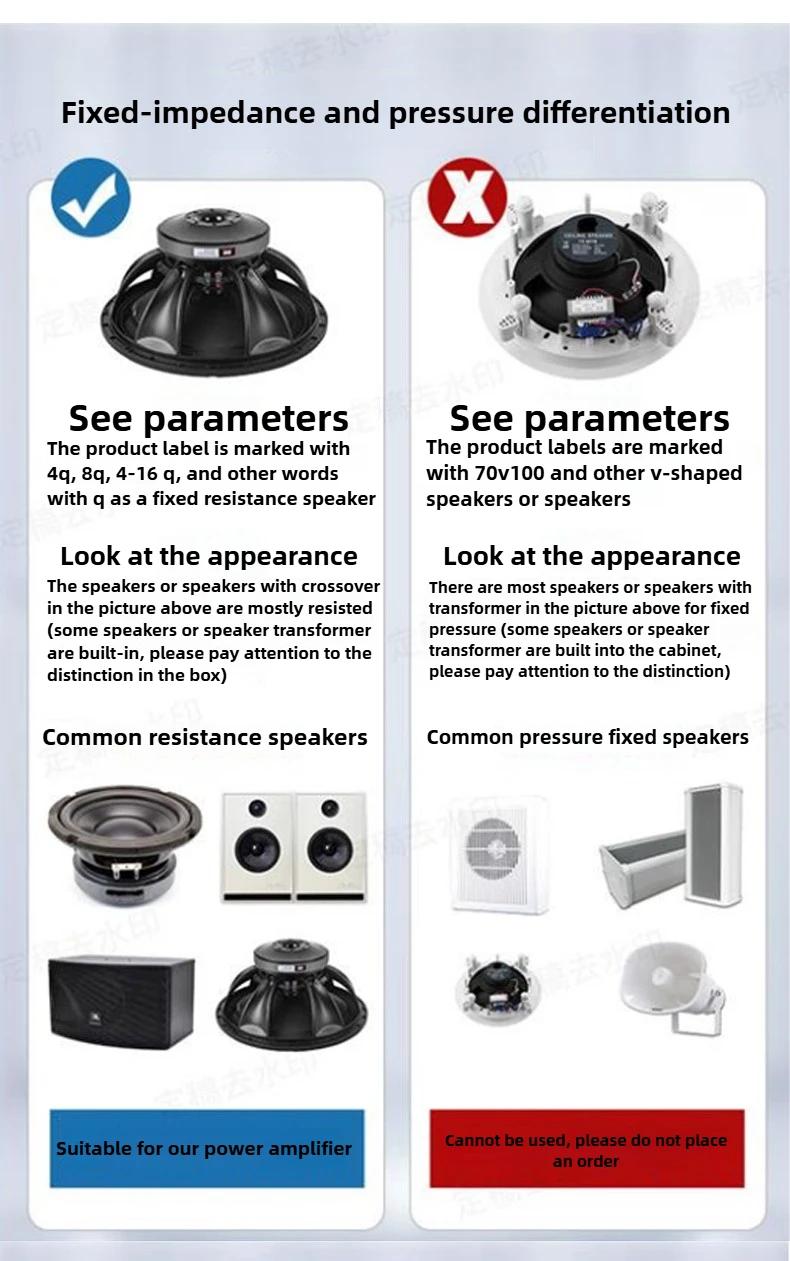

- The D323E output can only be connected to passive speakers and cannot be connected to active speakers or constant voltage speakers.
- D323E defaults to fiber optic input and automatically switches to Bluetooth input when the phone is connected to the machine via Bluetooth.
- The Bluetooth name is "YJHIFI", and you can connect to the machine by opening your phone's Bluetooth search connection.

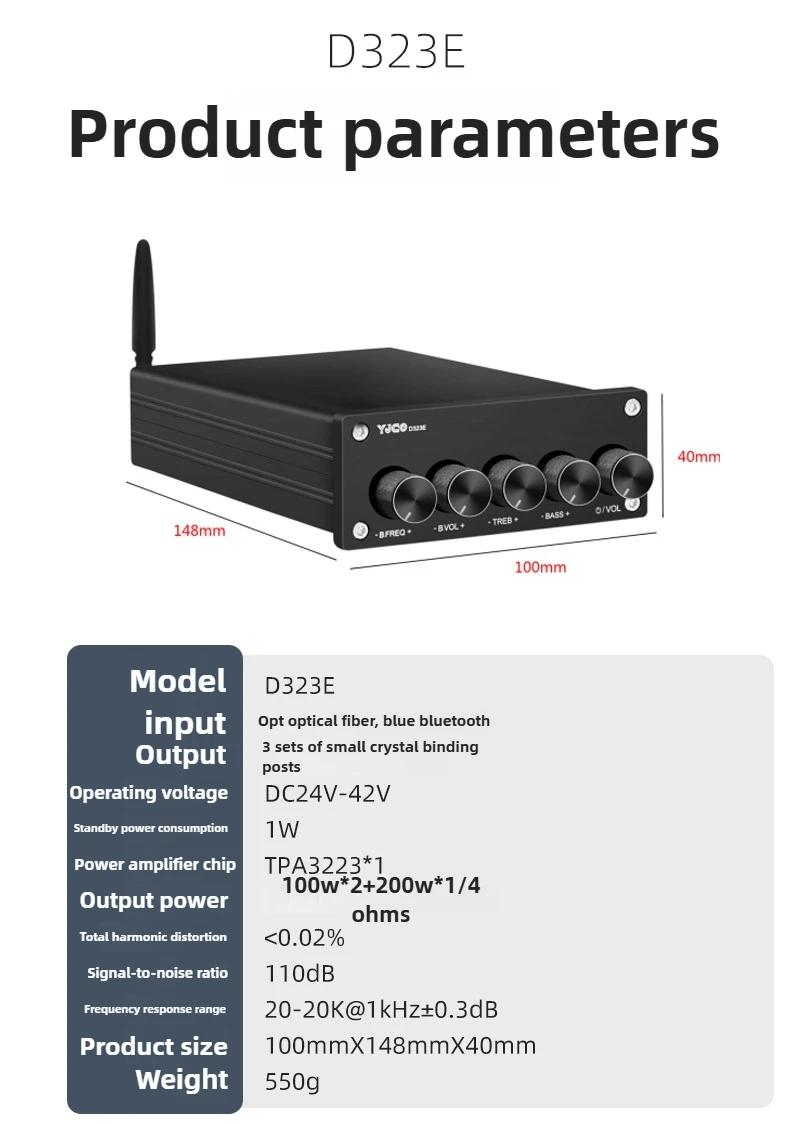

Specification:
- Model: D323E
- Input: OPT, BLUE
- Output: small crystal terminal post
- Working voltage: DC 24V - 42V
- Standby power consumption: 1W
- Power amplifier chip: TPA3223 x 1
- Output power: 100W x 2 + 200W x 1/4ohms
- THD+N: <0.02%
- SNR: 110dB
- Frequency response: 20Hz - 20kHz
- Product size: 100 x 148 x 40mm
- Net weight: 550g

Package Included:
- 1 x Power Amplifier
