D6S Dual Core TPA3255x2 High Power 2.1 Channel Digital Power Amplifier 300Wx2+600W (QCC3034 Bluetooth5.1)
Description:

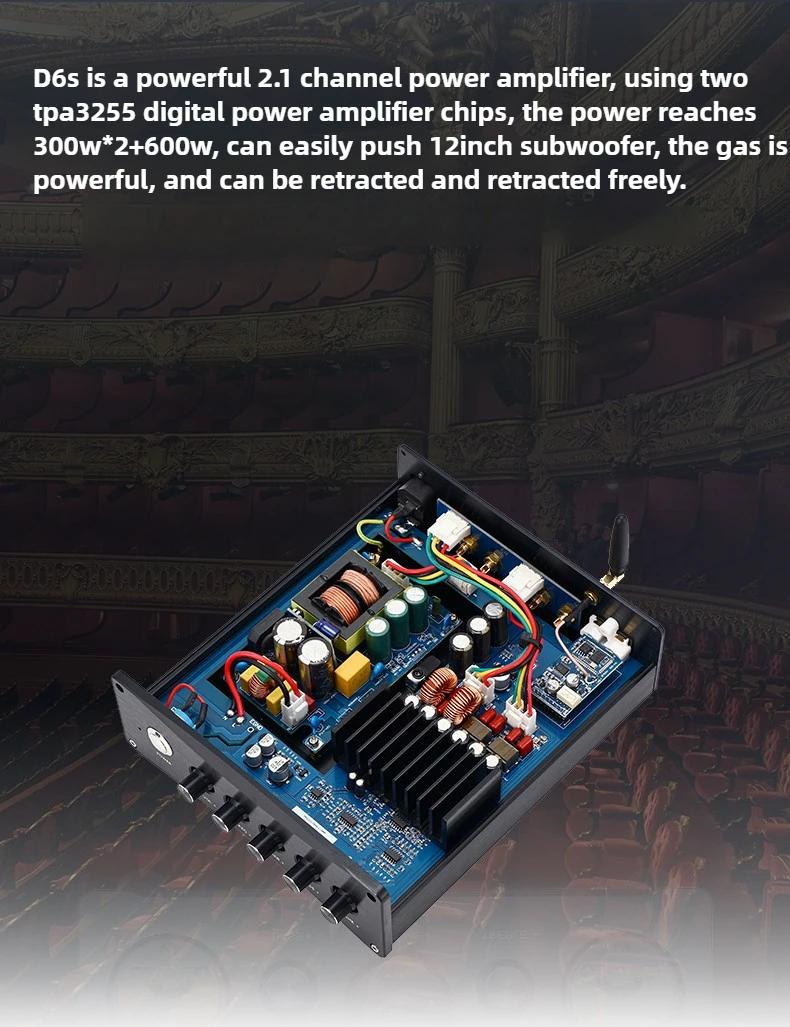

- The D6S is a powerful 2.1-channel amplifier that uses the TPA3255 digital amplifier chip, with a power output of 300Wx2+600W, making it easy to power a 12-inch subwoofer.

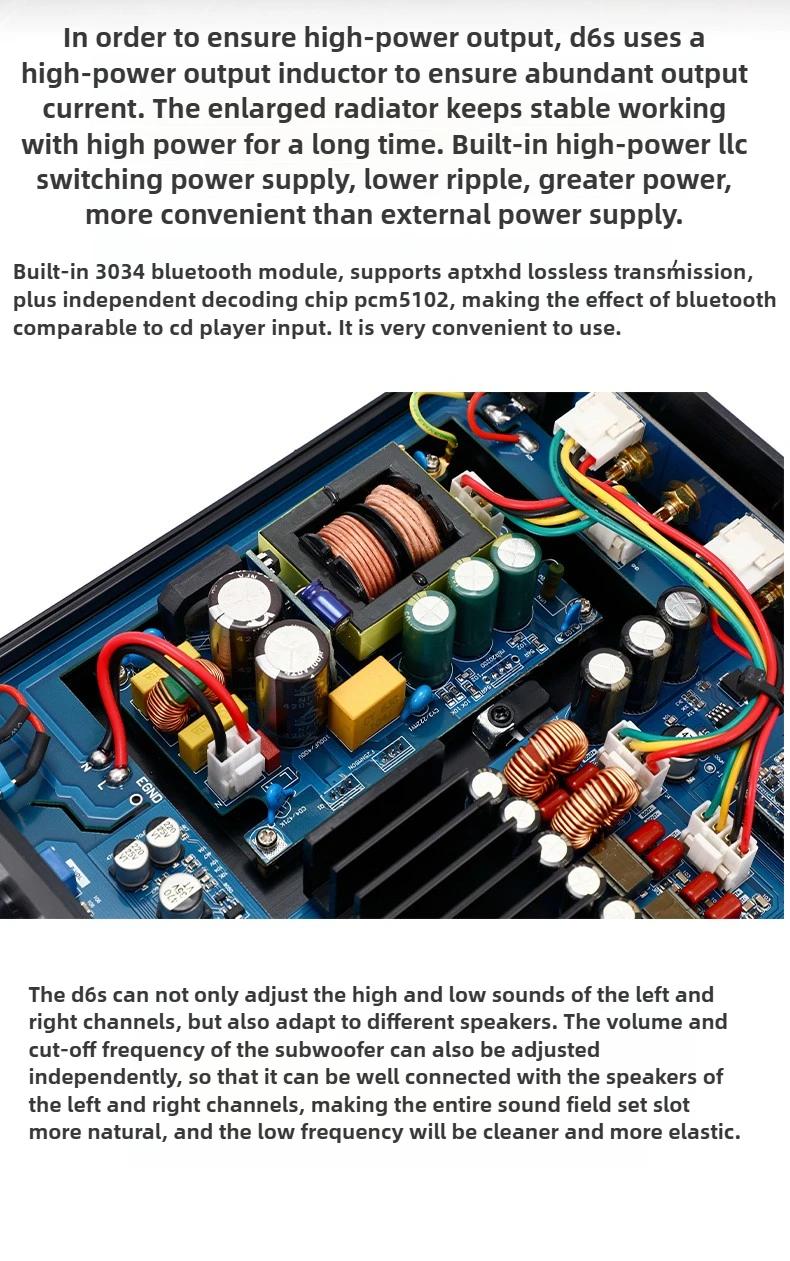

- In order to ensure high power output, D6S uses high-power output inductors to ensure sufficient output current. An enlarged radiator ensures stable long-term high-power operation. Built in high-power LLC switching power supply, with lower ripple and higher power, more convenient than external power supply.

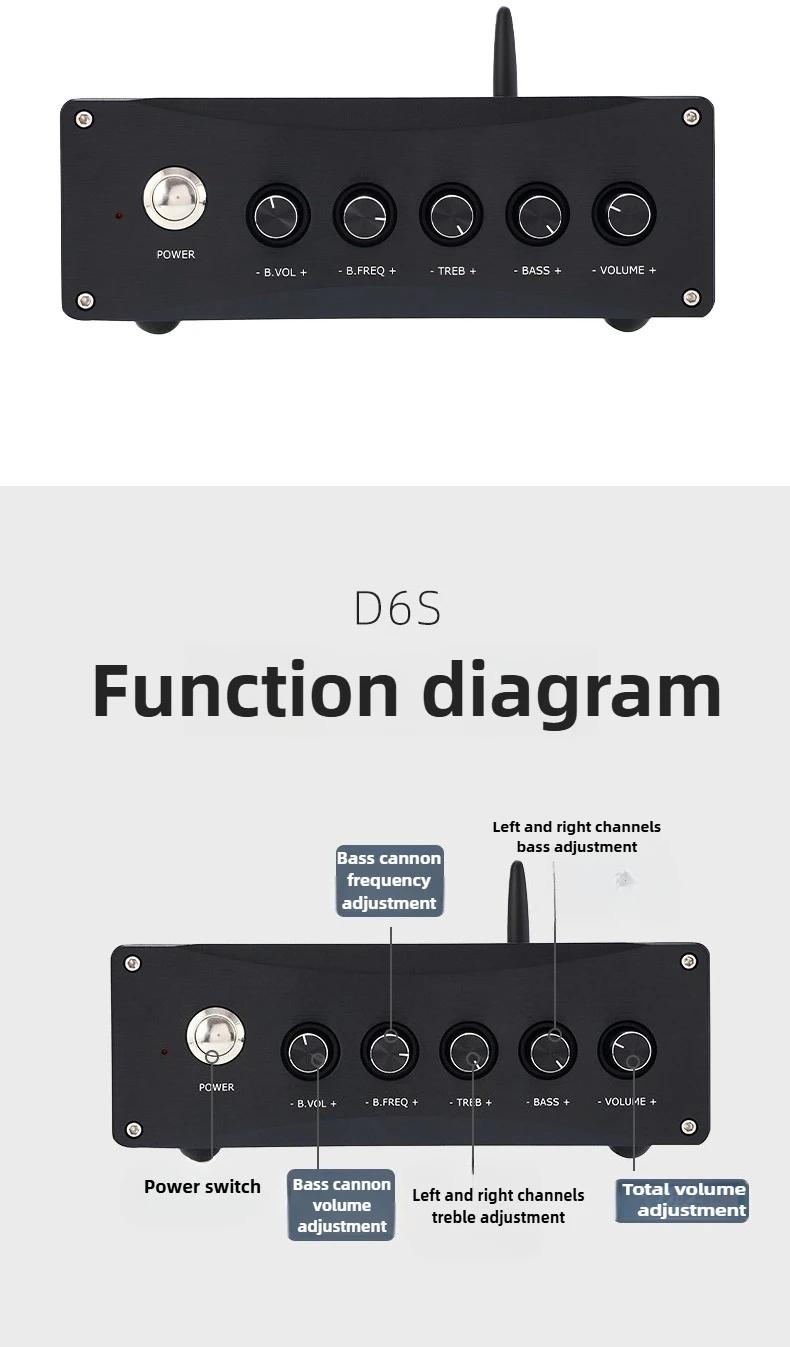

- The D6S can not only adjust the high and low frequencies of the left and right channels, but also adapt to different speakers. You can also independently adjust the volume and cutoff frequency of the subwoofer output, which can be well connected with the speakers of the left and right channels, making the positioning of the entire sound field more natural, and the low frequency will be cleaner and more elastic.

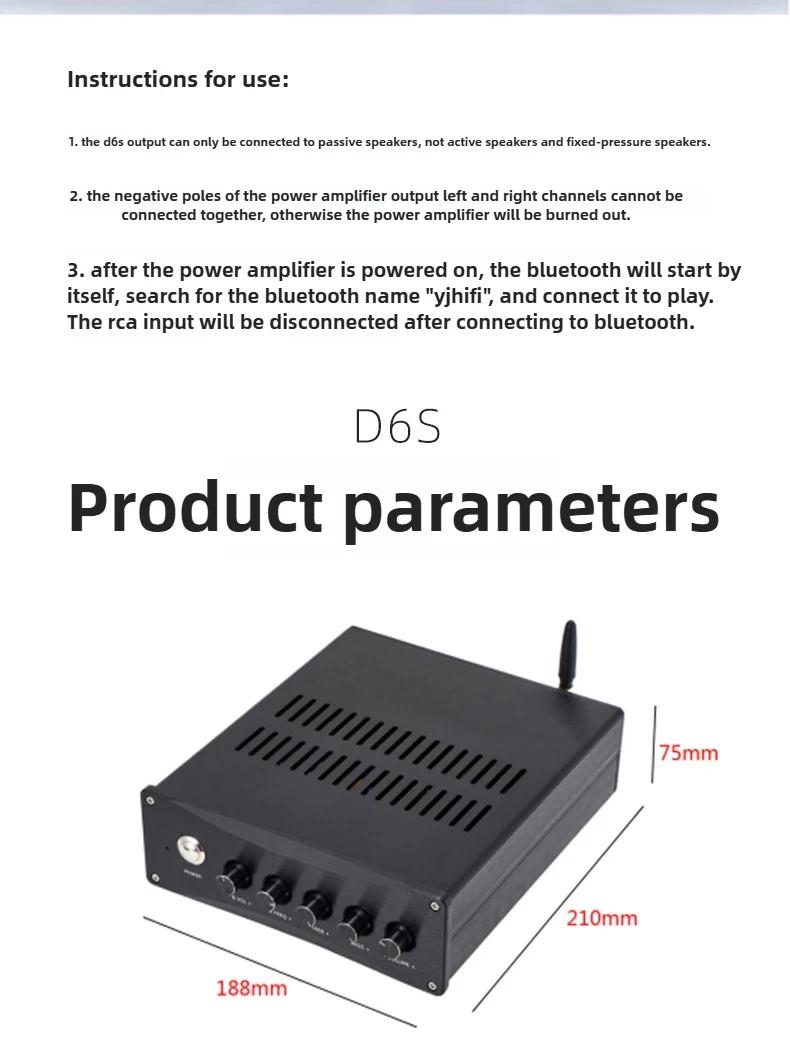

Using Instruction:

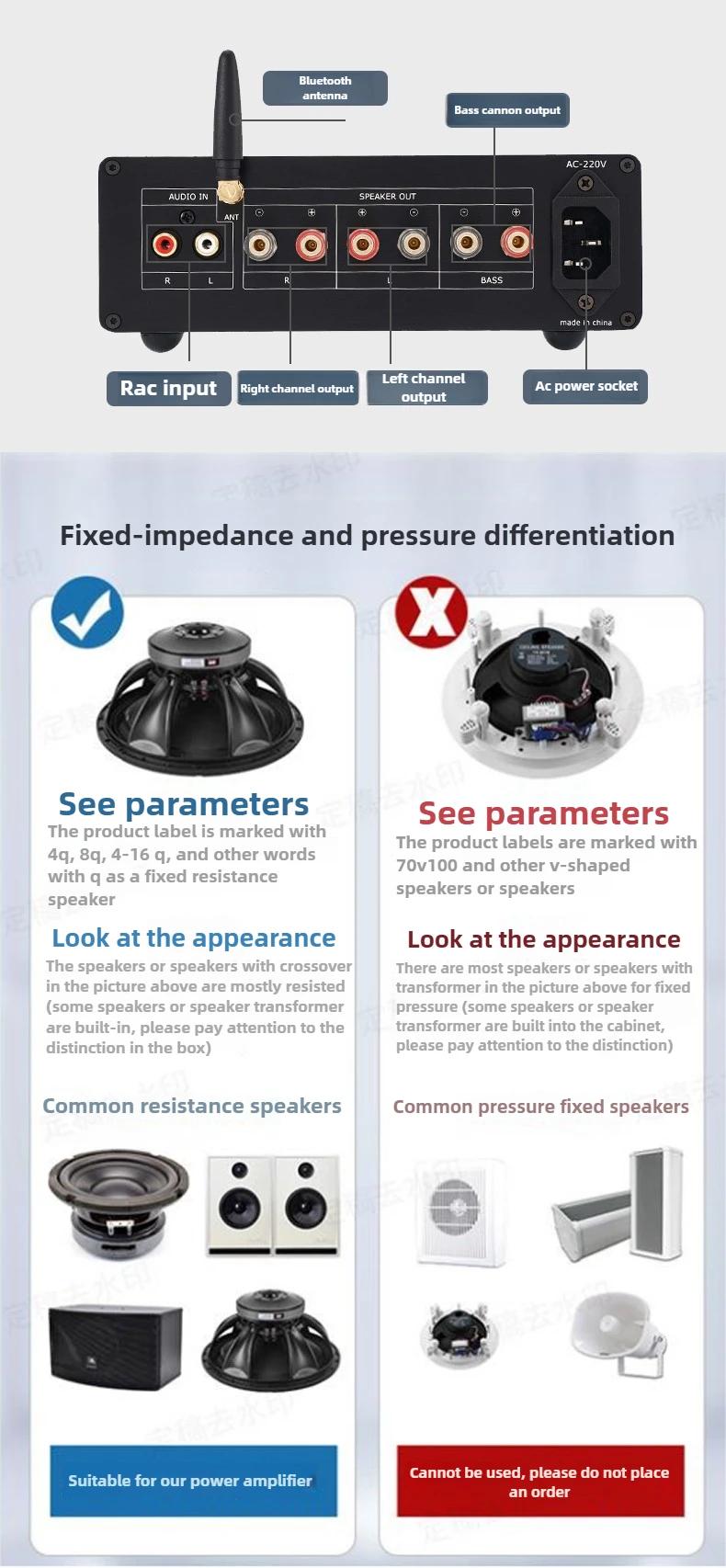

- D6S output can only be connected to passive speakers and cannot be connected to active speakers or constant voltage speakers.
- The negative terminals of the left and right channels of the amplifier output cannot be connected together, otherwise it will cause the amplifier to burn out.
- After the amplifier is powered on, Bluetooth will start automatically. Search for the Bluetooth name "YJHIFI" and connect to play. After connecting Bluetooth, the RCA input will disconnect.

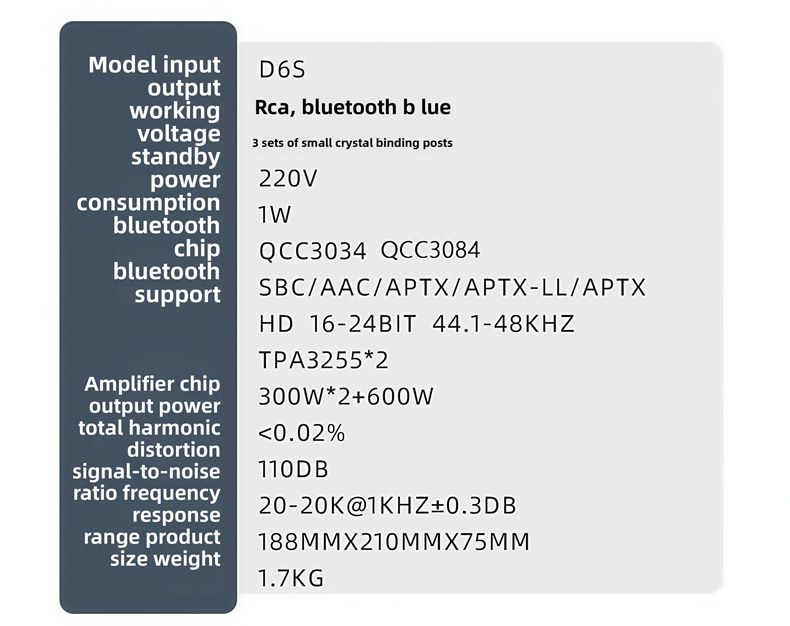

Specification:
- Model: D6S
- Input: RCA, Bluetooth
- Output: small crystal terminal post
- Working voltage: 220V
- Standby power consumption: 1W
- Bluetooth chip: QCC3034/QCC3084 (optional)
- Bluetooth support:
QCC3034: SBC/AAC/APTX/APTX-LL/APTX HD, 16-24Bit, 44.1-48KHz
QCC3084: SBC/AAC/APTX/APTX-LL/APTX HD/LDAC, 16-24Bit, 44.1-96KHz
- Power amplifier chip: TPA3255 x 2
- Output power: 300Wx2 + 600W
- THD+N: <0.02%
- SNR: 110dB
- Frequency response: 20Hz - 20kHz
- Product size: 188 x 210 x 75mm
- Net weight: 1.7kg
Package Included:
- 1 x Power Amplifier
