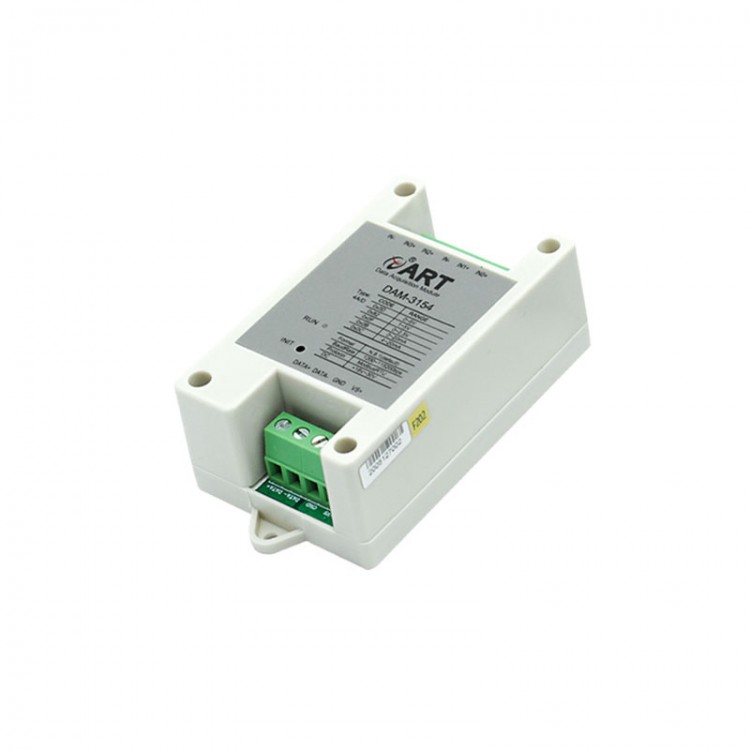

DAM3154 4-Channel 12Bit Analog Acquisition Module for Voltage and Current Data Analog Acquisition
Features:
- Wide temperature use: High quality chips are used and rigorously tested to ensure stable operation of each product in a wide temperature environment.
- Using high-quality components from major brands, such as the communication isolation power supply for MORNSUN with an isolation voltage 2500V. Internally using TVS protection, with lightning and surge protection functions.
- 4-layer circuit board. Good anti-interference performance and stable performance.
- Plug and unplug wiring terminals for convenient on-site wiring.
- Module reset button: When the user forgets to set parameters, the reset button can be used to restore the factory settings.
- Running indicator light: When powered on normally and there is no data transmission, the indicator light remains on; When data is sent, the indicator light flashes; When the reset button is short circuited and powered on, the indicator light quickly flashes 3 times.
Specification:
- Model: DAM-3154
- Channel: 4-channel
- Resolution: 12Bit
- Precision: +/- 0.1%
- Range:
Voltage: 0-5V, 1-5V, 0-2.5V
Current: 0-20mA, 4-20mA
Package Included:
- 1 x Acquisition Module
