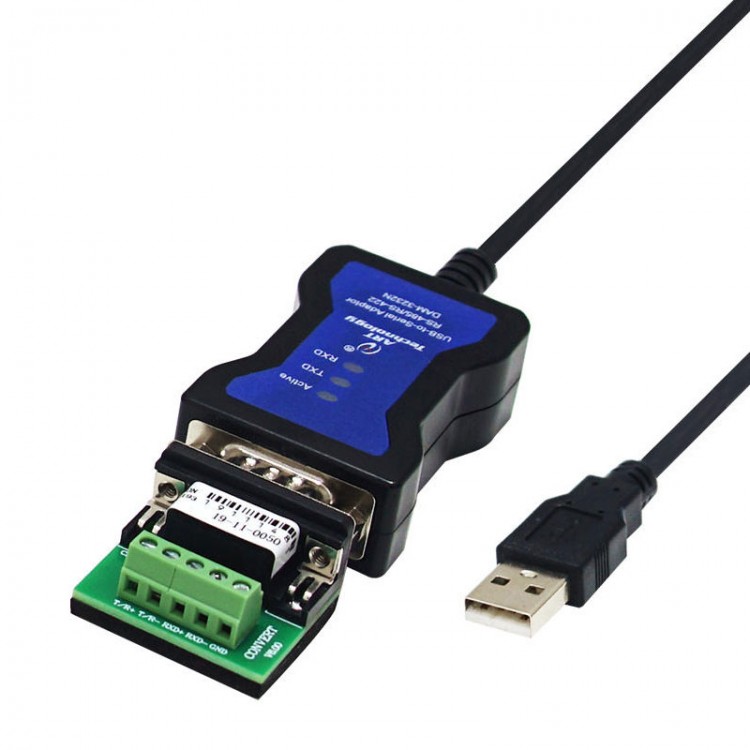

DAM3232N-1.5m USB to RS485 Adapter Cable 1-Channel USB-RS485 Converter Compatible with USB1.1/USB2.0

Availability: In stock, usually dispatched in 1 business day

  • Price:$34.06
  • Price in reward points: 341 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.38 $32.70 $31.68 $30.31 Contact US
Quantity:

DAM3232N-1.5m USB to RS485 Adapter Cable 1-Channel USB-RS485 Converter Compatible with USB1.1/USB2.0

Features:

- Wide application: Long distance without delay, suitable for connecting computer USB interfaces with RS485/422 devices.
- Multi system compatibility: compatible with Windows series, Mac OS, Linux and other systems.
- Three types of data indicator lights: easy to see working status, providing convenience for programming and debugging.

Specification:
- USB: 1 channel, compatible with USB1.1/USB2.0 standards
- Serial port: RS422, RS485 multiplexing interface 1 channel, compatible with EIA/TIA485/422 standards
- Transmission rate: 300bps-921.6Kbps, baud rate adaptive
- Load capacity: Supports point to multi-point. Each converter can allow the connection of 32 RS-422 or RS-485 interface devices
- Transmission distance: RS-485/422 end 5000 meters (at 9600bps), USB port not exceeding 5 meters
- Direction control: Using data flow automatic control technology to automatically distinguish and control the direction of data transmission
- Transmission medium: RS485 or RS422 can be transmitted using twisted pair with shielded wire
- Communication methods: RS485 asynchronous half duplex communication, RS422 asynchronous full duplex communication, capable of point-to-point and point to multi-point communication
- Interface protection: surge protection, ± 15KV electrostatic protection
- Transmission distance: 0-1200 meters
- Signal indication: 3 indicator lights, power light, transmitting light, and receiving light
- Power consumption: rated value 0.1W at 5VDC
- Operating temperature: -40 ℃ ~ +85 ℃
- Storage temperature: -40 ℃ ~ +85 ℃

Package Included:
- 1 x USB to RS485 Converter
