Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $14.86 | $14.55 | $14.10 | $13.49 | Contact US |

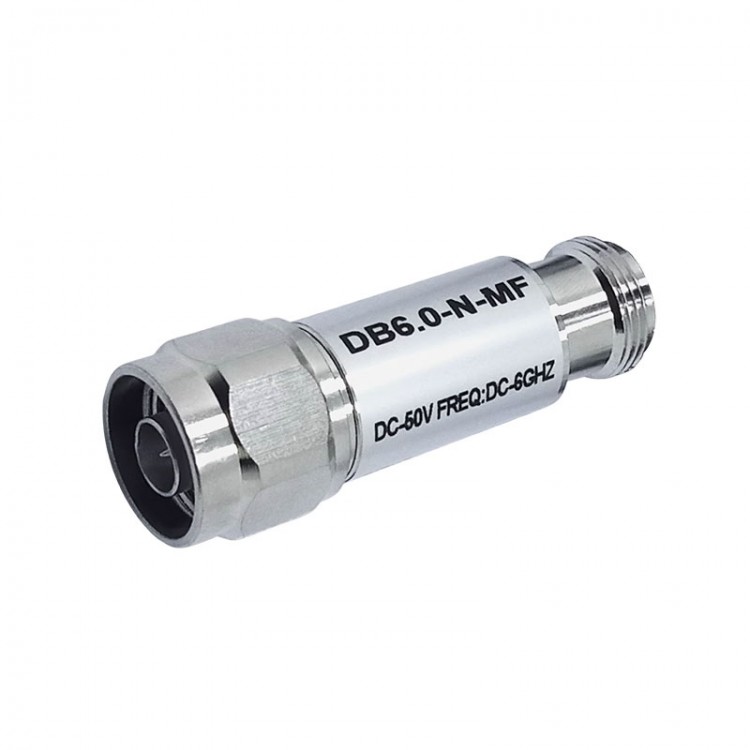

DB6.0-N-MF DC-50V DC-6GHz DC Block 30MHz-6GHz N-Type DC Block for Wireless RF Test Instruments
Features:
* N-type DC block
* Frequency Range: 30MHz-6GHz
* Excellent DC isolation and wide signal transmission frequency range
* Wide bandwidth and low loss
* Easy installation and excellent performance
* When connected in series with a circuit, it blocks DC current without affecting the transmission of microwave signals
Specifications:
* Operating Frequency: 30MHz-6GHz
* Insertion Loss: ≤0.7dB
* VSWR: ≤1.35
* Impedance: 50Ω
* Connector Type: N male and N female connectors
* RF Power Handling: 5W
* Test DC Voltage: 50V
* Weight: 60g
Application:
* It is commonly used for DC isolation and protection in wireless RF (Wi-Fi, Bluetooth, wireless network cards, etc.) test instruments, such as IQFLEX, IQ2010, IQVIEW, network analyzers, and signal generators.
Packing List:
* 1 x DC Block
Packaging Details:
* Weight: 0.15kg
