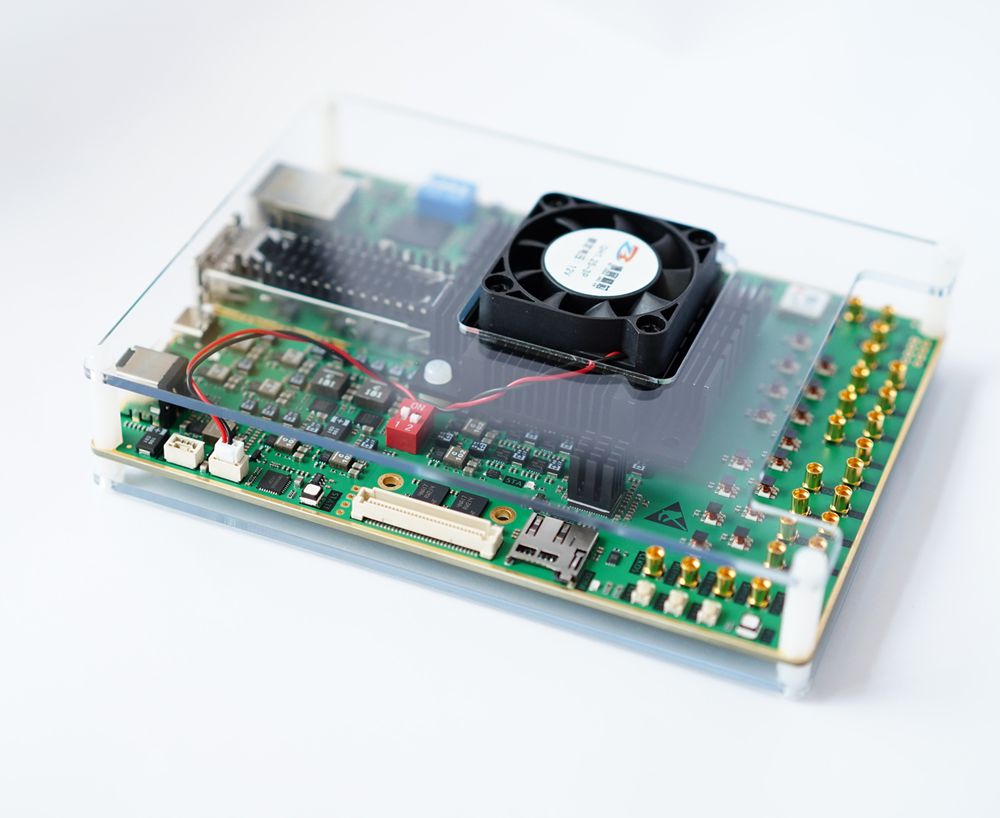

XCZU27DR RFSOC 27DR RF-27DR-Lite 8-Channel 10MHz-6GHz RF Wireless Development Board for ZYNQ

Master Chip Specification:

- Chip model: XCZU27DR-FFVE1156-2-i
- Clock recommended maximum speed: up to 775M for PLL/MMCM
- PS application processor model: four-core ARM Cortex-A53 1333MHz main frequency
- PS real-time processor model: dual-core ARM Cortex-R5 533MHz main frequency
- DDR specification model: DDR4, model of MT40A512M16LY-075:E
  PS terminal: 4GB capacity, 64bit, 2400M
  PL terminal: 2GB capacity, 32bit, 2666M
- Logic unit (LC): 930300
- Look-up unit (LUT): 425280
- DSP unit multiplier: 4272pcs
- Trigger (FlipFlops): 850560
- Block Ram: 38M Byte
- Ultra Ram: 22.5M Byte
- GTY (32.75G): 8pcs
- Component temperature range: -40℃ to 85℃
- Speed level: -2
- Chip level: industrial

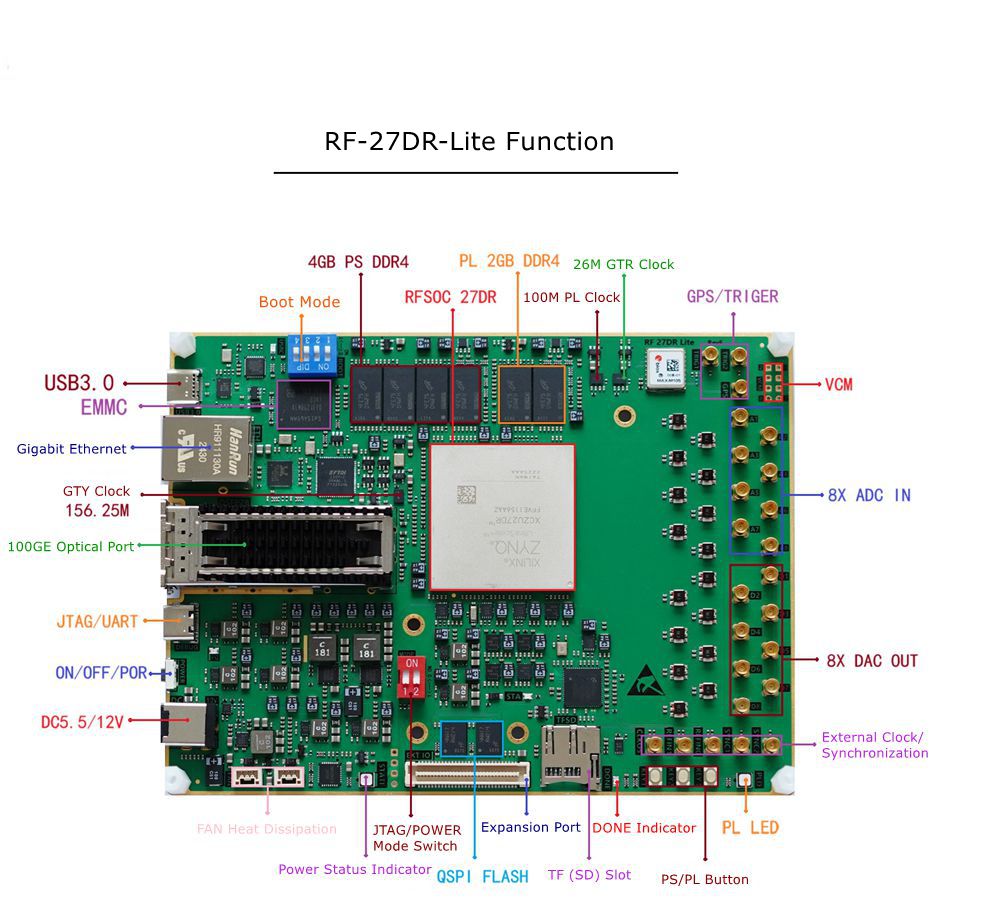

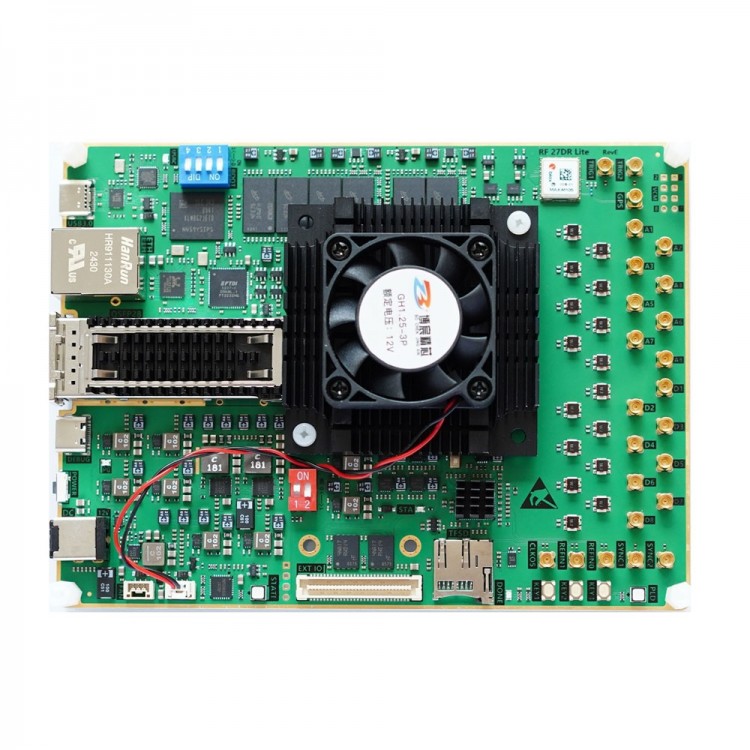

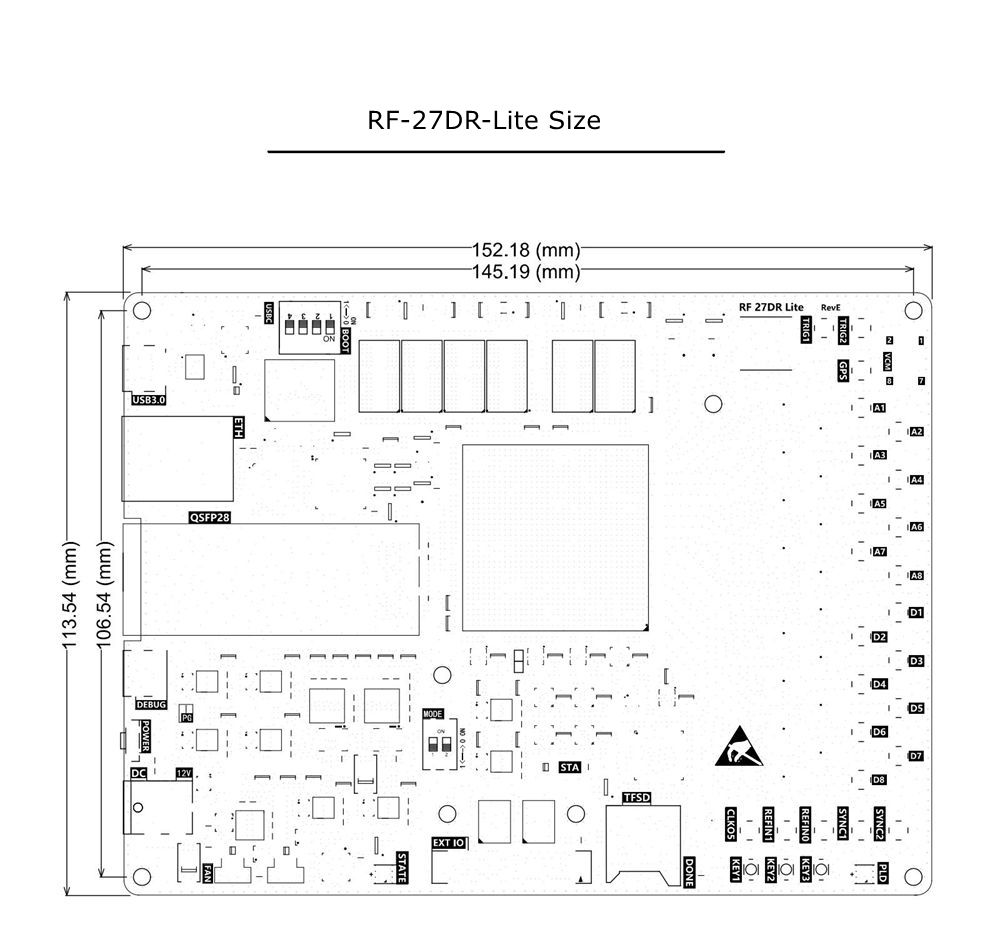

RF-27DR-Lite Function Interface Description:
- Power supply/heat dissipation: powered through a dedicated DC5.5 interface, 12V input interface
- Development board clock: 33.33M(PS), 100M(PL), 26M(PS GTR), 156.25M(GTY)
- Ethernet: Gigabit RTL8211E, PS GEM3
- USB interface: USB3.0 SLAVE, support USB3.0, on PS
- Debugger: onboard UART + JTAG (FTDI solution) supports for ARM and FPGA development.
- Optical port: 1 QSFP28 100GE optical port, GTY, maximum line rate of 28Gbps
- EEPROM: one FM24C02 EEPROM, connected to PS
- SD card slot: PS SD1, 2.0 interface, bootable (SD supports up to 32GB)
- EMMC: SD0 of PS, with a capacity of 32GByte
- LED and buttons: power on/off/POR reset, PS/PL button/PL LED power status indicator/DONE indicator, USB indicator, etc.
- Boot setting switch: a BOOT dip switch for initiating settings
- Onboard FLASH: 128M bytes, two magnesium particles, PS
- Heat dissipation interface: two 12V heat dissipation interface, GH1.25-3P terminal
- Expansion IO port: introduce 20 3.3V single-ended TTL devices; 2Iane PS GTR; 4Iane GTY, the connector uses a 60P BTB connector
- Note 1: TYPE-C is only for USB connection and cannot provide power

RF Part Function Interface Parameter:
- ADC number: 8-channel 12-bit ADC, maximum sampling rate of 4.096Gbps
- DAC number: 8-channel 14-bit DAC, maximum sampling rate of 6.554Gbps
- RF range: 10M - 6GHz
- SNR: > 50dB at 1GHz below (better than 56dB for average)
- Isolation degree: about -60dB
- Channel consistency: the measured average error at DAC1G frequency is better than the range of 0.5dbm
- RF connector: MMCX female socket, requires MMCX male connector, other interfaces require adapter cables
- RF coupling mode: AC coupling mode, reserved ADCVCOM output
- Impedance control: RFSOC to Balun differential 100ohms, Balun to MMCX single-ended 50ohms

Package Included:
- 1 x Development Board
- 1 x Type-C 2.0 Cable
- 1 x Type-C 3.0 Cable
- 1 x 12V/5A DC Power Adapter
- 8 x MMCX RF Cable
