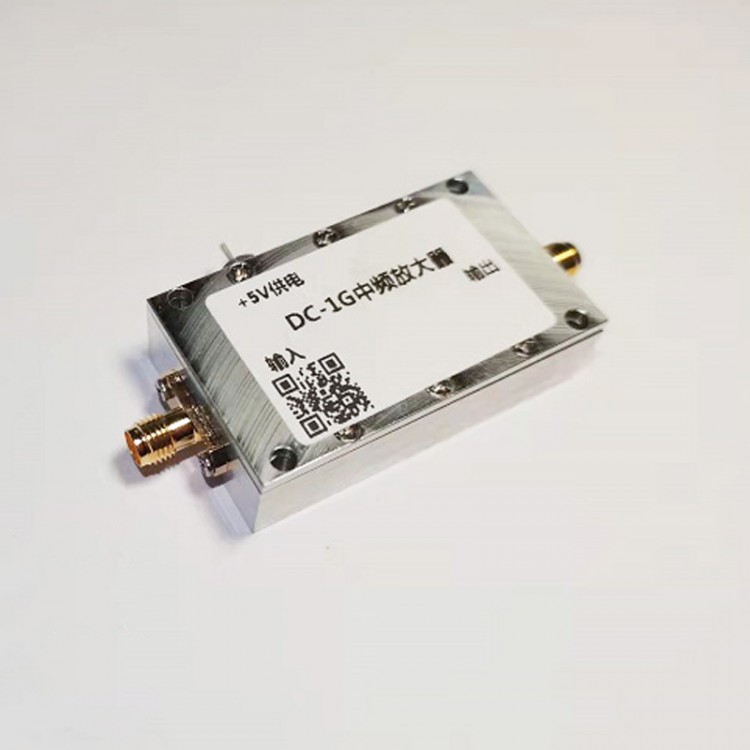

DC-1G RF Power Amplifier RF Power Amp 20DB Typical Gain Boost Module IF High Gain Amplifier
Description:
The amplifier module is used for gain promotion of intermediate frequency signals and radio frequency signals of various radio transmitters, amplifying intermediate frequency signals of receivers, and amplifying circuits for high-sensitivity electronic detection equipment. Using low-noise imported die and CNC shell, this module has excellent electromagnetic shielding performance. It can work in the DC-1G range with a typical gain of 20dB. Therefore, it can be widely used in transceiver systems such as IF and RF gain boosting.
Module Parameters:
- Working voltage: +5V single power supply
- Working current: 70mA (low power consumption)
- Operating frequency: DC-1GHz
- Gain: 20dB typical (see test curve below)
- P1dB output power: 18dBm
- Noise figure: 2.7dB
- Input and output interface: SMA female connector

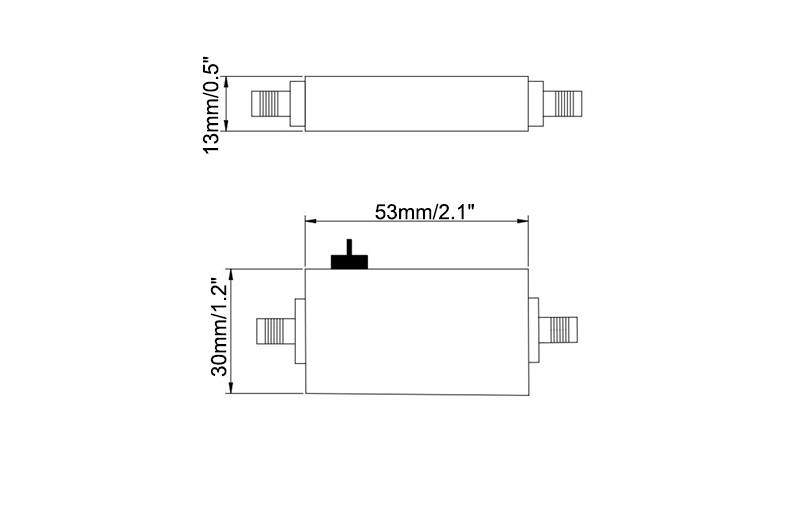

- Module size: 53 x 30 x 13mm/2.1 x 1.2 x 0.5" (excluding the size of connectors)
- With mounting holes
Package Included:
- 1 x RF Power Amplifier

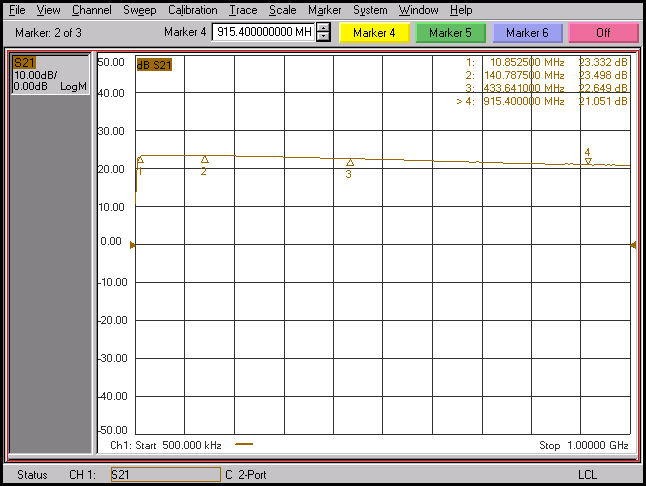

Gain Curve During Measurement:
