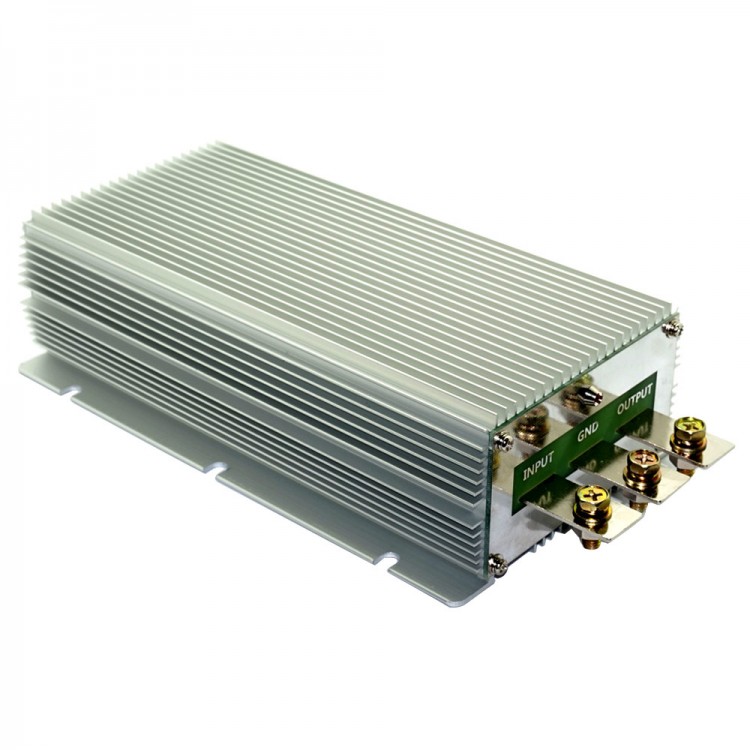

DC-DC Step-up Converter 12V to 24V Booster 40A Voltage Regulator 960W Car Power Supply RCNUN
Features:
- 100% full power & stable current output
- Non isolated regulated DC power supply
- 100% Imported components
- Wide input voltage
- High efficiency up to 96%
- 100% waterproof & anti-shock protection, Ultra compact size, light weight
- Waterproof, IP68
- Die-cast aluminum shell, epoxy potting, Cooling by free air convection
- Protections: Over-current, Over-voltage, Over-temperature. Auto-recovery when device is back to normal operating
Specification:
| Brand | RCNUN |
| Model | RC122440 |
| Input voltage | 12V DC |
| Input voltage range | 10-20V DC |
| Efficiency | 96% |
| Output voltage | 24V DC |
| Output current | 40A |
| Output rated power | 960W |
| Output peak power | 125% |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| No-Load current | <30mA |
| Ripple | <230mV |
| Working temperature | -40~80 degree C |
| Waterproof rating | IP68 |
| Over-current protection | Yes |
| Over-voltage protection | Yes |
| Over-temperature protection | Yes |
| Short-circuit protection | No |
| Size | 255*127*63mm |
| N. W. | 2.3kg |
| G. W. | 2.4kg |
| Cooling way | Natural heat dissipation |
Package List:
- 1 x DC-DC Step-up Converter / Booster
