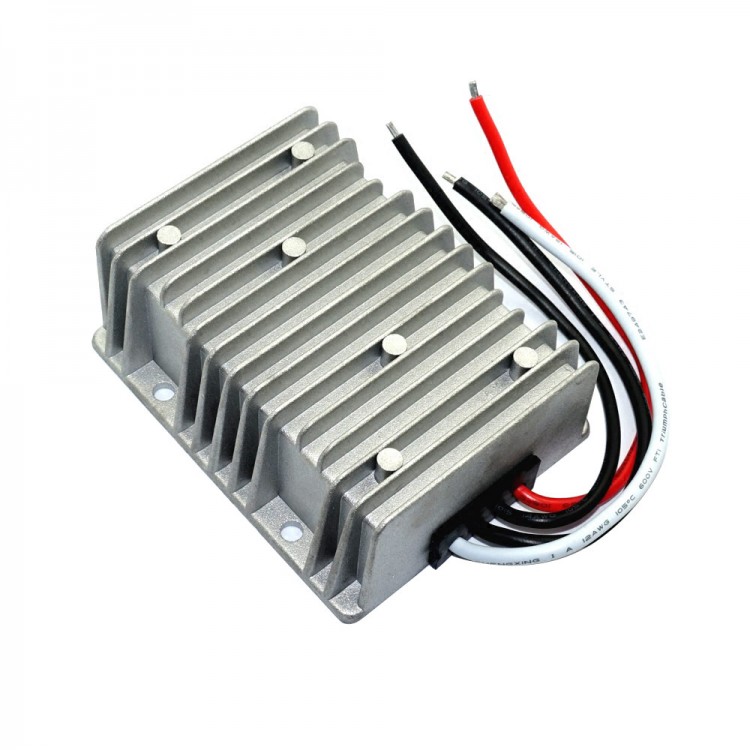

DC-DC Step-up Converter Booster 12V to 24V 20A Voltage Regulator 420W Car Power Supply RCNUN
Features:
- 100% full power & stable current output
- Non isolated regulated DC power supply
- 100% Imported components
- Wide input voltage
- High efficiency up to 96%
- 100% waterproof & anti-shock protection, Ultra compact size, light weight
- Waterproof, IP68
- Die-cast aluminum shell, epoxy potting, Cooling by free air convection
- Protections: Over-current, Over-voltage, Over-temperature. Auto-recovery when device is back to normal operating
Specification:
| Brand | RCNUN |
| Model | RC122420 |
| Input voltage | 12V DC |
| Input voltage range | 10-24V DC |
| Efficiency | >95% |
| Output voltage | 24V DC |
| Output current | 20A |
| Output rated power | 420W |
| Output peak power | 130% |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| No-Load current | 100mA |
| Ripple | 200mV |
| Working temperature | -35~80 degree C |
| Waterproof rating | IP68 |
| Over-current protection | Yes |
| Over-voltage protection | Yes |
| Over-temperature protection | Yes |
| Short-circuit protection | No |
| Size | 100*80*39mm |
| N. W. | 470g |
| Cooling way | Natural heat dissipation |
Package List:
- 1 x DC-DC Step-up Converter / Booster
