DC-DC5V Power Supply Module Voltage Regulator Input 0-40V Output 5V 12V 3.3V Compatible w/7805 7812 78xx Series 5-Pack

Availability: In stock, usually dispatched in 1 business day

  • Price:$12.37
  • Price in reward points: 124 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.12 $11.88 $11.50 $11.01 Contact US
Quantity:
  This product has a minimum quantity of 5

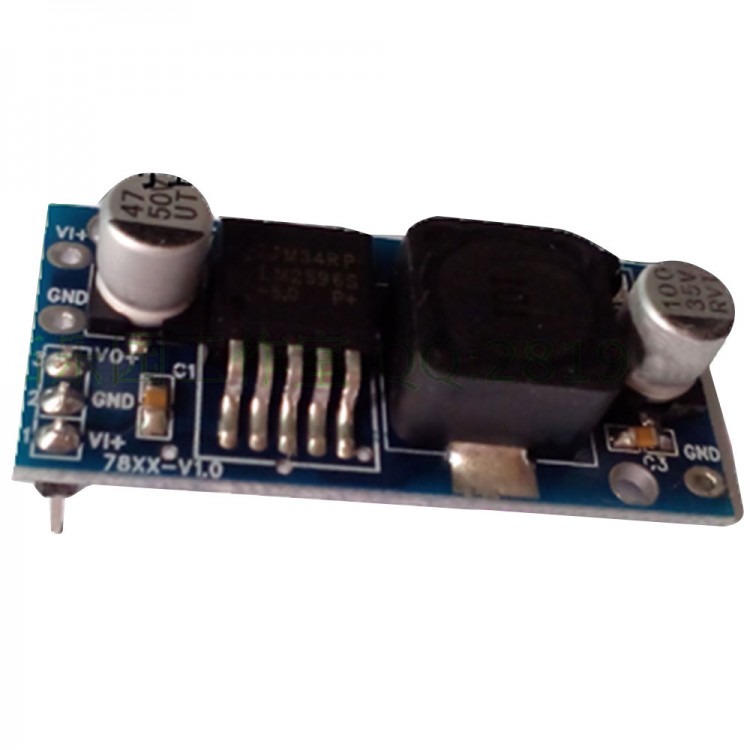

DC-DC5V Power Supply Module Voltage Regulator Input 0-40V Output 5V 12V 3.3V Compatible w/7805 7812 78xx Series 5-Pack

Description:
- DC-DC voltage regulator power supply module 3A, pin is compatible with 78xx series regulator, can be directly replaced, no need to change the PCB board;
- High efficiency, input voltage range: 0V~40V, voltage regulator output voltage 5V ( by default), 12V, 3.3V.
- Maximum output current 3A.
- No need to add a capacitor, can be used  directly as power supply
- No potentiometer, anti vibration, more suitable for industrial control.
- Output current: rated current 2A, maximum 3A (need to add heat sink), if the output power is greater than 20W, it is recommended to add heat sink
- Conversion efficiency: the highest 92% (the higher the output voltage, the higher the efficiency)
- Switching frequency: 150KHz
- Low dropout voltage: 3V
- Load adjustment rate: + 0.5%
- Voltage regulation rate: + 0.5%

Specification:
- Size: 42*20*9.5 mm  L*W*H
- Input: 0-40V; output 5V or 12V 3.3V (maximum current 3A)
- Quantity: 5 pcs

Package included:
- 5 x DC-DC5V Power Supply
