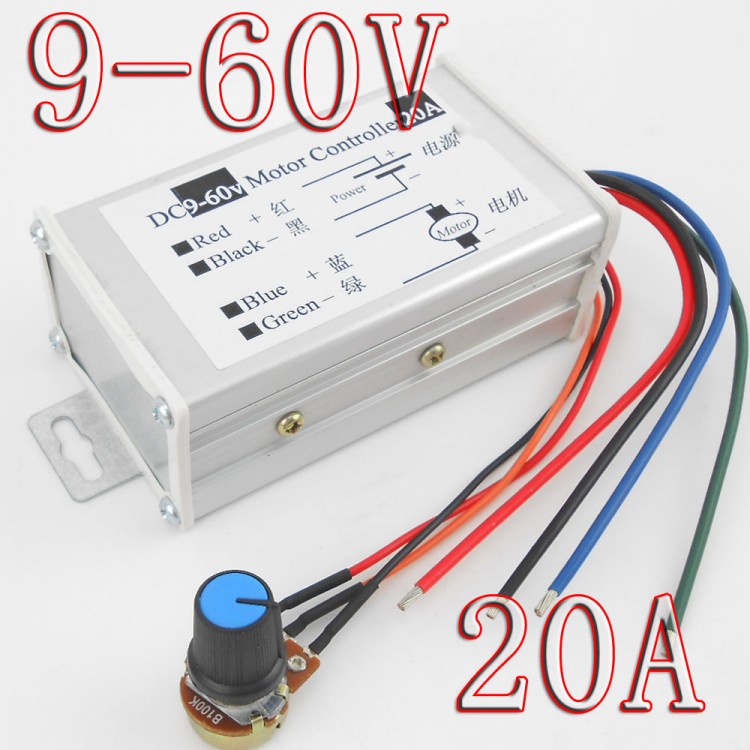

DC Motor Controller DC9 - 60V 20A PWM Speed Regulator for Brushed DC Motor without Forward and Reverse Switch
Specification:
- Input voltage: DC9 - 60V (The specific voltage should be equal to the rated voltage of the motor)
- Input current: Require a higher working current than the motor
- Output voltage: Linearity under load
- Output current: 20A
- Constant current: within 18A
- Working frequency: 25KHz
- Size: 92 x 52 x 36mm
- Weight: 155g
Precaution:
- It cannot be used for electric vehicles.
- The input voltage should be equal to the rated voltage of the motor (not 220V AC power)
- The input voltage must be divided between positive and negative; the red line represents the positive, the black line represents the negative power supply, and the blue and green lines do not differentiate between positive and negative.
- This is not a power module, and the motor must be connected to adjust the speed. If the motor is not connected, the output of the multimeter remains unchanged.
- The motor can be connected without distinguishing between positive and negative. When the running direction is not consistent with the expected direction, the direction can be changed by adjusting the wire sequence.
- This product is used for brushed DC motors, not suitable for speed regulation of DC brushless motors, and it cannot be used as a voltage regulator or stabilizer.
Package Included:
- 1 x DC Motor Controller
