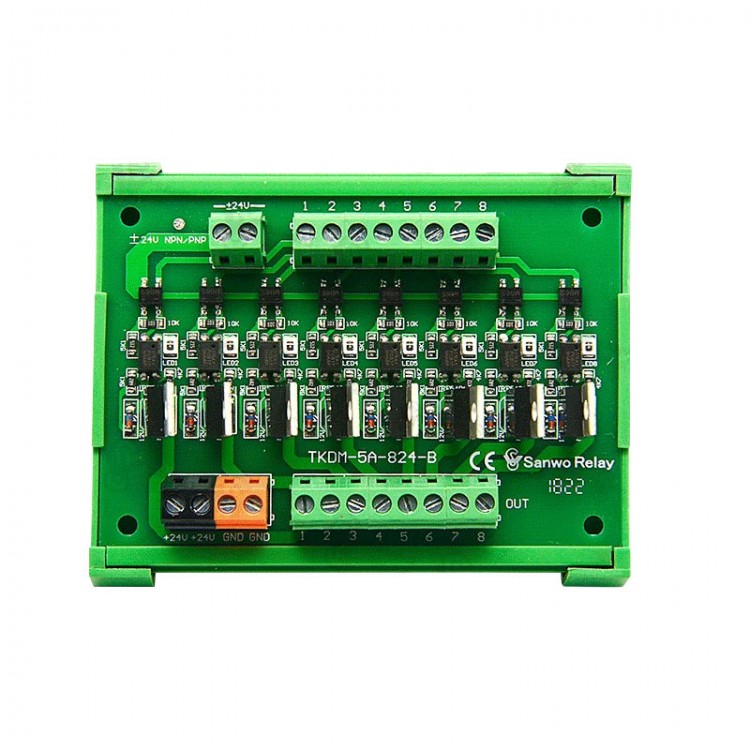

DC12-24V 5A 8-Channel PLC Amplifier Board PNP Output Micro-controller Module Optocoupler Isolation Solenoid Valve
Features:
- Using original imported driver chips with stable and reliable performance.
- Compatible with both positive control and negative control input modes.
- Each channel has an LED indicator light to indicate the working status of the current channel.
- The input signal adopts optocoupler isolation, which has strong anti-interference ability.
- The module adopts a standard guide rail (TS35) installation design.
Specification:
- Input signal: NPN/PNP universal
- Output signal: PNP output
- Driving current: >= 2mA
- Driving voltage: DC12-24V
- Response time: <= 0.2ms
- Switch frequency: 100Hz
- Working temperature: -20℃~ +70℃
- Storage temperature: -40℃~ +85℃
- Installation method: TS35/7.5/NS 35/NS32 standard rail
- Product size: L x W x H = 84 x 82 x 42mm
Package Included:
- 1 x PLC Amplifier Board
