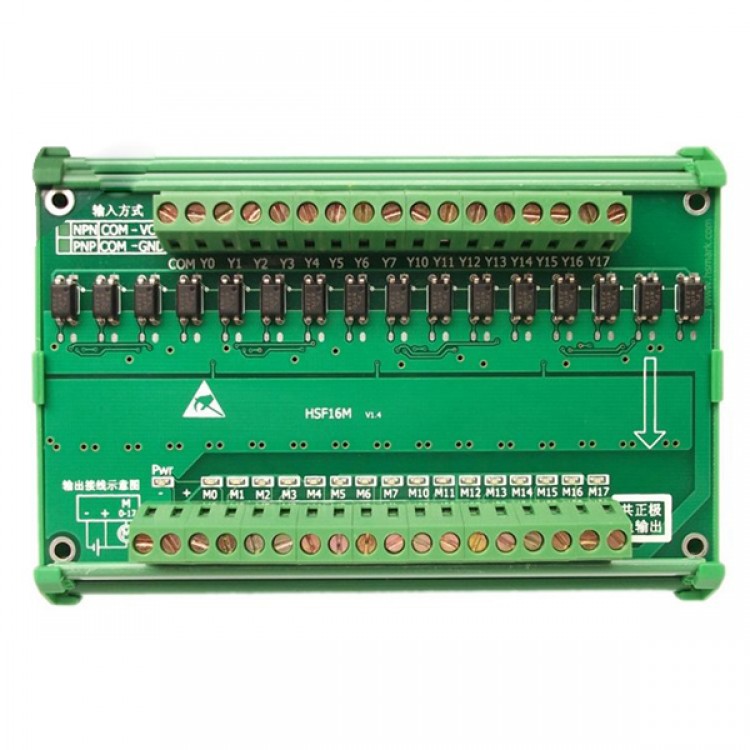

16CH Mitsubishi PLC Output Isolation Amplifier Board Driver Module Expansion Flow Plate Relay Plate w/Holder IO Board
Description:
- This product isolates or amplify the faint controlling signals(only need several mA current) through photoelectricity, then output large power controlling signal, to drive motor contactor magnetic valve.
Parameter:
- Each channel rated current: 3A(continuous time)/10A(instant time), unlimited using time
- Voltage range(load electricity): DC12—24V
- Input mode: NPN, trigger current <4mA (can be used as PNP or other voltage trigger)
- Output mode: low level output with LED indicator
- Switch frequency: ≤1000HZ
- On resistance: <0.03Ω
