DC12V Linear Power Supply High Performance LT3041 Chip Dedicated for Mytek Brooklyn DAC Decoder (AC110-120V)

DC12V Linear Power Supply High Performance LT3041 Chip Dedicated for Mytek Brooklyn DAC Decoder (AC110-120V)

Description:
- This is a linear power supply designed specifically to match the Mytek Brooklyn DAC. It has been upgraded to the second generation product and adopts a new uV level voltage regulation scheme. The measured no-load ripple of the entire machine is less than 20μV, and even under high current output, it is less than 100μV, demonstrating excellent power purity. More importantly, its very low pressure differential design has significantly improved the overall efficiency compared to the previous generation, reducing heat generation by over 60%.

- Adopting high-performance and low-noise linear voltage regulator chip LT3041, with a 5-piece parallel design, effectively reduces output impedance, significantly improves transient response and power dynamic performance, and achieves high-quality power output characteristics of high bandwidth, low internal resistance, and low ripple; As one of the first tier representatives of voltage regulator chips, LT3041 has very low noise, high PSRR, and excellent linear performance, providing a very pure and high transient pure power supply for Brooklyn decoding.

- In order to fully utilize the powerful performance of the Brooklyn power supply, strict design is necessary. We have adopted a four layer PCB, gold-plated process, X7RMLCC capacitor, 0.001 precision low-temperature drift resistor, for Panasonic tantalum capacitor, rectified to low voltage difference Schottky, 4pcs main filter for Philips 4700uF 40V Vishay BC 058 series electrolysis, and multiple parallel large current. And to ensure the heat dissipation performance of the power board, we have attached a pure copper nickel plated thermal block to the bottom of the PCB, which provides more durable and stable heat dissipation.

- PCB process: Adopting a four layer PCB design, combined with high-quality gold plating technology, to ensure better electrical performance, signal integrity, and long-term reliability.

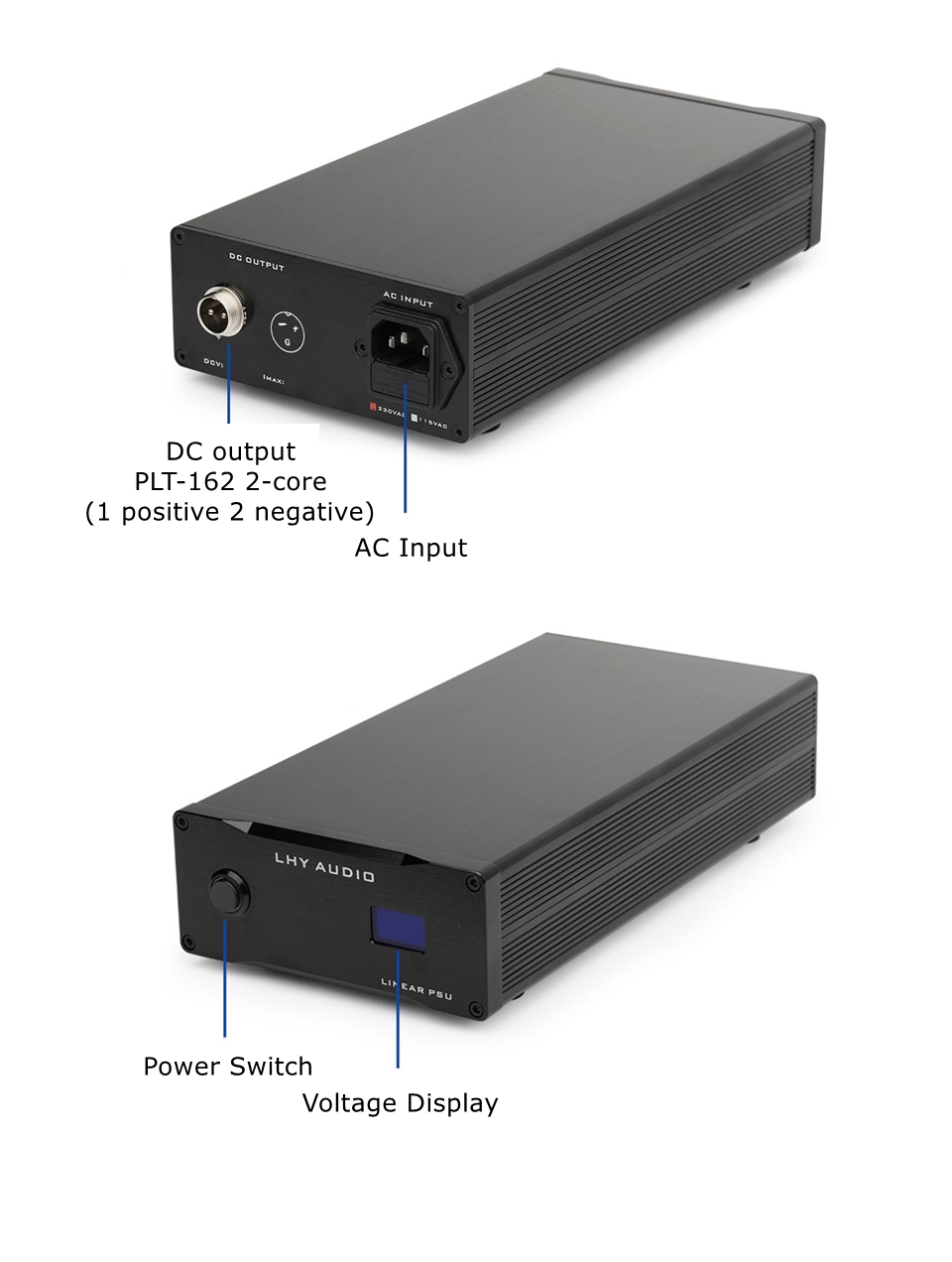

- The DC plug adopts for OYAIDE plug, with brass and 24K gold-plated conductors. The aviation head uses a PLT-16X aviation grade plug with a locking design, which provides a tighter connection, vibration resistance, anti detachment, and low impedance to ensure low signal transmission loss. The wire adopts for OYAIDE Core Electric's 102 SSC high-purity oxygen free copper precision conductor. By removing surface impurities and using diamond mold drawing technology, the conductor accuracy is controlled at the 1μm level to achieve smooth surface treatment, ensuring lossless transmission of audio signals and highly restored sound quality.

- The EMI AC filtering module can effectively suppress high-frequency interference and electromagnetic noise at the AC input end, enhance the overall anti-interference ability of the power system, and provide a purer and more stable power environment for the subsequent circuit.

- Adopting for Philips Vishay BC 058 series high-capacity electrolytic capacitors, it has excellent high current carrying capacity, significant voltage regulation and filtering effects, effectively improving the stability and dynamic response performance of the power system.

- For Noratel 50VA toroidal transformer has excellent characteristics such as low leakage flux and low noise, which can significantly improve the power supply purity and overall sound performance of the audio system.

Key Features:
- New generation LDO chip LT3041 multi chip parallel output.
- Adopting high current and low internal resistance Schottky rectification.
- Four layer PCB gold deposition thick copper process.
- Short circuit protection, overload and overheating protection.
- Supporting for OYAIDE 102 SSC high-end DC output cable.
- μV level low ripple.
- Low internal resistance, high efficiency, and large dynamic range.

Specification:
- Input voltage: AC220 - 240V / AC110 - 120V (optional)
- Output voltage: DC12V, 3.5A (rated value)/4A (instantaneous value)
- Ripple noise: no-load < 20uV; load 3.3A < 110uV
- Product size: 130 x 60 x 250mm
- Net weight: 3kg

Package Included:
- 1 x Linear Power Supply
- 1 x 1m Aviation 2P to 5.5*2.5 DC Output Cable (5521 for FIIO-M17, please leave a message before payment if you need it)
- 1 x AC Cable
