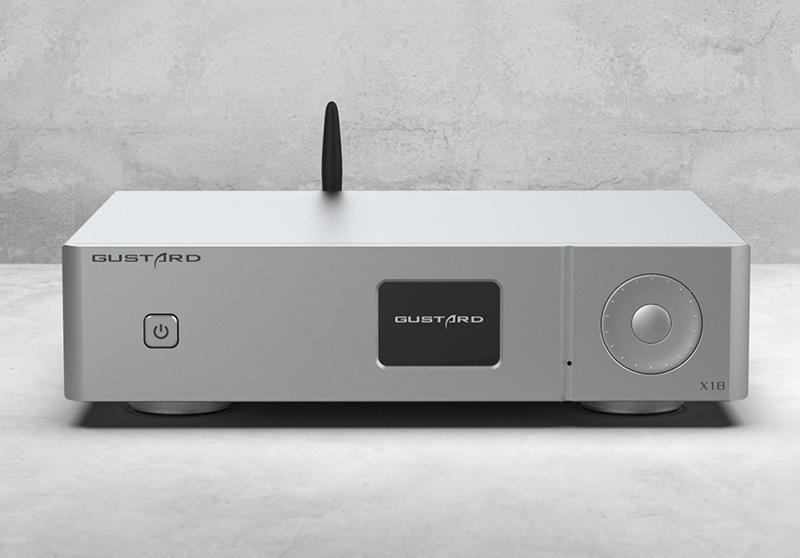

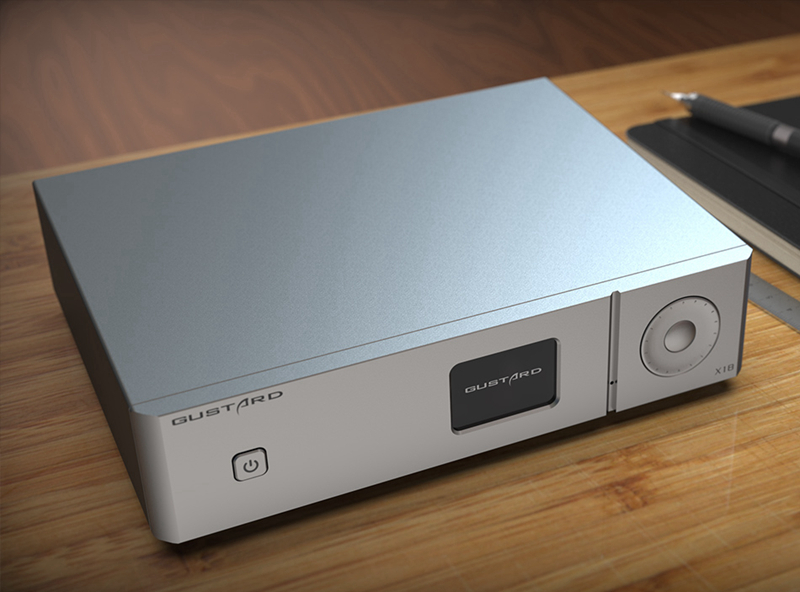

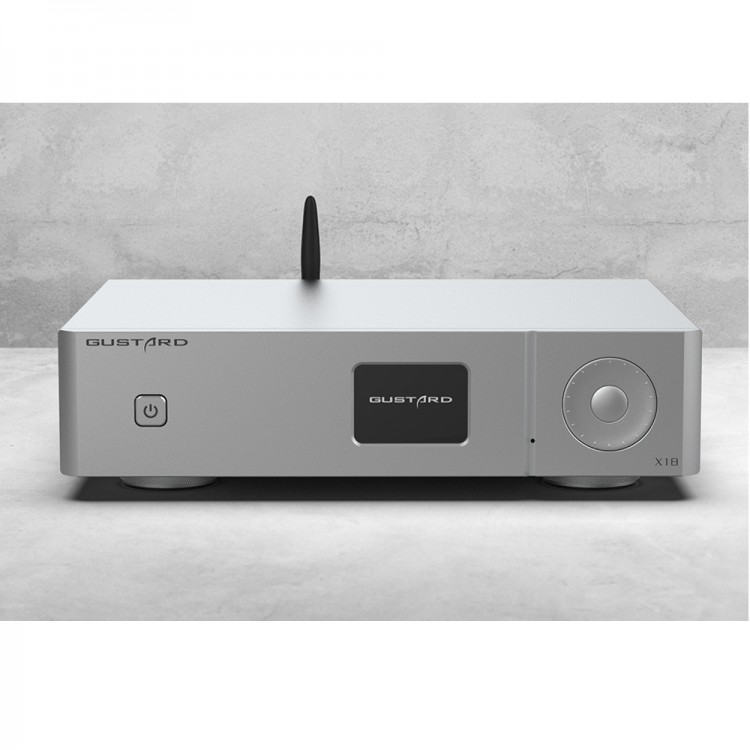

GUSTARD X18 ES9038PRO Balanced Bluetooth DAC BT5.0 USB DAC Decoder MQA Fully Decoded Silver

GUSTARD X18 ES9038PRO Balanced Bluetooth DAC BT5.0 USB DAC Decoder MQA Fully Decoded Silver

Features:
- ES9038PRO flagship chip for decoding, completely independent power supply, and independent grounding to obtain the best performance
- CPLD programmable logic chip: digital integrated circuit with self-constructed logic functions, clock management, 2nd PLL digital shaping, DOP demodulation, PCM/DSD depop switch and other exclusive technologies, laying a solid foundation for excellent sound quality
- IV op amp: 8 pieces of 0PA1612 are used, and their low distortion and low noise ensure the excellent performance of the whole machine. 0.1% precision resistors are used in key parts, ensuring its high-performance circuit
- DSD512 PCM768K MQA full decoding
- USB, AES, coaxial and optical support MQA full decoding
- AS318-B American femtosecond crystal oscillator
- MQA fully decodes 384K. MQA technology makes you immersive, as if you were in the original sound scene
- Multiple independent power supplies provide ample energy

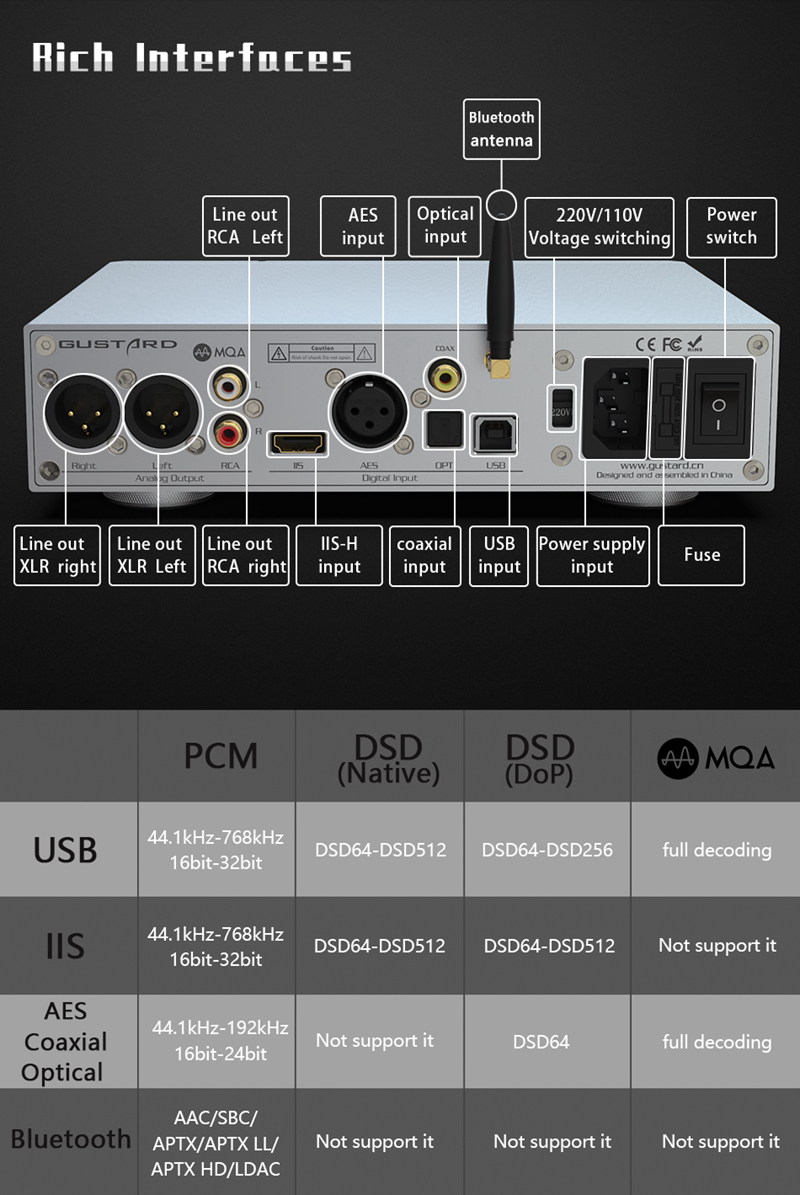

- IIS-H input (not connected to HDMI ports of PC, TV or others)
- Fully balanced, without any conversion. Complete 4-way output
- Various digital filtering and NOS modes: 7 kinds of PCM including M-FAST, M-SLOW, L-FAST/L-SLOW, H-FAST, APO-FAST and BRICK, and 4 types of DSD such as 47K, 50K, 60K and 70K
- Full function remote control; 0dB to -90dB
- XU216 chip for XMOS is used. DSD512 and PCM 768K
- Bluetooth 5.0 chip for APTX LL, APTX HD, and other high frequency codecs. 24B/96K high code transmission can be realized for LDAC. Bluetooth can be turned off in the menu
- Components for Nichicon. Independent voltage regulator, multi-stage filter, and multi-group voltage regulator, enabling no interference with each other
- Built-in linear power supply, dedicated ring-shaped transformer for high-quality audio

Specifications:
- The screen can be turned off and the brightness can be adjusted; the screen will automatically turn off when there is no operation within 10 seconds; the screen can be woken up by sample rate changes or operations
- Frequency Response: 20Hz-20kHz ±0.08dB
- Line Output: RCA Output Level: Single-ended 2.5Vrms at 0dBFS; Balanced 5.0Vrms at 0dBFS
- XLR interface definition: American standard (1 ground, 2 hot, 3 cold)
- Voltage: AC100V-240V (manual adjustment)

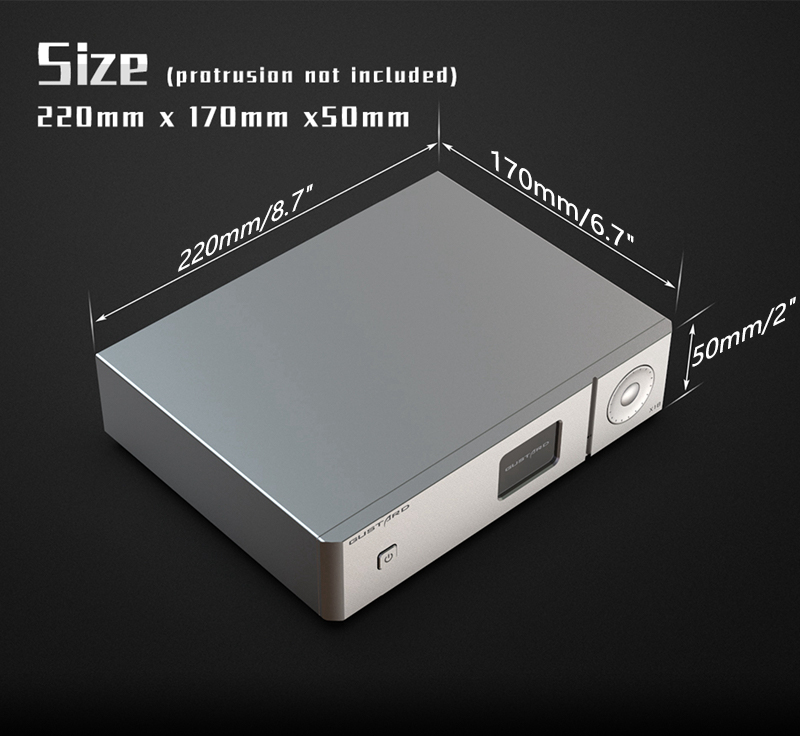

- Dimensions (without size of protrusions): 220 x 170 x 50mm/8.7 x 6.7 x 2" (WxDxH)

Package Included:
- 1 x DAC
- 1 x Power Cord
- 1 x USB Cable
- 1 x Remote Control
- 1 x Bluetooth Antenna
