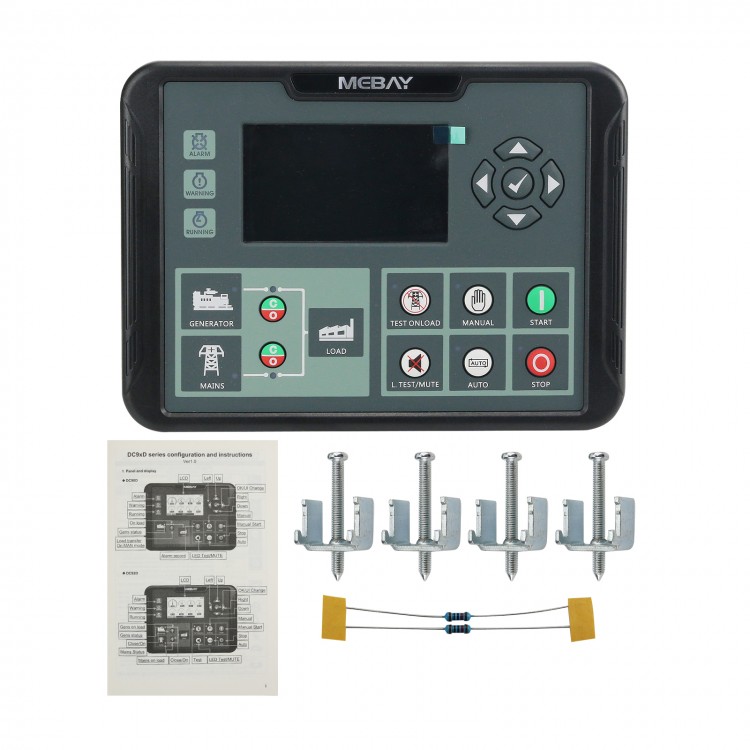

DC92DR MKII AMF Diesel Generator Controller Module Auto start Gasoline Genset RS985 CAN Interface PC Monitoring LCD

DC92DR MKII AMF Diesel Generator Controller Module Auto start Gasoline Genset RS985 CAN Interface PC Monitoring LCD

Description:
- This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
- 4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
- The controller has a built-in display interface of simplified Chinese, traditional Chinese, English, Spanish, and Russian, and the language interface can be customized according to customer requirements, All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.

DC9X Series Difference:
- There are four Models under DC9xD MK2 series.
- DC90D MK2: used for single machine automation. Start/Stop through remote start signal.
- DC92D MK2: Based on DC90D MK2, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
- DC90DR MK2: Based on DC90D MK2, it adds RS485 port.
- DC92DR MK2: Based on DC92D MK2, it adds RS485 port.

Features:
- Dual core 32bit high performance single chip microcomputer.
-4.3inch TFT colorful big screen LCD, Available in 5 languages, user’s language set if necessary.
- Indicator and number display through UI surface.
- Acrylic material is adapted to protect the screen. Silicone panels;
- USB Port: parameters can be set even without power through USD port to monitor in real time.
- With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
- Standard CAN communication port, built-in J1939 protocol, has matched more than 30 kinds of engines;
- Various kinds of parameters display.
- Input/output function, status can be shown directly.
- More categories of surface setting.
- Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
- Three class protection countdown function, which can set the maintenance time or date.
- The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is convenient to find the cause of the fault.
- Totally 10 relay’s output, among which 8 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 2 groups as non- contact terminals.
- With 5 switches input, up to 40 functions optional;
- 6 sensor simulation input connectors, 6 input types is configurable and various kinds of units can be set.
- Battery charging control function,which can protect the battery according to battery voltage status.
- Sensor can be self-defined by front face button or PC software.
- Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
- Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
- Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
- Standard water-proof rubber gasket. The waterproof can reach IP54
- Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
