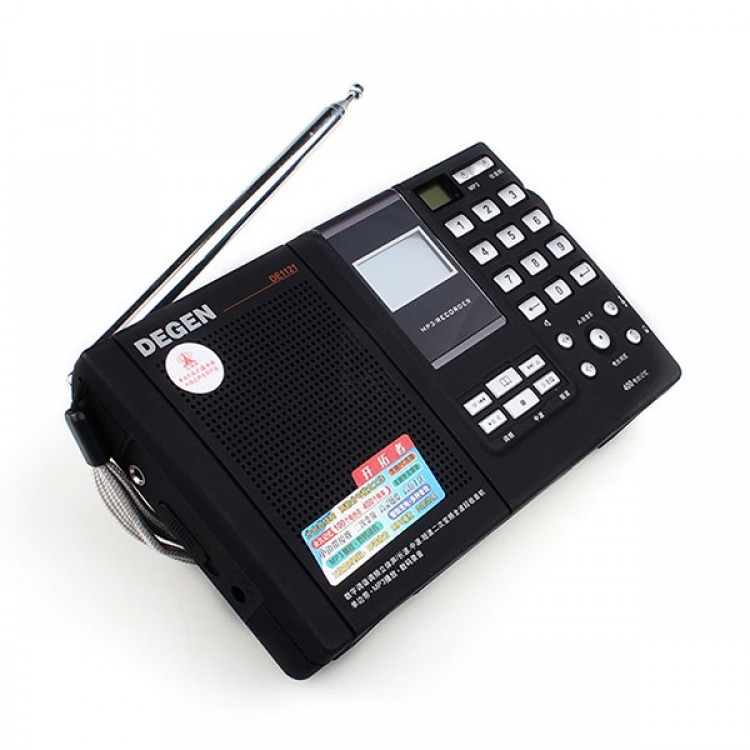

DEGEN DE1121 FM SW MW LW SSB Dual Conversion MP3 Radio Receiver Black

DEGEN DE1121 FM SW MW LW SSB Dual Conversion MP3 Radio Receiver Black

Desccription:
- Degen DE1121 world band radio with FM stereo, MW, SW and LW bands, Single Side Band (SSB) is also included within SW band.  This DE1121 has a removable MP3 player designed on it for the broadcasting program record and music program play.
- This radio & mp3 player – DE1121 has excellent reception with high sensitivity, selectivity, and excellent sound quality. Also, it is very easy and logical to operate on this multi-functions receiver


FM
 70.0MHz ~108.0MHz with 50KHz and 100KHz tuning step selectable

MW--LW
 150KHz ~1640KHz. 1KHz and 10KHz tuning step selectable

SW
 5.910MHz - 6.255MHz (49 meter), 7.010MHz - 7.405MHz (41 meter)

9.170MHz - 9.995MHz (31 meter), 11.510MHz - 12.155MHz (25 meter)

13.510MHz - 13.905MHz (22 meter), 15.010MHz - 15.705MHz (19 meter)

17.260MHz - 18.105MHz (16 meter), 21.410MHz - 21.955MHz (13 meter)25.610MHz - 26.100MHz (11 meter). 1KHz and 5KHz tuning step selectable


Features
- Specifications of RADIO
- SSB reception and fine tuning on the shortwave broadcasting band
- Dual conversion PLL technology used on MW, SW and LW band.
- SNR sensitivity: FM < 5uV, MW < 1mV/m, SW < 20uV.
- AM band signal selectivity: 20dB on wide bandwidth mode, 80dB on narrow bandwidth mode.
- Bandwidth selectable on the AM band: 4KHz narrow and 6KHz wide.
- Pre-setting 100 stations name in the inside memory, 4 frequencies plus on each station name, total 400 frequencies programmable pre-setting. Pre-setting station name and frequency can be customized edit, download and update via USB2.0 interface from PC.
- Multiple tuning mode: jog dial manual tuning, auto scan tuning, memory scan tuning, station name tuning, frequency direct entry tuning.
- Multiple tuning speed on jog dial tuning mode: fast, slow, and lock
- 40 level digital volume control and indication on LCD, support speaker mute function.
- LCD display for the radio and MP3 information with the backlight illumination.
- Alarm auto power on the radio by the timer pre-setting.
- Sleep auto power off the radio by the timer pre-setting from 1 to 99 minutes.
- Built-in the LOCAL-NOR-DX switch for different signal conditions using.
- Multiple tone mode on FM band: FM MONO and FM stereo.
- Keypad lock/unlock function.
- Built-in the smart charge circuit to recharge the Ni-MH rechargeable battery.
- Built-in speaker: 77mm diameter, 8 Ohm impedance.
- Built-in standard 3.5mm stereo output socket for earphone use, listen the FM stereo program via the earphone.
- Built-in standard 3.5mm line-in socket, 500mV max line-in input.
- Power supply support: 3pcs AA size 1.5V batteries, or external wall power adapter (DC 6V/300mA, center negative).
- Radio size: 163 x 103 x 32 mm / 6.4 x 4.1 x 1.3 inch.
- Radio weight : about 300g without battery installed.
- Specifications of MP3
- Support MP3, WAV and WMA format files (MP3 and WMA format for music play, MP3 and WAV format for record).
- Support MP3 record, MIC input record and line-in record.
- Record the broadcasting program received by radio unit on all band.
- Built-in memory: 256M Flash.
- Max record time: 16 hours.
- A-B repeat function.
- 4 cycle mode selectable and 6 EQ mode selectable.
-  USB 2.0 connection to PC and direct operate under windows OS.
- 128 x 64 dots LCD.
- MP3/WMA access rate: 32Kbps - 320Kbps.
- Power supply: 1pcs DF6 battery (included).
- Size of the MP3 unit: 58 x 36 x 15 mm.
- Weight of the MP3 uni: about 36g without DF6 battery installed

Package List:
- DEGEN DE1121 Radio with MP3 player ( Chinese vision )
- 1 x DF6 Ni-MH rechargeable battery
- 3 x 1300mAh Ni-MH rechargeable batteries
- 220V AC adapter
- Stereo earphones
- Line-in Cable
- USB connection cable
- Carrying pouch
- English manual ( PDF format in CD )
