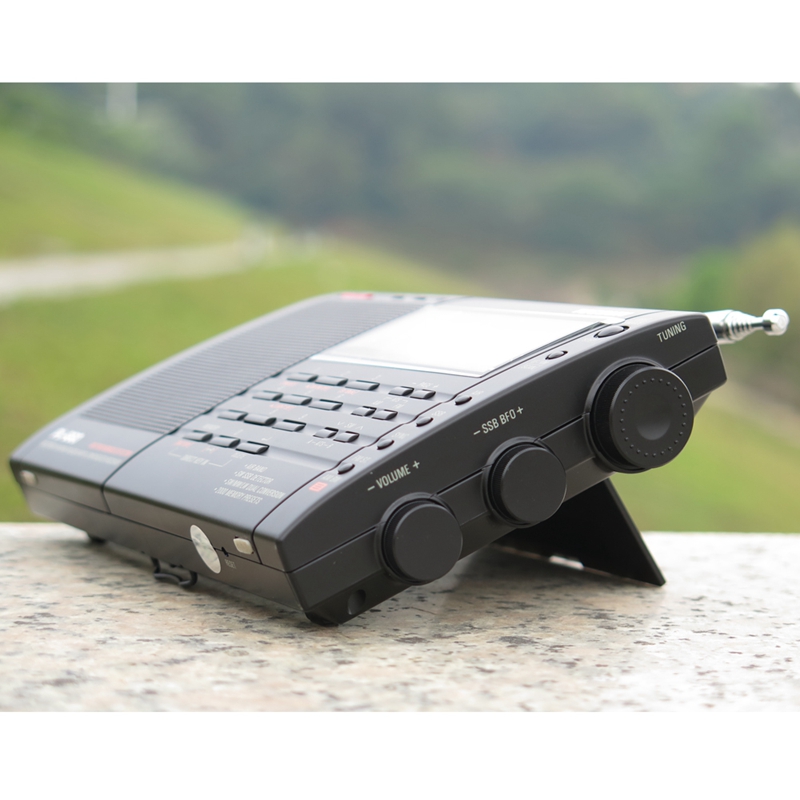

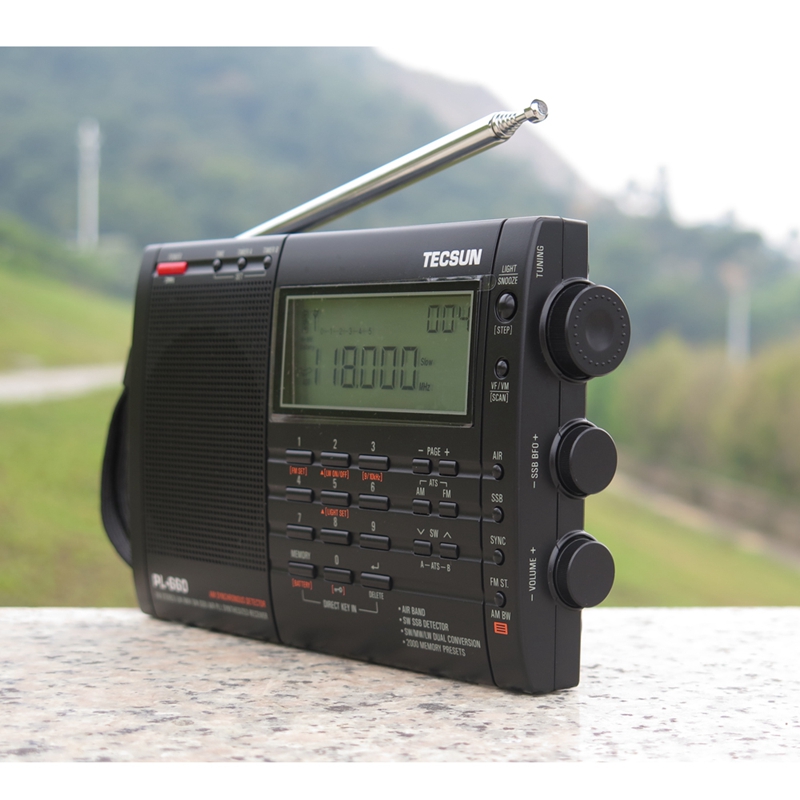

Tecsun PL-660 Radio Digital PLL AM FM SW LW SSB Air Band Radio Receiver Tecsun Radio
Features:
- Micro controller and digital PLL technology based design.
- Dual conversion technology used on the AM band to improve the signal reception sensitivity and selectivity.
- Synchronous detection technology used on the AM band to improve the mirror image suppression capability and co-channel interference suppression capability.
- World band broadcasting signal reception (FM band, MW band, LW band and SW band).
- Supports the AIR band signal reception.
- SSB reception on the shortwave broadcasting band, supports USB and LSB mode.
- LCD display the frequency, digital clock time, signal strength, and battery level (Battery is not included).
- Multi-function tuning knob for easy operation.
- AM band narrow / wide bandwidth selectable.
- FM-MONO and FM-STEREO selectable.
- Multiple signal strength control type selectable for different conditions and applications.
- Multiple tuning method selectable.
- Supports the ATS function on the FM band.
- Large size built-in memory supports the favorite station preset function.
- Built-in the digital clock.
- Built-in the alarm timer supports the auto power on function.
- Built-in the sleep timer supports the auto power off function.
- Built-in the smart charge circuit to charge the Ni-MH rechargeable battery.
- Two tone mode selectable: BASS and TREBLE.
- Supports keypad lock/unlock function.
- FM stereo program listening via the earphone.
Specifications:
- FM band frequency coverage: 87.0MHz to 108.0MHz, 87.5MHz to 108.0MHz, and 76.0MHz to 108.0MHz.
- MW band frequency coverage: 520KHz to 1710KHz (10KHz tuning step), 522KHz to 1620KHz (9KHz tuning step).
- LW band frequency coverage: 100KHz to 519KHz.
- SW band frequency coverage: 1711KHz to 29999KHz.
- AIR band frequency coverage: 118.0MHz to 137.0MHz.
- AM band dual conversion 1st IF = 55.845MHz, 2nd IF = 455KHz.
- SNR: FM band 60dB, MW band 45dB, LW band 45dB, SW band 50dB.
- SNR sensitivity: FM band < 3uV @ 30dB, MW band < 1mV/m @ 26dB, LW band < 5mV/m @ 26dB, SW band < 20uV @ 26dB, SSB < 1uV @ 10dB, AIR band < 5uV @ 10dB.
- Signal selectivity: FM band > 30dB @ +/-200KHz, MW band > 40dB @ +/-9KHz, LW band > 40dB @ +/-9KHz, SW band > 40dB @ +/-5KHz.
- FM band tuning step: 0.10MHz by FAST tuning mode, 0.01MHz by SLOW tuning mode.
- MW band tuning step: 9KHz or 10KHz by FAST tuning mode, 1KHz by SLOW tuning mode.
- LW band tuning step: 9HKz by FAST tuning mode, 1KHz by SLOW tuning mode.
- SW band tuning step: 5KHz by FAST tuning mode, 1KHz by SLOW tuning mode.
- AIR band tuning step: 25KHz by FAST tuning mode, 1KHz by SLOW tuning mode.
- Total 2000 favorite stations programmable preset in the built-in memory.
- Built-in 3.5mm socket for the external FM and shortwave antenna input.
- Built-in 3.5mm socket for the earphone use, listen the FM stereo program via the earphone.
- Static current: FM band < 50mA, MW band < 70mA, LW band < 70mA, SW band < 70mA, SSB < 70mA, AIR band < 70mA, power off < 80uA.
- Output power: speaker > 450mW, earphone > 10mW.
- Built-in speaker: diameter is about 77mm, impedance is 16 Ohm.
- The size of this PL-660 radio is about 187 x 114 x 33 mm / 7.4 x 4.5 x 1.3 inch.
- The weight of this PL-660 radio is about 470g without battery and any accessories.

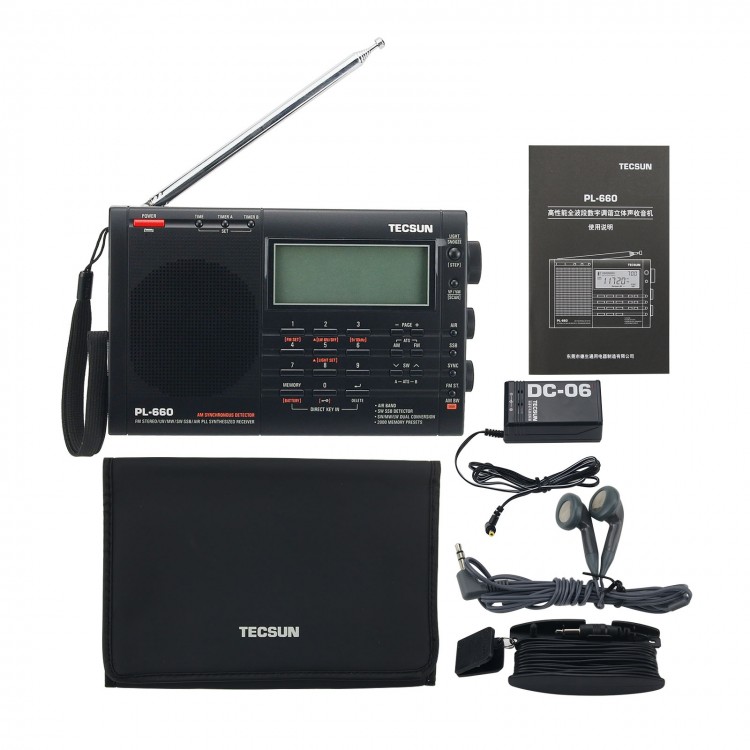

Package Included:
- 1 x PL-660 Radio
- 1 x Carrying Case Pouch
- 1 x Stereo Earphone
- 1 x External Antenna
- 1 x Power Supply
- 1 x Operation Manual
Note:
- Optional Color: Black, Sliver. Please tell us the color you want when purchasing. Thank you!
- Batteries are not included in this package.
