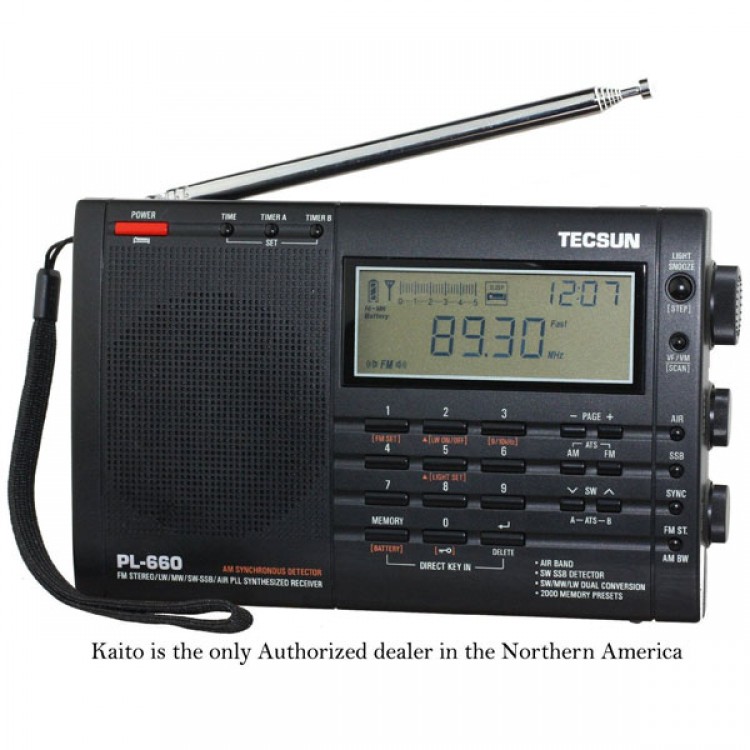

TECSUN PL660 AM FM SW Air SSB Synchronous Radio
The latest & most advanced model has arrived from Tecsun. The PL-660 is a world band receiver with a comprehensive frequency coverage including AM/FM, longwave, shortwave, single side band (SSB) and the aviation band (118-137MHz). For you convenience, there are 2,000 memories available for easy access to your favorite stations.
With its greatly enhanced sensitivity & selectivity thanks to AM synchronous detection and dual conversion technologies, the PL660 stands out as one of the best world band receiver among its peers.
Features:
Micro controller and digital PLL technology based design.
Dual conversion technology used on the AM band to improve the signal reception sensitivity and selectivity.
Synchronous detection technology used on the AM band to improve the mirror image suppression capability and co-channel interference suppression capability.
World band broadcasting signal reception (FM band, MW band, LW band and SW band).
Supports the AIR band signal reception.
SSB reception on the shortwave broadcasting band, supports USB and LSB mode.
LCD display the frequency, digital clock time, signal strength, and battery level.
Multi-function tuning knob for easy operation.
AM band narrow / wide bandwidth selectable.
FM-MONO and FM-STEREO selectable.
Multiple signal strength control type selectable for different conditions and applications.
Multiple tuning method selectable.
Supports the ATS function on the FM band.
Large size built-in memory supports the favorite station preset function.
Built-in the digital clock.
Built-in the alarm timer supports the auto power on function.
Built-in the sleep timer supports the auto power off function.
Built-in the smart charge circuit to charge the Ni-MH rechargeable battery.
Two tone mode selectable: BASS and TREBLE.
Supports keypad lock/unlock function.
FM stereo program listening via the earphone.
Specifications:FM band frequency coverage: 87.0MHz to 108.0MHz, 87.5MHz to 108.0MHz, and 76.0MHz to 108.0MHz.
MW band frequency coverage: 520KHz to 1710KHz (10KHz tuning step), 522KHz to 1620KHz (9KHz tuning step).
LW band frequency coverage: 100KHz to 519KHz.
SW band frequency coverage: 1711KHz to 29999KHz.
AIR band frequency coverage: 118.0MHz to 137.0MHz.
AM band dual conversion 1st IF = 55.845MHz, 2nd IF = 455KHz.
SNR: FM band 60dB, MW band 45dB, LW band 45dB, SW band 50dB.
SNR sensitivity: FM band < 3uV @ 30dB, MW band < 1mV/m @ 26dB, LW band < 5mV/m @ 26dB, SW band < 20uV @ 26dB, SSB < 1uV @ 10dB, AIR band < 5uV @ 10dB.
Signal selectivity: FM band > 30dB @ +/-200KHz, MW band > 40dB @ +/-9KHz, LW band > 40dB @ +/-9KHz, SW band > 40dB @ +/-5KHz.
FM band tuning step: 0.10MHz by FAST tuning mode, 0.01MHz by SLOW tuning mode.
MW band tuning step: 9KHz or 10KHz by FAST tuning mode, 1KHz by SLOW tuning mode.
LW band tuning step: 9HKz by FAST tuning mode, 1KHz by SLOW tuning mode.
SW band tuning step: 5KHz by FAST tuning mode, 1KHz by SLOW tuning mode.
AIR band tuning step: 25KHz by FAST tuning mode, 1KHz by SLOW tuning mode.
Total 2000 favorite stations programmable preset in the built-in memory.
Built-in 3.5mm socket for the external FM and shortwave antenna input.
Built-in 3.5mm socket for the earphone use, listen the FM stereo program via the earphone.
Static current: FM band < 50mA, MW band < 70mA, LW band < 70mA, SW band < 70mA, SSB < 70mA, AIR band < 70mA, power off < 80uA.
Output power: speaker > 450mW, earphone > 10mW.
Built-in speaker: diameter is about 77mm, impedance is 16 Ohm.
The power supply used on this PL-660 radio is 4pcs AA size 1.5V batteries, or +6V/300mA external DC power supply (center negative).
The size of this PL-660 radio is about 187 x 114 x 33 mm / 7.4 x 4.5 x 1.3 inch.
The weight of this PL-660 radio is about 470g without battery and any accessories.
