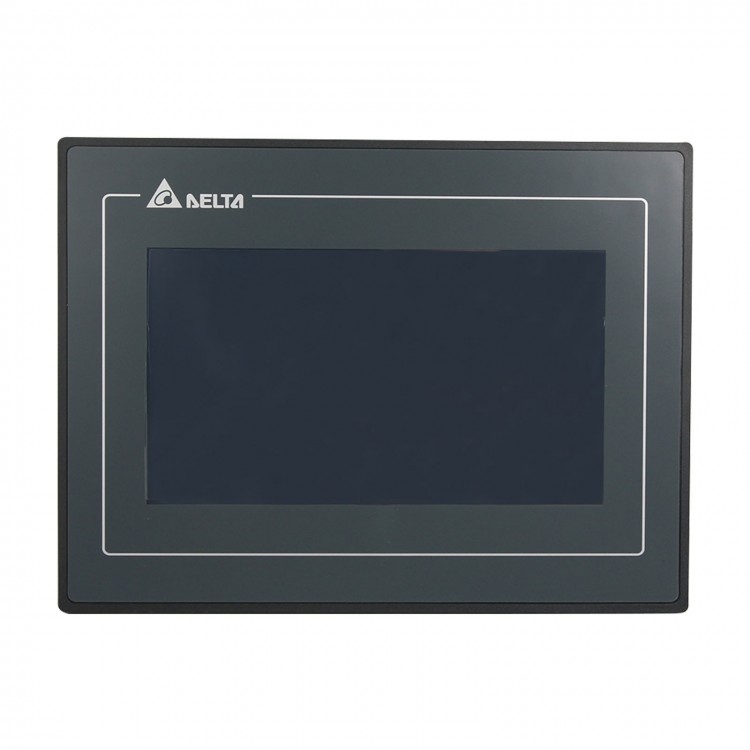

Delta DOP-107BV HMI Touch Screen 7 Inch Human Machine Interface Display Touch Panel 800 x 480 Pixel

Delta DOP-107BV HMI Touch Screen 7 Inch Human Machine Interface Display Touch Panel 800x480 Pixel

Specification:
Display Size: 7" TFT LCD
Display Color: 65,535 colors
Resolution (Pixels): 800 x 480
Back Light: LED back light
Display Area: 154.08mm x 85.92mm
Brightness: 400cd/m²(Typ.)
CPU: ARM Cortex-A8 (800MHz)
Flash ROM (bytes): 256 MB
RAM (bytes): 256 MB
Touch Panel: 4-wire resistance type > 1,000,000 operated
Buzzer: Multi-Tone Frequency (2K ~ 4K Hz)/80dB
Network Port: N/A
USB: 1 USB Slave Ver 2.0/1 USB Host Ver 2.0
SD: N/A
COM1: RS-232 (supports flow control) /RS-485
COM2: RS-422 /RS-485
COM3: N/A
Perpetual Calendar: built-in
Cooling Method: natural air cooling
Safety Approval: CE / UL (please use shielding network cable or magnetic ring 300 ohm/100MHz filtering)
Waterproof Grade: IP65 / NEMA4 / UL TYPE 4X (indoor use only)
Operation Voltage: DC +24V (-15% ~ +15%) (please use isolated power supply )
Voltage Endurance: between DC 24V terminal and FG terminals, AC 500V for 1 minute
Power Consumption: 8.6W (Max)
Backup Battery: 3V lithium battery CR2032 x 1
Backup Battery Life: It depends on the temperature used and the conditions of usage, about 3 years or more at 25℃
Operation Temperature: 0℃~ 50℃
Storage Temperature: -20℃~ +60℃
Working Environment: 10% ~ 90% RH [0 ~ 40℃], 10% ~ 55% RH [41 ~ 50℃]; Pollution Grade 2
Vibration Resistance: IEC61131-2 specifies continuous vibration 5 Hz ~ 8.3 Hz amplitude 3.5 mm; 8.3 Hz ~ 150 Hz amplitude 1G
Shock Resistance: IEC60060-2-27 specifies shock resistance 11ms, 15G Peak, X, Y, Z directions 6 times each
Dimensions (W) x (H) x (D) mm: 215 x 161 x 35.5
Panel Cutout (W) x (H) mm: 196.9 x 142.9
Weight: about 700g

Package List:
1 x Touch Screen
