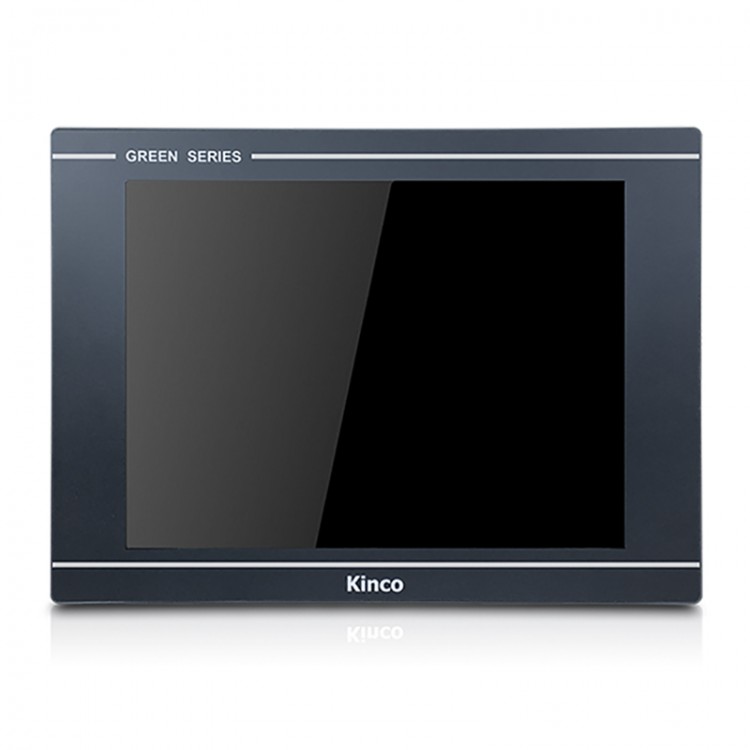

Kinco GL070 Touch Screen 7 Inch Human Machine Interface Touch Panel 800*480 without Ethernet Port

Availability: In stock, usually dispatched in 1 business day

  • Price:$92.47
  • Price in reward points: 925 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $90.62 $88.77 $86.00 $82.30 Contact US
Quantity:

Kinco GL070 Touch Screen 7 Inch Human Machine Interface Touch Panel 800*480 without Ethernet Port

Description:
-GREEN series is a new generation of industrial human-machine interface. It adopts a new architecture design and strict process to create a high-quality human-machine model.
-GREEN series human-machine interface adopts mainstream processors in the market, which not only guarantees the long-lasting life of the products, but also greatly improves the performance of the products.

Performance Specification:
Display Size: 7" TFT
Display Area: 154.08 (W) x 85.92 (H)
Resolution: 800*480 pixel
Display Color: 16.77 million color
Display View Angle: 70/70/50/70 (left/right/up/down)
Contrast: 500:1
Backlight: LED
Brightness: 250cd/m²
Backlight Life: more than 30000 hours
Touch Panel: 4-wire precision resistance network (surface hardness 4H)
CPU: ARM RISC 32Bit 792MHz
Memory: 128MB NAND Flash Memory+128MB DDR3 Memory
RTC: built-in RTC
Expandable Memory: 1 USB Host
Printer Port: USB Host/Serial port
Ethernet: none
Program Download: USB Slave/U disk
COM Port: COM0:RS232/RS485/RS422; COM2:RS232

Electrical Specification:
Input Range: DC 10V~DC 28V
Power: 3.6W @24V DC
Allowable Loss of Power : <3ms
Insulation Resistance: greater than 50MΩ@ 500V DC
Hi-pot Test: 500V AC 1 minute

Structure Specification:
Shell Material: engineering plastics
Dimensions (mm): 204 x 150 x 34mm
Cutout size (mm): 192 x 138mm
Weight: 0.5kg

Environment Specification:
Working Temperature: 0~50℃
working Humidity: 10~90% RH (non-condensing)
Storage Temperature: -20~60℃
Storage Humidity: 10~90% (non-condensing)
Sine Vibration Test: 10~500Hz, 30m/s², three axis/hour
Cooling Method: natural air cooling

Certification:
Panel Protection Grade: IP65 (4208-93)
CE Certification: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005

Software:
Configuration Software: Kinco DTools V3.3 and above version

Package List:
1 Set of Touch Screen
