MCGS TPC7022Ki White 7" Embedded HMI Display with 192mm × 138mm Cutout 1 Ethernet Port & 128MB+8MB

MCGS TPC7022Ki White 7" Embedded HMI Display with 192mm × 138mm Cutout 1 Ethernet Port & 128MB+8MB

Features:
* A new generation of embedded all-in-one touch screen based on the Linux system
* The latest multi-core technology, high performance, premium quality, and high expandability
* Supports RS485 and RS232 communication
* With advanced protection measures
* Brand-new McgsPro configuration software
* With a plastic enclosure

Supporting Software:
* McgsPro is a configuration software designed for integrated touch panels. Compared to the older MCGSE embedded configuration software, McgsPro offers optimized appearance and performance for each configuration component.
* Classic view layout
* Brand-new commonly used features
* Enhanced and refined functionalities
* Fully compatible with MCGSE

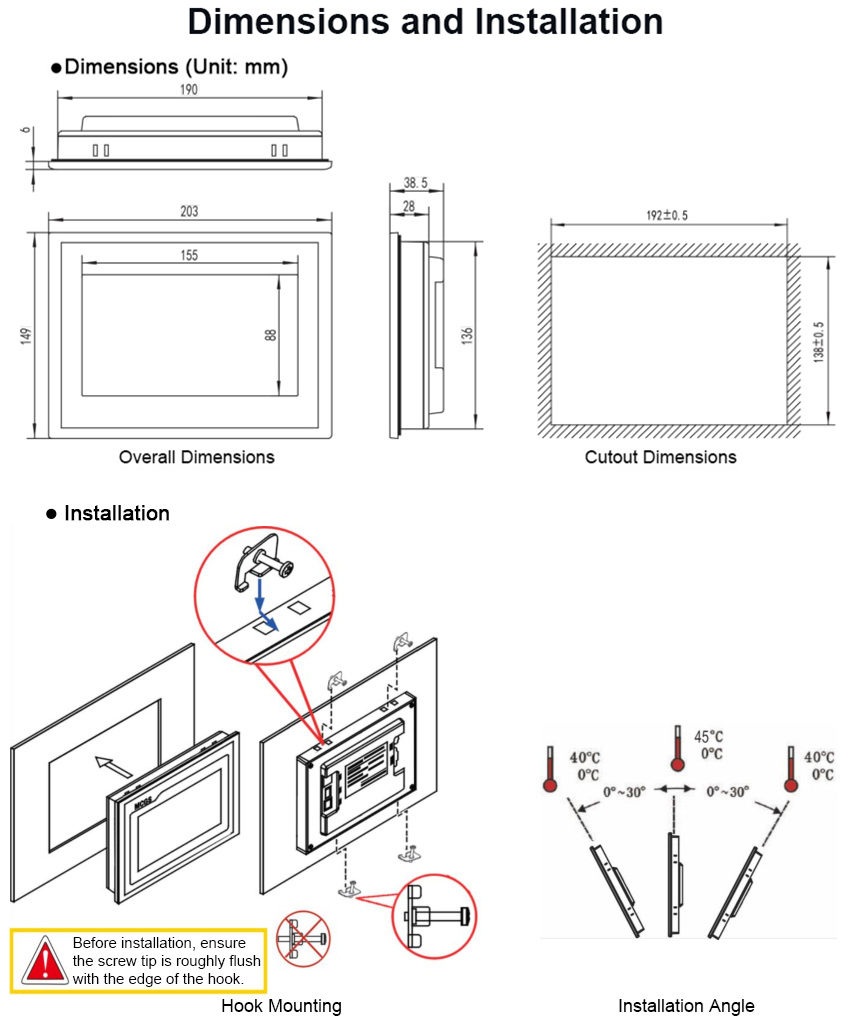

Mounting Method:
* Hook Mounting: Compact and refined. Suitable for various scenarios with flexible options.
* Note: When using hook mounting, do not over-tighten the screws; installation angle should be between 0° and 30°.

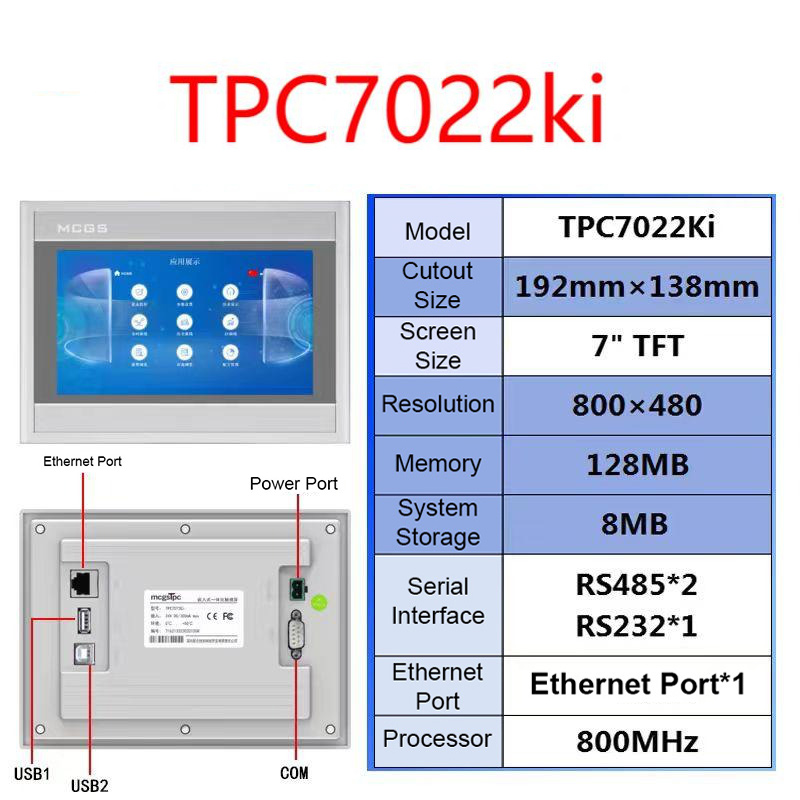

Product Specifications:
Product Features:
* LCD Screen: 7" TFT
* Backlight Type: LED
* Display Colors: 262K
* Resolution: 800 × 480
* Brightness: 250cd/㎡
* Touchscreen: 4-wire resistive
* Input Voltage: 24 ± 20% VDC
* Rated Power: 5W
* Processor: Cortex-A7 multi-core 800MHz
* Memory: 128MB
* System Storage: 8MB
* Hardware Clock: Built-in
* Configuration Software: McgsPro 3.3.6.6354 SP1.3 and above

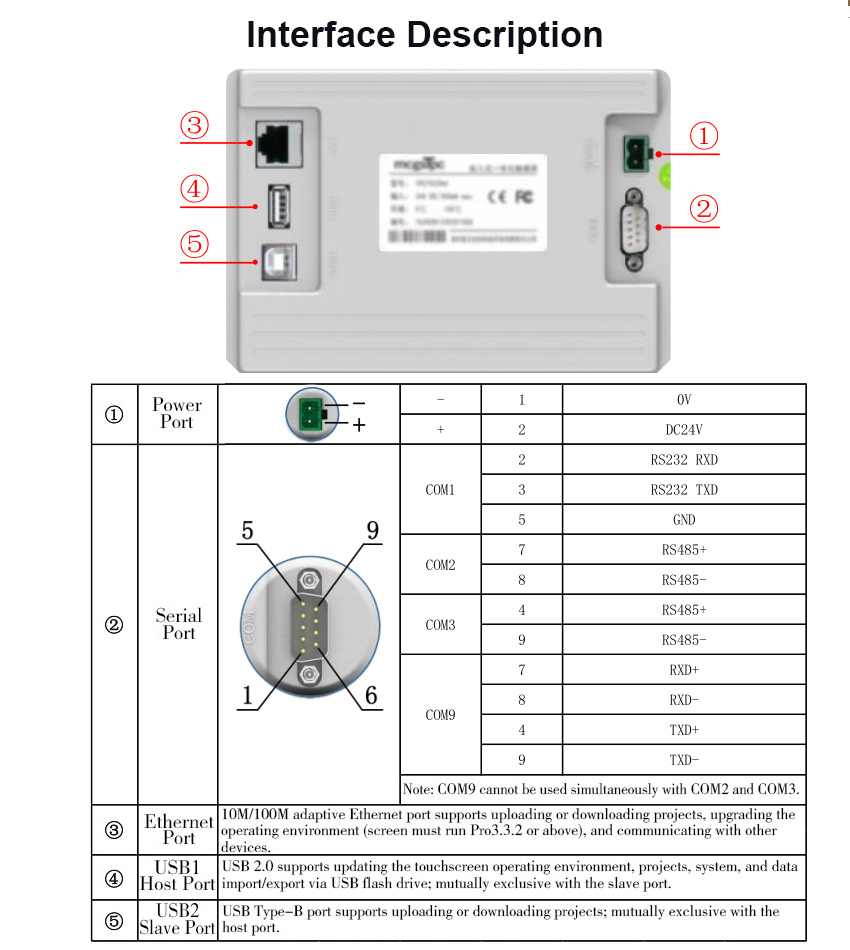

External Interfaces:
* Serial Interfaces:
  * * Mode 1: COM1 (RS232), COM2 (RS485), and COM3 (RS485)
  * * Mode 2: COM1 (RS232), and COM9 (RS422)
* USB Interface: 1 × Host/Slave
* Ethernet Port: 1 × 10/100M adaptive

Environmental Conditions:
* Operating Temperature: 0°C to 45°C
* Operating Humidity: 5% to 90% (non-condensing)
* Storage Temperature: -10°C to 60°C
* Storage Humidity: 5% to 90% (non-condensing)

Product Specifications:
* Housing Material: Engineering Plastic
* Overall Dimensions: 203mm × 149mm
* Cabinet Cutout: 192mm × 138mm
* Display Area: 155mm × 88mm

Certifications:
* Product Certification: Complies with CE/FCC certification standards
* Protection Rating: IP65 (Front Panel)
* Electromagnetic Compatibility: Industrial Level 3

Packing List:
* 1 × HMI Display Screen

Packaging Details:
* Weight: 0.8kg

Note:
* Communication cable is not included.
