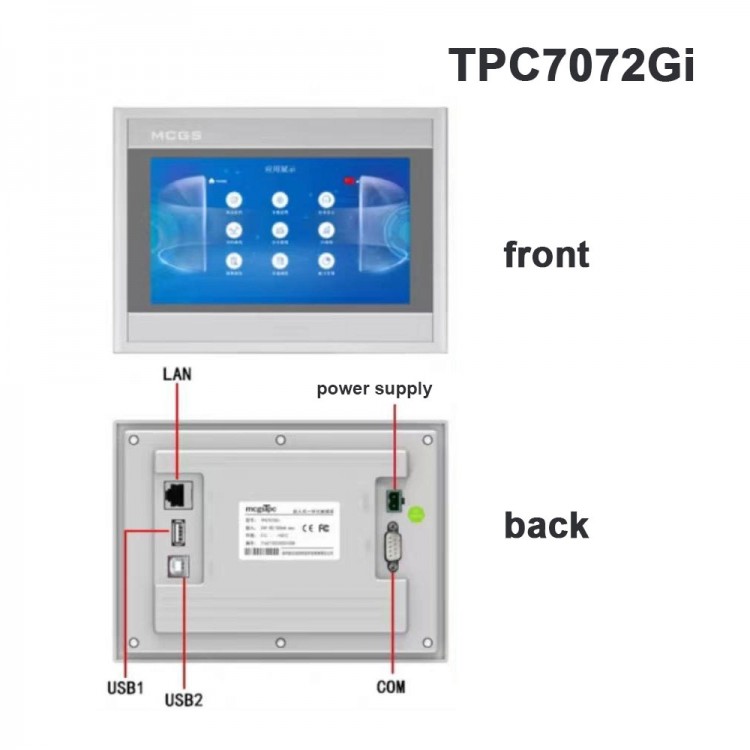

G Series MCGS TPC7072Gi White 7-Inch HMI Display with 192mm×138mm Cutout 1 Ethernet Port 512MB+8GB
Description of TPC7072Gi:
The TPC7072Gi is a newly launched high-performance touch screen, equipped with an advanced Cortex quad-core CPU running at 1GHz. It features a 7-inch high-brightness TFT LCD display with a resolution of 800×480, along with a 4-wire resistive touch screen. The device comes pre-installed with the MCGS configuration software (Linux version, runtime edition), offering reliable performance for industrial automation applications.
Specifications of TPC7072Gi:
* Panel Cutout Dimensions: 192mm × 138mm
* Screen Size: 7-inch TFT
* Resolution: 800×480
* Memory: 512MB
* System Storage: 8GB
* Serial Ports: 2 × RS485 and 2 × RS232
* Ethernet Port: 1 × Ethernet Port
* Processor: 1GHz
Packing List:
* 1 × HMI Display
Packaging Details:
* Weight: 0.8kg
