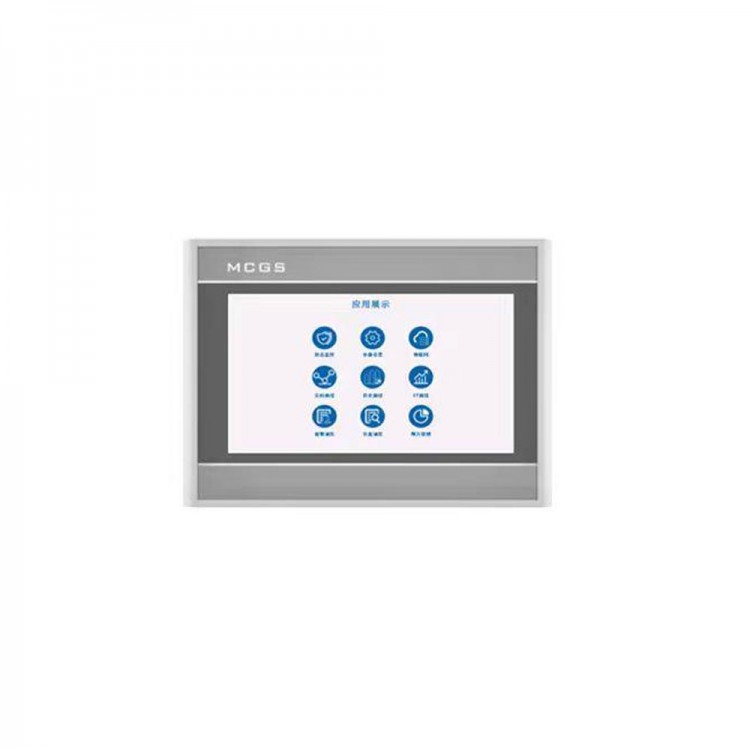

N Series MCGS TPC7032Ni-4G 7-Inch HMI IoT Screen Touch Screen with 192mm×138mm Cutout & 256MB+512MB

N Series MCGS TPC7032Ni-4G 7-Inch HMI IoT Screen Touch Screen with 192mm×138mm Cutout & 256MB+512MB

Description:
The HMI touch screen features a 7-inch TFT LCD with LED backlight, 800×480 resolution, 262K colors, and a 4-wire resistive touch panel. Powered by a processor at 1GHz. It runs McgsPro configuration software. The device operates on 24V DC ±20% with a rated power of 6W.

Specifications:
Product Features:
* LCD Display: 7-inch TFT
* Backlight Type: LED
* Display Colors: 262K colors
* Resolution: 800×480
* Brightness: 250cd/m²
* Touch Screen: 4-wire resistive
* Input Voltage: 24V DC ±20%
* Rated Power: 6W
* Processor: 1GHz
* Memory: 256MB
* System Storage: 512MB
* Configuration Software: McgsPro

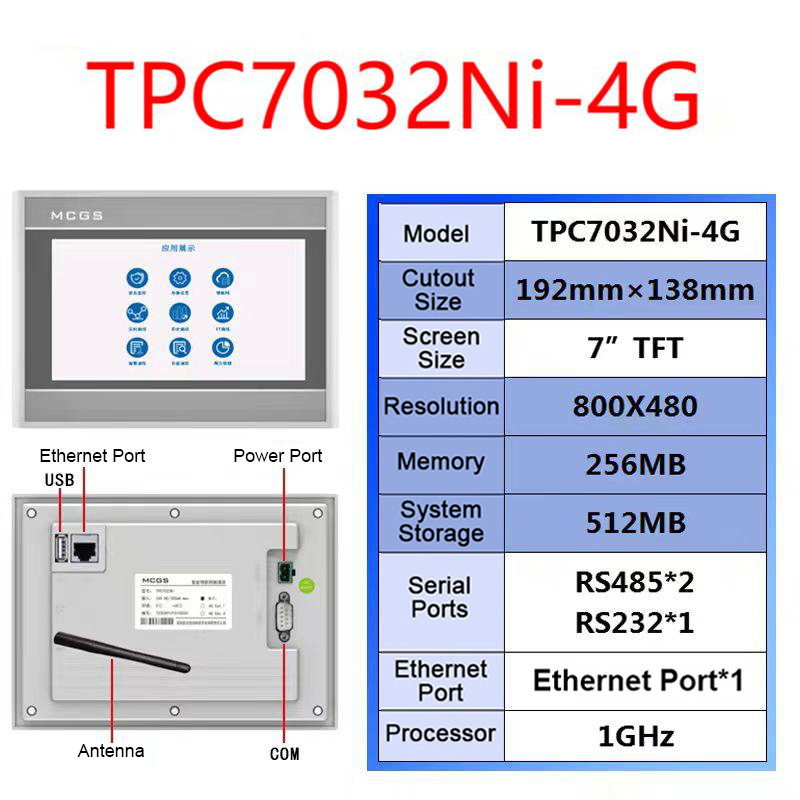

External Interfaces:
* Serial Ports:
  **Option 1: COM1 (RS232), COM2 (RS485), and COM3 (RS485)
  **Option 2: COM1 (RS232) and COM9 (RS422)
* USB Port: 1 × USB Host
* Ethernet: 1 × 10/100M adaptive Ethernet port

Wireless Expansion:
* Optional Wi-Fi Interface: Supports IEEE 802.11 b/g/n
* Optional 4G Interface: Compatible with China Mobile/China Unicom/China Telecom

Environmental Conditions:
* Operating Temperature: 0°C to 50°C
* Storage Temperature: -10°C to 60°C
* Operating Humidity: 5% to 90% (non-condensing)

Mechanical Specifications:
* Housing Material: Engineering plastic
* Dimensions: 203mm × 149mm
* Panel Cutout Dimensions: 192mm × 138mm

Certifications & Protection:
* Certification: CE compliant
* Protection Rating: IP65 (front panel)
* EMC Level: Industrial Grade 3

Packing List:
* 1 × IoT Touch Screen
* 1 × Antenna

Packaging Details:
* Weight: 0.8kg
