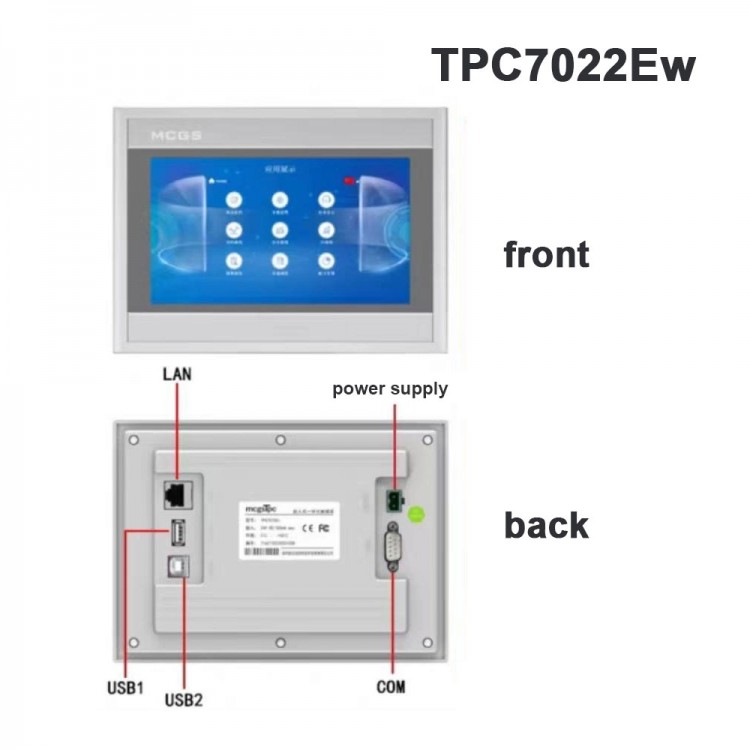

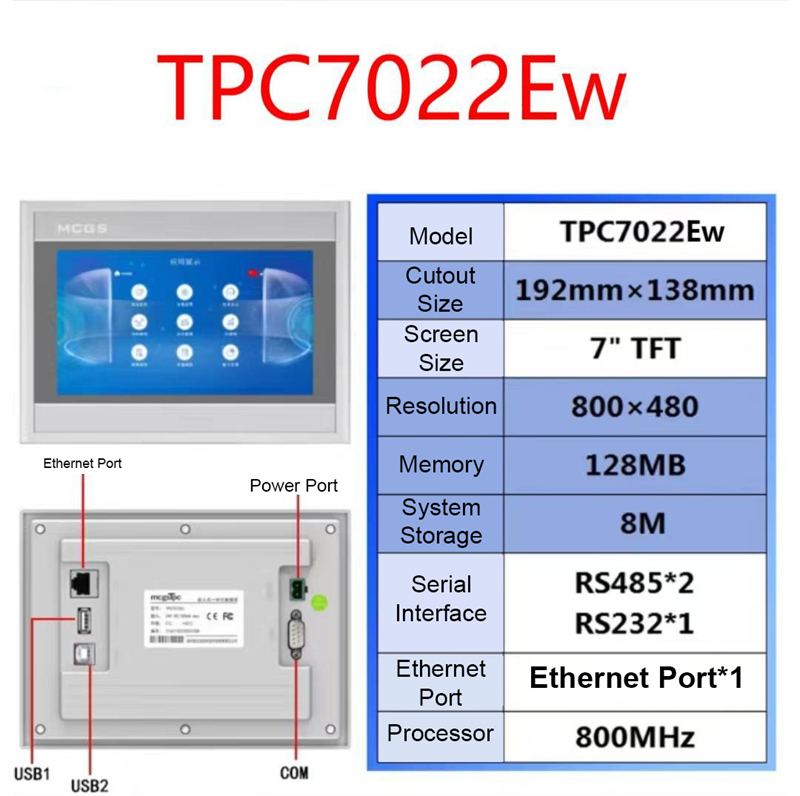

MCGS TPC7022Ew 7" Embedded HMI (E2 Series White 800MHz 1 Ethernet Port) w/ 192mm × 138mm Cutout 128M

MCGS TPC7022Ew 7" Embedded HMI (E2 Series White 800MHz 1 Ethernet Port) w/ 192mm × 138mm Cutout 128M

Description:

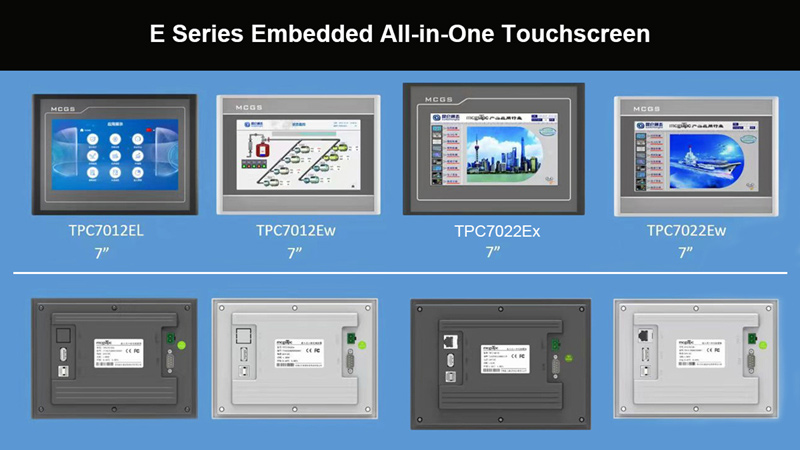

McgsTpc E Series Touch Panel is a new generation of embedded all-in-one touch screens, featuring the latest Linux-based technology, optimal configuration, and cost-effective performance.

Features:
* Process: A 600MHz (E1 series)/800MHz (E2 series) processor meets industrial computing and display requirements.
* Multiple Interfaces: Built-in RS232/RS485/Ethernet/USB and other interface options for easier connectivity.
* High-Resolution Wide Screen: Features a 7-inch display with 800×480 resolution, enhancing visual detail.
* Data Storage: It includes SPI NAND flash with 8MB storage, fulfilling basic needs for equipment manufacturers.
* Sealed Enclosure: The entire series adopts a sealed enclosure with moisture and dust resistance, ensuring excellent protection.
* Multiple Cutout Sizes: E1 and E2 series offer various panel cutout dimensions, providing flexible on-site installation solutions.
* Multi-Language Support: It supports over 100 languages, allowing user-customizable settings for more flexible configuration.
* Fast Boot-Up: It starts up in just 7-9 seconds from power-on to operational interface, delivering a quick user experience.

Mounting Method:
* When using hook mounting, do not over-tighten the screws; installation angle should be between 0° and 30°.

Supporting Software:
* McgsPro is a configuration software designed for integrated touch panels. Compared to the older MCGSE embedded configuration software, McgsPro offers optimized appearance and performance for each configuration component.
* Classic view layout
* Brand-new commonly used features
* Enhanced and refined functionalities
* Fully compatible with MCGSE

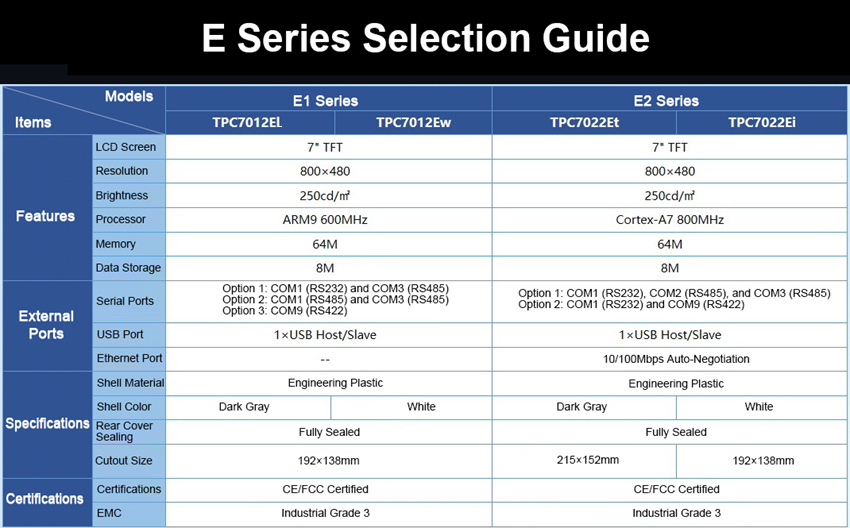

Specifications of E2 Series:
Basic Parameters:
* Structure: Industrial Plastic
* Installation Method: Flush Mounting
* Power Supply: DC24V/6W
* Net Weight: Approx. 0.8kg
* Enclosure Color: Dark Gray/White
* Overall Dimensions: 226.5mm×163mm×36mm/203mm×149mm×38.5mm
* Front Panel: 226.5mm×163mm×6mm/203mm×149mm×6mm
* Panel Viewing Area: 154.8mm×87.8mm
* Enclosure Outline: 213mm×150mm×30mm/189.2mm×135.2mm×32.5mm
* Cabinet Cutout: 215mm×152mm/192mm×138mm

Product Features:
* LCD Screen: 7" TFT LCD, Resolution 800×480, with LED Backlight
* CPU Board: Cortex-A7 CPU, 800MHz Main Frequency
* Touch Screen: 4-Wire Resistive
* Memory: 64M
* Data Storage: 8M

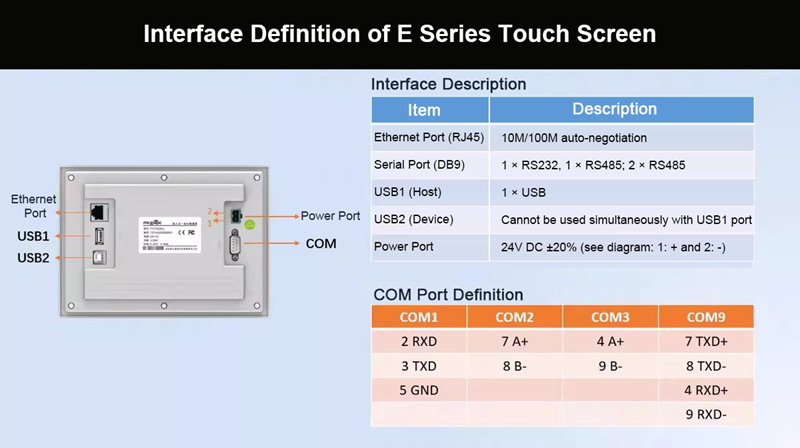

* Interfaces: 1×RS232, 2×RS485, 1×Ethernet Port, and 2×USB (1Host, 1 Slave)

Application Environment:
* Operating Temperature: 0℃-45℃
* Vibration Frequency: 10-57Hz or 57-150Hz
* Operating Humidity: 5%-90%
* Vibration Acceleration: 0.075mm 9.8m/s²
* Storage Temperature: -10℃ to 60℃
* Vibration Sweep Rate: Oct/min≤1

Product Certifications:
* CE Certification: Complies with EN55022 and EN55024 Standards
* FCC Certification: Complies with PART15 Standard
* EMC: Complies with Industrial Grade 3 Standard
* Protection Rating: IP65 (Front Panel)

Packing List:
* 1 × HMI Display Screen

Packaging Details:
* Weight: 0.8kg

Note:
* Communication cable is not included.
