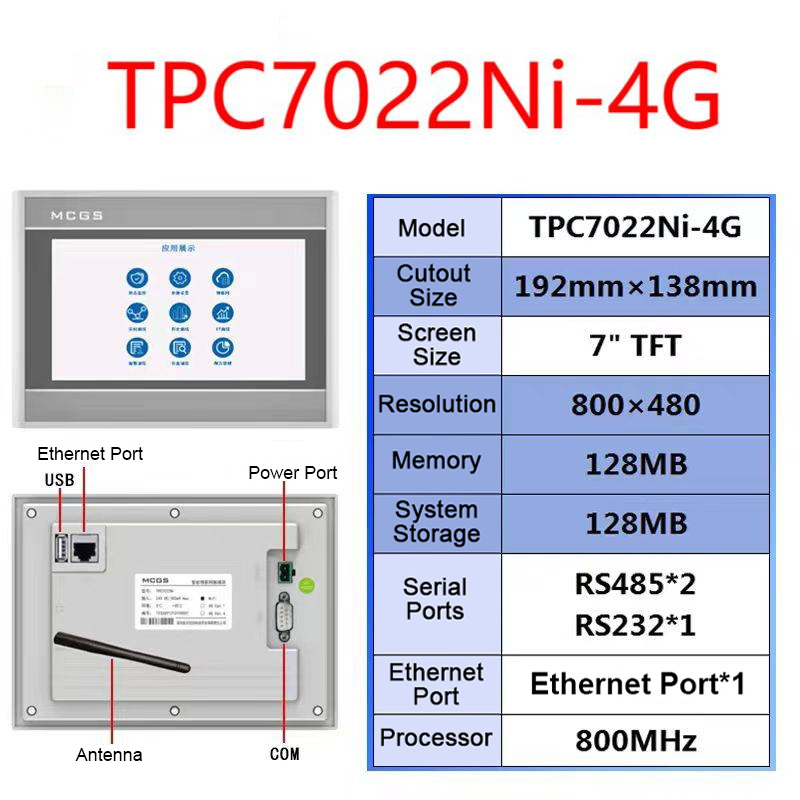

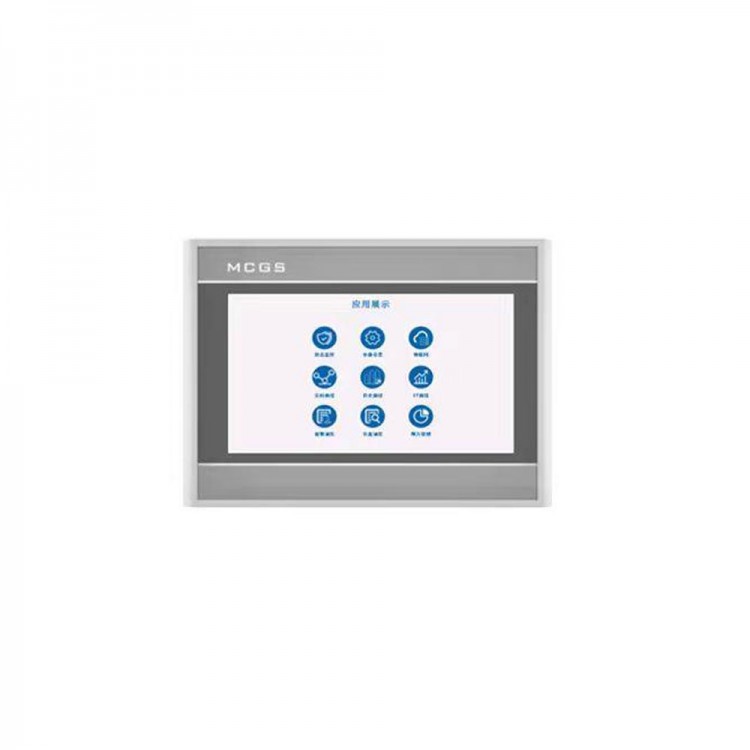

N Series MCGS TPC7022Ni-4G 7-Inch HMI Display IoT Screen with 192mm×138mm Cutout Size 128MB+128MB

N Series MCGS TPC7022Ni-4G 7-Inch HMI Display IoT Screen with 192mm×138mm Cutout Size 128MB+128MB

Features:
* 7-Inch IoT touch screen
* With a resolution of 800×480
* Powered by a processor (for ARM) with a main frequency up to 800MHz
* Equipped with 128MB memory and 128MB NAND system storage
* Uses the McgsPro configuration software version
* Optional 4G and Wifi ports
* Includes Ethernet, USB, 1×RS232 port, and 2×RS485 ports
* The housing is made of industrial-grade plastic
* Cutout dimensions: 192mm×138mm. Compatible with Weinview and can be directly replaced

Specifications:
Product Characteristics:
* LCD Screen: 7-inch TFT
* Backlight Type: LED
* Display Colors: 65,536
* Resolution: 800×480
* Display Brightness: 250cd/m²
* Touch Screen: 4-wire resistive
* Input Voltage: 24±20% VDC
* Rated Power: 6W
* Processor: 800MHz for ARM
* Memory: 128MB
* System Storage: 128MB
* Configuration Software: McgsPro

Wireless Expansion:
* Optional Wi-Fi Interface: Wi-Fi IEEE 802.11 b/g/n
* Optional 4G Interface: Supports China Mobile/China Unicom/China Telecom

External Interfaces:
* Serial Ports:
   ** Mode 1: COM1 (RS232), COM2 (RS485), and COM3 (RS485)
   ** Mode 2: COM1 (RS232) and COM9 (RS422)
* USB Interface: 1 × Host
* Ethernet Port: 1 × 10/100M Adaptive

Environmental Conditions:
* Operating Temperature: 0℃ to 50℃
* Operating Humidity: 5% to 90% (non-condensing)
* Storage Temperature: -10℃ to 60℃
* Storage Humidity: 5% to 90% (non-condensing)

Product Specifications:
* Housing Material: Engineering plastic
* Housing Color: Industrial white
* Overall Dimensions: 203mm × 149mm
* Panel Cutout Dimensions: 192mm × 138mm

Product Certification:
* Product Certification: Complies with CE/FCC certification standards
* Protection Level: IP65
* Electromagnetic Compatibility: Industrial Grade 3

Packing List:
* 1 × IoT Touch Screen
* 1 × Antenna

Packaging Details:
* Weight: 0.8kg
