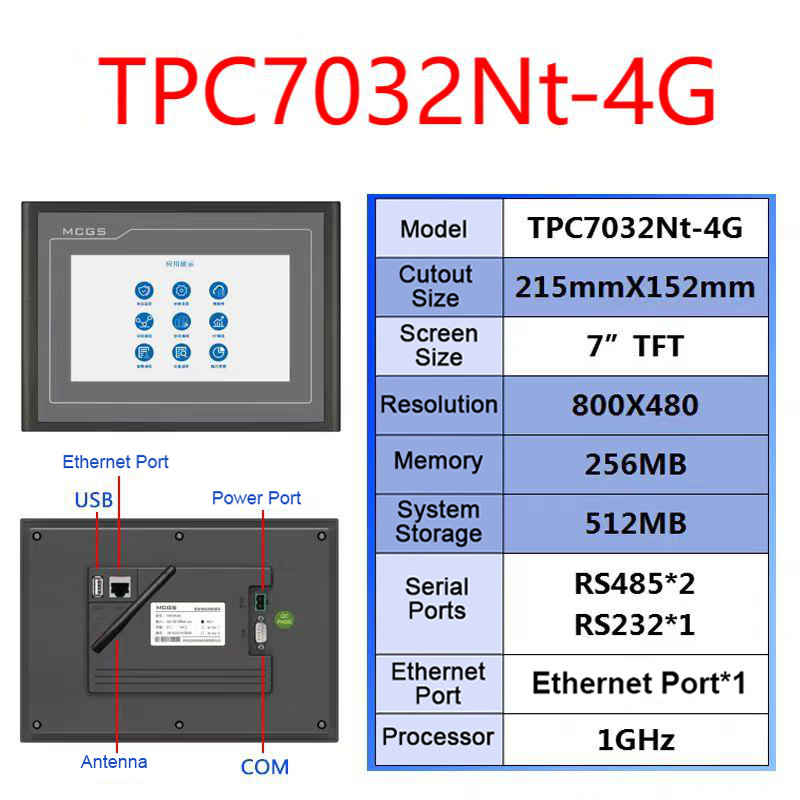

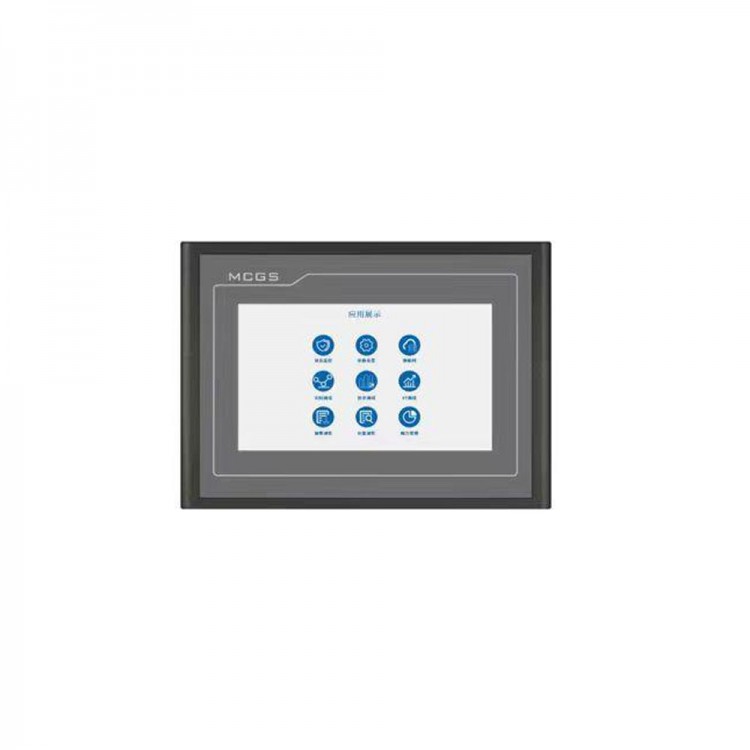

N Series MCGS TPC7032Nt-4G 7-Inch HMI IoT Screen Touch Screen with 215mm×152mm Cutout 256MB+512MB

N Series MCGS TPC7032Nt-4G 7-Inch HMI IoT Screen Touch Screen with 215mm×152mm Cutout 256MB+512MB

Description:
The 7-inch TFT LCD touch screen features a 4-wire resistive interface with 262K color display, 800×480 resolution, 250cd/m² brightness, and LED backlighting. Powered by a 1GHz processor, it includes 256MB memory, 512MB system storage, and runs McgsPro configuration software. Operating on 24V DC ±20% with a rated power of 6W, the device supports multiple external interfaces including serial ports, one USB Host port, and a 10/100M adaptive Ethernet port.

Specifications:
Product Features:
* LCD Display: 7-inch TFT
* Backlight Type: LED
* Display Colors: 262K
* Resolution: 800×480
* Brightness: 250cd/m²
* Touch Screen: 4-wire resistive
* Input Voltage: 24V DC ±20%
* Rated Power: 6W
* Processor: 1GHz
* Memory: 256MB
* System Storage: 512MB
* Configuration Software: McgsPro

External Interfaces:
* Serial Ports:
   * * Option 1: COM1 (RS232), COM2 (RS485), and COM3 (RS485)
   * * Option 2: COM1 (RS232) and COM9 (RS422)
* USB Port: 1× Host
* Ethernet: 1× 10/100M adaptive

Wireless Expansion:
* Optional WiFi Port: WiFi IEEE 802.11 b/g/n
* Optional 4G Port: Supports China Mobile, China Unicom, and China Telecom

Environmental Conditions:
* Operating Temperature: 0~50°C
* Storage Temperature: -10 to 60°C
* Operating Humidity: 5%-90% (non-condensing)

Product Specifications:
* Enclosure Material: Engineering plastic
* Overall Dimensions: 226mm × 163mm
* Panel Cutout Dimensions: 215mm × 152mm

Product Certification:
* Certification: Complies with CE standards
* Protection Rating: IP65 (front panel)
* Electromagnetic Compatibility: Industrial level 3

Packing List:
* 1 × Touch Screen
* 1 × Antenna

Packaging Details:
* Weight: 0.8kg
