Deluxe Version SP Racing F3 Flight Controller Integrate OSD with Protective Case for FPV Multicopter QAV250

Availability: In stock, usually dispatched in 1 business day

  • Price:$35.65
  • Price in reward points: 357 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $34.94 $34.22 $33.15 $31.73 Contact US
Quantity:

Deluxe Version SP Racing F3 Flight Controller Integrate OSD with Protective Case for FPV Multicopter QAV250

Note:
This version is Deluxe Version . The pin is not welded.

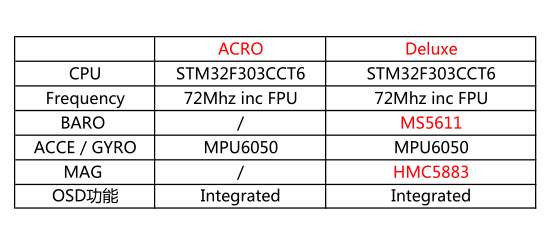

Features:

- 36x36mm board with 30.5mm mounting holes
- STM32F303 CPU, 72Mhz inc FPU
- High-Capacity Flash
- MPU6050 accelerometer/gyro
- MS5611 barometer
- HMC5883 compass

- 2x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
- 1x 4pin JST-SH socket for SWD debugging
- 1x 5pin JST-SH socket for Flash firmware and Configuration (Connect to the CP2104 uart to usb tool)
- 8x 3pin though-holes for pin headers for ESC/Servo connections
- 4x 2pin though-holes for pin headers for 1x serial port and i2c port
- 8x 1pin though-holes for pin headers for battery voltage/buzzer/Video in/Video out

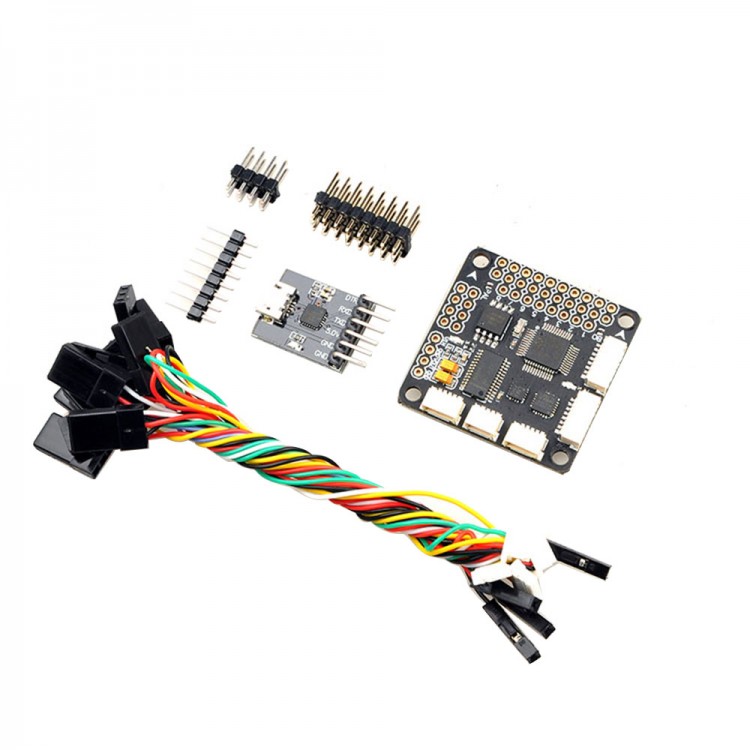

Package included:
- 1 x SP Racing Deluxe Version flight controller integrate OSD
- 1 x Protective case
- 1 x Programmer
- 4 x Connection cable
- Pins
