| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $73.73 | $72.22 | $69.96 | $66.95 | Contact US |

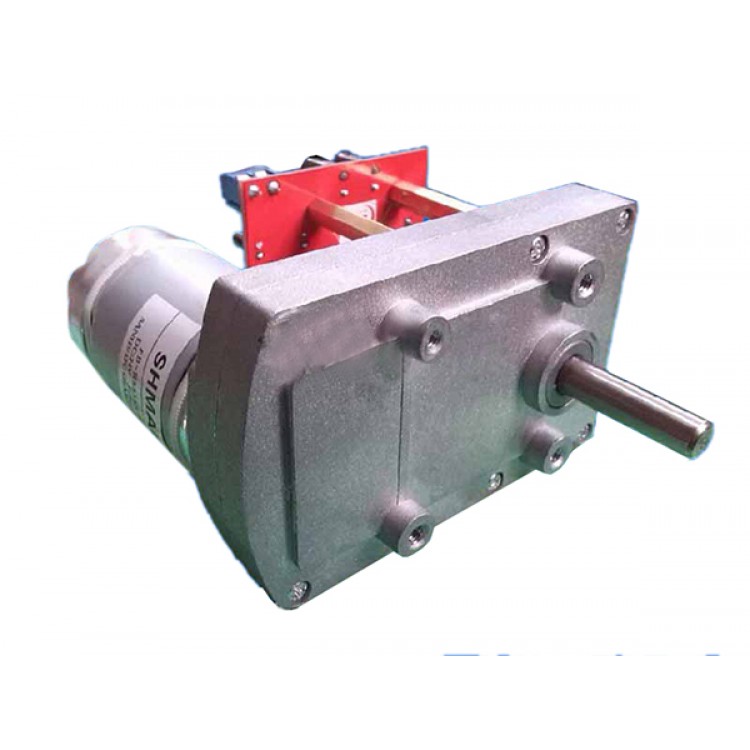

DH-02B 380KG/CM Large Torque 270 Degree Max Servo Rotary Servo Robot Mechanical Arm 12V-24V
Description:
- 43A large current driving chip
- 12V-24V wide voltage power supply
- Servo model: DH-02B
- Unload current: <500mA
- Large torque: 380kg.cm(24V), 4148N.cm(24V), 210kg.cm(12V), 2224N.cm(12V)
- Angular speed: 1s/60°, 24V 2.0s/60°,12V
Rotary angle: 270 degree max, 0-270 degree
Input mode:
- PWMIN is PWM pulsing signal (remote controller, multi channel servo controller, single chip machine)
- ADIN is analog voltage signal (potentiometer)
Pulsing signal input range:
- 0.5ms-2.5ms is suitable for all multi channel servo controller, 1ms-2ms multicopter remote controller, single chip programme, Arduino
Specs:
- Voltage signal input range: 0-5V
- Control precision: 0.32degree
- Weight: 530g
- Gear material: steel
- Size: 95.5mm X 60.5mm X 102.6mm
- Suitable for medium large size robot, mechanical arm, or large power large torque controlling aera
