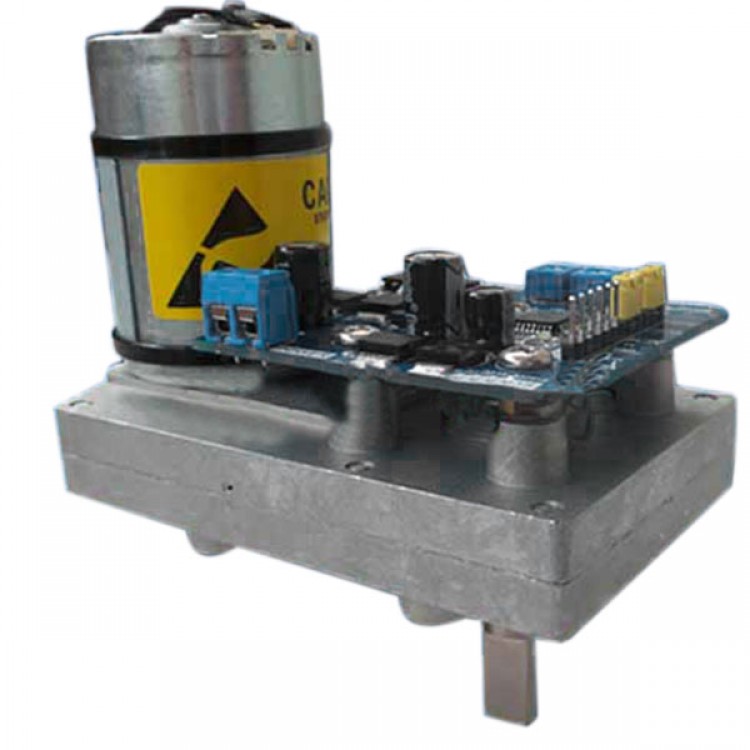

DH-03S Super Large Torque Alloy Servo 12V/ 24V/ 180KG.CM for Large Robot Mechanical Arm
Parameters:
- Working voltage: 12V-24V DC
- Unload current: <500mA
- Max torque:
180kg.cm(24V)
1764N.cm(24V)
90kg.cm(12V)
882N.cm(12V)
- Angular speed:
0.12/60°(0.12s for turning 60 degree), 24V
0.24s/60°(0.24s for turning 60 degree), 24V
- Rotary angle: 300 degree MAX
- Input mode: PWMIN is PWM impulse signal, ADIN is analog voltage signal
- Impulse signal input range: 0.5ms---2.5ms suitable for all multiple channel servo controller, 1ms-2ms remote controller, single chip machine, Arduino
Voltage signal input range: 0---5V
- Controlling precision: 0.5 degree
- Weight: 530g
- Material: steel
- Size: 95.5*60.5*102.6mm
