  • ASMC-01B Super Large Torque Alloy Servo 12V/24 /180KG.cm Robot Mechanical Arm

ASMC-01B Super Large Torque Alloy Servo 12V/24 /180KG.cm Robot Mechanical Arm

Availability: In stock, usually dispatched in 1 business day

  • Price:$88.90
  • Price in reward points: 889 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $87.12 $85.34 $82.68 $79.12 Contact US
Quantity:
Buy it now Add cart

You might like

WINGXINE ASME-SDB 180Kg.cm Self-locking Worm Servo RS485 Bus Servo Supports PWM and Voltage Control

WINGXINE ASME-SDB 180Kg.cm Self-locking Worm Servo RS485 Bus Servo Supports PWM and Voltage Control

$47.87

(0)
DH-03S Super Large Torque Alloy Servo 12V/ 24V/ 180KG.CM for Large Robot Mechanical Arm

DH-03S Super Large Torque Alloy Servo 12V/ 24V/ 180KG.CM for Large Robot Mechanical Arm

$72.88

(0)
DC 12V/ 24V DH-03X Large Torque Alloy Servo 180kg/cm 160A Mechanical Arm for Robot RC

DC 12V/ 24V DH-03X Large Torque Alloy Servo 180kg/cm 160A Mechanical Arm for Robot RC

$34.13

(0)
WINGXINE 300Kg.cm Bus Servo High Torque Servo ASMG-MDA with RS485 CAN Communication Control Ports

WINGXINE 300Kg.cm Bus Servo High Torque Servo ASMG-MDA with RS485 CAN Communication Control Ports

$89.31

(0)
DHEA-CB Large Servo High Torque Digital Servo Alloy Gears Magnetic Encoding 360° 12-24V 110KG/CM

DHEA-CB Large Servo High Torque Digital Servo Alloy Gears Magnetic Encoding 360° 12-24V 110KG/CM

$41.04

(0)
TRS-380 Super Large Torque Alloy Servo 24V 380kg.cm for Large Robot Mechanical Arm

TRS-380 Super Large Torque Alloy Servo 24V 380kg.cm for Large Robot Mechanical Arm

$75.40

(0)
WINGXINE ASMC-LQB 360° Magnetic Encoder Servo 60Kg Worm Gear Servo for Robot Arm Valve Control

WINGXINE ASMC-LQB 360° Magnetic Encoder Servo 60Kg Worm Gear Servo for Robot Arm Valve Control

$28.03

(0)
WINGXINE 400Kg.cm Bus Servo High Torque Servo ASMG-MDB with RS485 CAN Communication Control Ports

WINGXINE 400Kg.cm Bus Servo High Torque Servo ASMG-MDB with RS485 CAN Communication Control Ports

$89.31

(0)

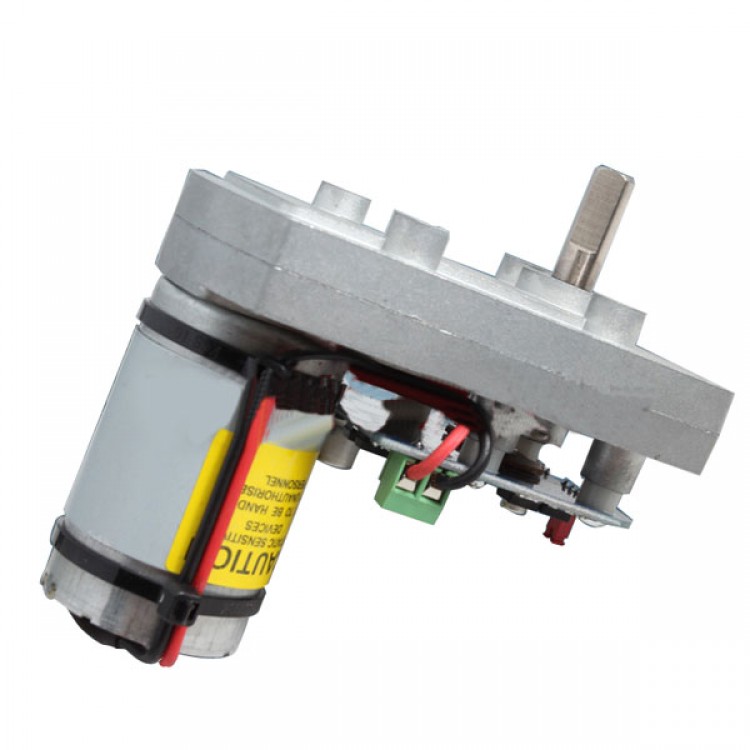

ASMC-01B Super Large Torque Alloy Servo 12V/24 /180KG.cm Robot Mechanical Arm

Specification:
- Operating voltage                   :    24V(DC)
- Limit voltage                            :    12V to 30V(DC)
- No-load current                       :    <30mA
- Maximum torque                      :     180kg.cm  （24V）
- No-load speed                         :  0.5sec / 60  Degree（adj）
- Rotation angle                          :    0° to 270 ° (adj)
- Input signal pulse width          :    0.5 to 2.5ms
- Input Mode                                 : pulse signal or analog voltage signal
- Voltage signal input range      :  0V to +5 V
- Control accuracy                       : 0.32 °
- Weight                                        :  530g
- Gear Material                             : Steel
- Dimensions                              : 95.5mm X 60.5mm X 102.6mm
- Applications: medium and large robots, robots and other high-power high-torque control.

Package:
- 1pcs high-torque servos
- 1pcs signal line
