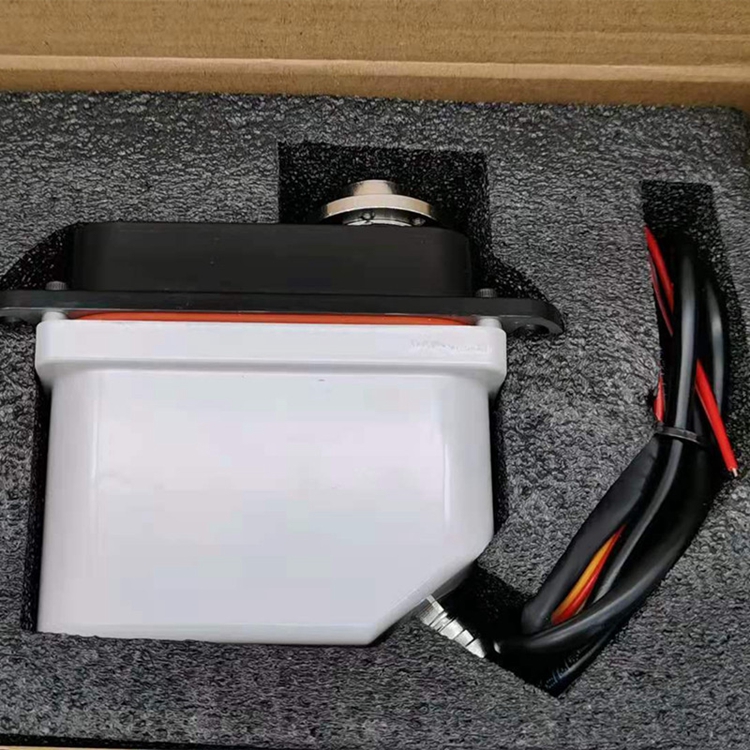

DHMCU DHPS380 Digital Servo High Torque Servo For Model Airplane Smart Car Smart Steering Industry

DHMCU DHPS380 Digital Servo High Torque Servo For Model Airplane Smart Car Smart Steering Industry

Download Product Specifications:
http://pan.baidu.com/s/1kUZusM7
Password: apdt

Video Description:
https://v.youku.com/v_show/id_XNTEyNjQyNDU1Ng==.html

Advantages:
- STM32 main control, FOC plus PID algorithm, position loop, speed loop, current loop, three-loop serial PID, and more accurate magnetic encoder feedback positioning.

Product Features:
* Suitable for servo controller, model airplane remote control, analog voltage control
* Alloy gear high torque motor
* Aluminum alloy gearbox is ultra-lightweight
* Easy to install, durable, reliable, stable and practical

Application Range:
* Large robots, mechanical arm power joints
* Industrial robot automation
* Precise control of valve angle, large camera pan/tilt
* Large remote control car model, remote control ship model

Technical Parameters:
- Controllable angle: 0.5-2.5MS (500-2500US) 360°
- Switchable function: 1. Can be switched to 1.0-2.0MS (1000-2000US) 360°. 2. The direction of rotation can be switched
- Protection: 1. With reverse connection protection. 2. With over-current protection (only to protect the circuit board, not the gear)
- Adjustable parameters: adjustable angle, adjustable middle position
- Shaft diameter: 12MM (spline shaft)
- Limit torque: 400KG/CM (the limit of broken gear)
- Locked-rotor torque: 380KG/CM (short-term use torque)
- Conventional torque: 140KG/CM (continuous working torque)
- Shell material: aluminum alloy
- Gear material: steel gear + aluminum alloy
- Waterproof level: IP67
- Power supply voltage: 24V
- Power supply current: 5A
- Speed: 0.5S/60°
- Weight: 880g

Attention:
Please test and use it by yourself in various dangerous use occasions. Our company is not responsible for the consequences of various application scenarios!

Rated Parameters:
- Rated voltage: DC 12-24V (12V/MIN-30V/MAX)
- No-load current: <500MA (current limit 5A, recommended to use 10A switching power supply or battery. Batteries not included)
- Feedback method: magnetic encoding feedback
- Limit angle: switchable: 1.0-2 MS control mode: 360 degrees (adjustable electronic limit). Default: 0.5-2.5 MS control mode: 360 degrees (adjustable electronic limit). Adjustable middle position
- Control method: 1.0-2.0MS pulse mode: suitable for the control of the model airplane remote control receiver. 0.5-2.5MS pulse mode: suitable for multi-channel servo controller control (pulse frequency: 50-333HZ)
- Material: Gear and shaft: Alloy steel. Gear box body: cast aluminum
- Motor type: DC brushed motor
- Weight: 880g
- Theoretical accuracy: 0.087 degrees (12 bits)
- Dimensions: 132*119.6*55.2mm
- Mechanical life: >6000000 times/normal torque
- Conventional torque: 140KG.CM
- Maximum torque: 380KG.CM
- Speed: 24V 0.5S/60°

Package Included:
- 1 x Servo
- 1 x Bag of Accessories

Note:
- Battery is not included.

Can replace servo for Japan Seiko. Weight-bearing video:
https://v.youku.com/v_show/id_XNDk1MTIzMDk0MA==.html
https://v.youku.com/v_show/id_XNDk1MTIyNzU5Mg==.html

Demonstration Video:
https://v.youku.com/v_show/id_XNDQ4MDk0NzcxMg==.html?spm=a2h3j.8428770.3416059.1

1. A Angle adjustment knob: 0-360 degree angle adjustment. The clockwise rotation angle becomes larger, and the counterclockwise rotation angle becomes smaller. The default maximum is 360 degrees.
2. M middle position adjustment knob: press the middle position adjustment button, the servo enters the middle position adjustment mode. At this time, adjust the M knob, the rudder will follow the rotation, after reaching the proper position, press the middle button again to exit the middle position adjustment, so that the middle position of the servo is set. After the servo center is set, it is permanently saved and will not be changed unless the setting is changed.
3. 1MS mode: The steering gear defaults to 2MS mode, that is, input 0.5-2.5MS, and the steering gear will turn 360 degrees. When the two pads of 1MS are connected together, it is in 1MS mode, and the servo can also turn 360 degrees.
4. ZF reverse switch: when the two ZF pads are connected together, switch to reverse rotation mode, that is, under the condition of the same signal, the original remote control stick to the left and the servo to the right Rotate. After switching, the joystick of the remote control turns to the left, and the servo turns to the left.

Warning:
The S terminal is the signal input terminal. The input voltage is 3.3-5V. If it exceeds 5V, the servo may be burnt. The power supply of the servo is 12-24V, and the maximum can reach 30V. The lower the power supply voltage, the lower the speed and torque of the servo. It is equipped with power reverse connection protection.
