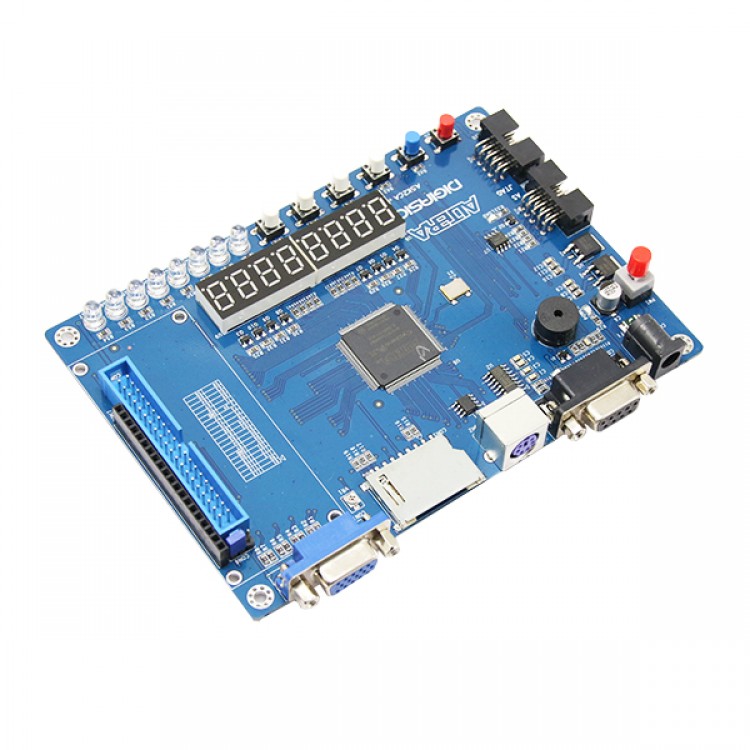

DIGIASIC FPGA Altera CycloneII EP2C5T144 AlteraCycloneII Development Board EP2C5T144C8

Availability: Out Of Stock

  • Price:$53.99
  • Price in reward points: 540 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $52.91 $51.83 $50.21 $48.05 Contact US
Quantity:
Buy it now Add cart

You might like

DIGIASIC FPGA Altera CycloneII EP2C5T144 AlteraCycloneII Development Board EP2C5T144C8

DIGIASIC FPGA Altera CycloneII EP2C5T144 AlteraCycloneII Development Board EP2C5T144C8

$48.90

(0)
EP2C5T144 ALTERA FPGA CycloneII Minimum System Learning Board Development Board

EP2C5T144 ALTERA FPGA CycloneII Minimum System Learning Board Development Board

$21.70

(0)
ALTERA FPGA CycloneII EP2C5T144 Mini Development Board

ALTERA FPGA CycloneII EP2C5T144 Mini Development Board

$31.31

(0)
Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM

Altera EP2C8Q208 NIOSII FPGA Board Nor Flash+SDRAM

$73.99

(0)
USB Blaster Programmer W/Cable for ALTERA FPGA CPLD JTAG Development Board AS PS

USB Blaster Programmer W/Cable for ALTERA FPGA CPLD JTAG Development Board AS PS

$8.90

(0)
FPGA Altera CYCLONE IV Core Board Development Board EP4CE15 FPGA Learning Module

FPGA Altera CYCLONE IV Core Board Development Board EP4CE15 FPGA Learning Module

$97.90

(0)
BladeRF 2.0 Micro xA4 SDR Board RF Development Board 47MHz-6GHz USB3.0

BladeRF 2.0 Micro xA4 SDR Board RF Development Board 47MHz-6GHz USB3.0

$984.94

(0)
ALTERA EP2C8Q208 FPGA Nios II Core Board Development Board Learning Board

ALTERA EP2C8Q208 FPGA Nios II Core Board Development Board Learning Board

$58.65

(0)

DIGIASIC FPGA Altera CycloneII EP2C5T144 AlteraCycloneII Development Board EP2C5T144C8


Features:
    • 1 x FPGA Altera Cyclone EP2C5T144 Devlopment Board
    • 1 x Power Supply
    • 1 x CD-ROM

1) Cyclone Core: EP2C5T144

2) EPCS4 configuration chip

3) configuration mode: JTAG and AS

4) The board of the active core clock 50Mhz

5) 8-bit LED light-emitting diodes

6) Block-board RS232 serial port, through the MAX3232 is converted to 232 level can be connected directly to the computer serial port

7) 8-bit LED digital tube

8) buzzer

9) 4 separate buttons

10) a total of two PS/2 keyboard and mouse interface

11) LCD1602 interfaces

12) AT24C04 IIC Interface

13) 3bit VGA interface

14) 104mm*138.5mm

15) Onboard 2A resettable fuse can prevent over-current device to protect the board

16) 2.54mm double needle raises 1602 LCD's IO pins (a total of 12, sharing the same 1602LCD IO pin)

17) Onboard 1M bit SRAM (Model CY7C1019VC33)

18) offers two power supply, on-board power supply selector switch:

  • USB power supply
  • 5V DC external power supply
